2.2 Overview of event management

JP1/IM - Manager centrally manages the various events that occur in the system as JP1 events.

JP1 events are controlled by the JP1/Base event service and are managed by the event database specific to JP1/Base.

Figure 2‒3: Overview of JP1 event management

When you use the integrated monitoring database provided by JP1/IM - Manager, the event base service of JP1/IM - Manager acquires JP1 events from the JP1/Base event database. JP1/IM - Manager applies JP1/IM - Manager-specific information and stores the acquired JP1 events in the integrated monitoring database. By accessing this JP1 event information in the integrated monitoring database, JP1/IM - Manager can perform processing of various kinds based on the information.

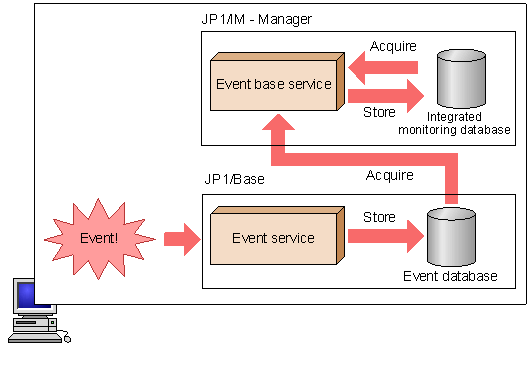

Figure 2‒4: Overview of JP1 event management with the integrated monitoring database

For details about how to manage JP1 events on remotely monitored hosts, see 7.6 Managing remotely monitored hosts.
