1.3.4 Error detection and reporting

JP1/IM - Manager supports automated actions as a means of detecting and reporting problems in the system. An automated action is the automatic execution of a command on a host managed by JP1/IM - Manager when a particular JP1 event is received. Commands for sending an email or making a telephone call can be executed as automated actions, notifying the administrator of any problems occurring in the system.

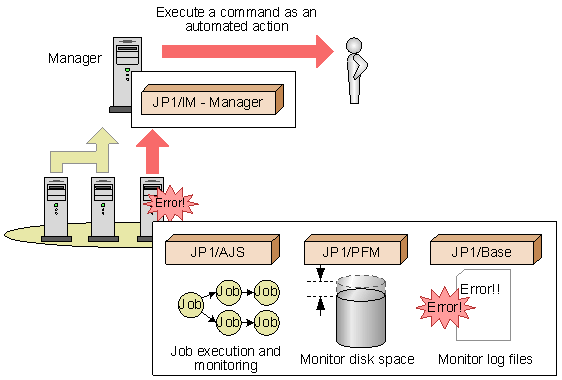

Figure 1‒10: Error reporting using automated actions

Using the Central Scope, the location of a problem can be represented visually in a tree view or map format, allowing on-the-spot judgment of how the problem in the system might affect business operations.
