12.2.1 getlog_server.bat (acquiring the failure information without the database backup from the server)/getdetaillog_server.bat (acquiring the failure information with the database backup from the server)/getlog_client.bat (acquiring failure information from a client)

Organization of this subsection

(1) Function
(2) Executor
(3) Format
(4) Arguments
(5) Execution results
(6) Return codes
(7) Output message (Output destination: stdout)
(8) Notes on using the command

(1) Function

Acquire failure information of JP1/DH - Server from the server or client machine. These commands enable you to acquire the following information in the machine environment where JP1/DH - Server operates:

OS information
Hardware information
Running process
Network configuration
Installed application
Event logs (For applications and system)
Setting information for Internet Explorer
Setting information for Java
Log information for linked products
Configuration files for JP1/DH - Server
Database information

Before using the getlog_client.bat command, change the following item in the batch file:

rem ----------------------------
rem  User-set items
rem ----------------------------
set SERVERNAME=FQDN-of-JP1/DH-Server-machine

Example:

rem ----------------------------
rem  User-set items
rem ----------------------------
set SERVERNAME= jp1dhserver.foo1.foo2,co.jp

To Page Top

(2) Executor

A user with a built-in Administrator account or with Administrator permissions executes the command from the command prompt.^#

#: Do not execute a command directly. Use the command prompt to execute a command.

To Page Top

(3) Format

To acquire failure information from the server machine:

getlog_server.bat or getdetaillog_server.bat DB-password

To acquire failure information from a client machine:
```
getlog_client.bat
```

To Page Top

(4) Arguments

DB-password

Specify the database password.

The default value for the database password is set to p@ssw0rd.

To Page Top

(5) Execution results

The files with the command execution results are stored in the logdata folder created immediately below the current directory where the command is executed.

The following figures show the configuration of output files.

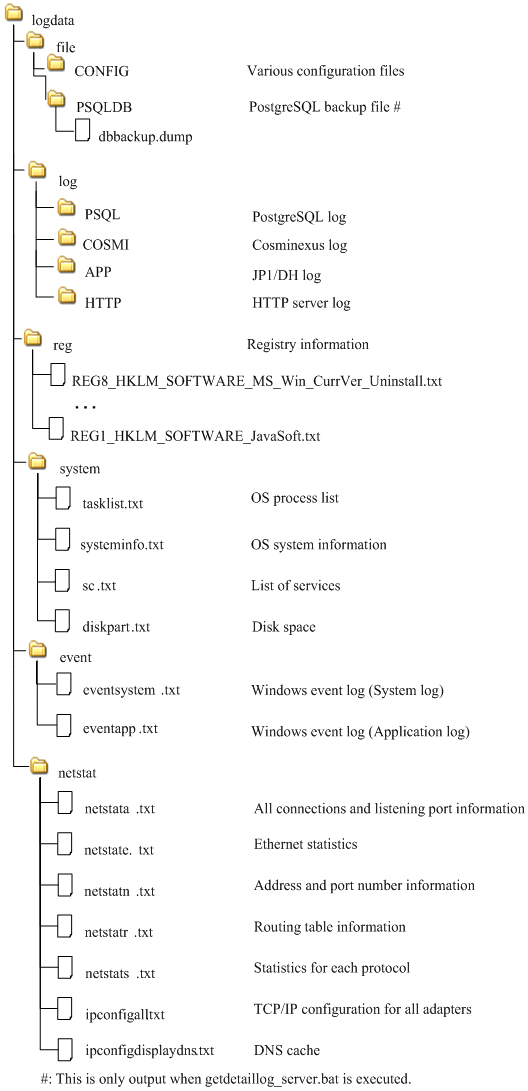

Figure 12‒1: Example of the output files (When the command is executed on the server)

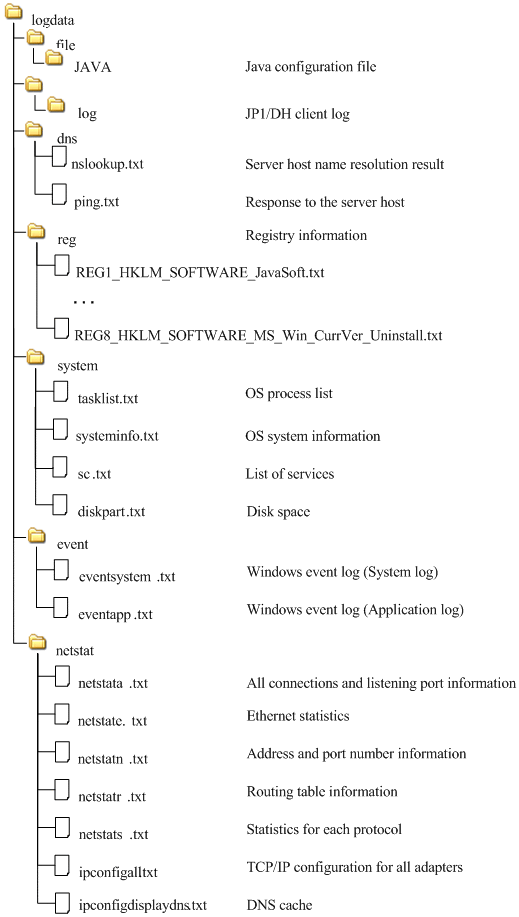

Figure 12‒2: Example of the output files (When the command is executed on a client)

Note that some of the files to be output in Linux are different from those in Windows. Files with differences are as follows:

Output destination of registry information

logdata/reg/.HTC_xxxx.inf

Note: xxxx represents a value output differently depending on your product.
Output destination of \logdata\netstat\ipconfigall.txt (a file that includes TCP/IP configuration for all adapters)

logdata/reg/ifconfiga.txt
\logdata\netstat\ipconfigdisplaydns.txt (a file that includes DNS cache) is not output.
Output destination of the event log data

logdata/event/messages

logdata/event/messages-yyyymmdd

In Linux, corresponding system log data is acquired.

To Page Top

(6) Return codes

Return code	Description	Operation after an event occurrence	Occurrence condition
`0`	Normal	--	Information is collected successfully.
`4`	Warning (information level)	Interrupts command processing.	Execution of command is canceled during permission confirmation response for collecting information. Execution of command is canceled during folder deletion confirmation response.
`8`	Error	Interrupts command processing.	Information collection failed.
`16`	Error	Interrupts command processing.	A command is executed without the database password specified as the argument. The backup of the database by using the backup command failed (only when the `getdetaillog_server.bat` command is executed).

To Page Top

(7) Output message (Output destination: stdout)

No.	Message	Return code	Operation after an event occurrence	Action to be taken by the operator	Occurrence condition
1	Failure information will be collected.	--	Starts command execution.	None	When a command is executed
2	Successfully collected the failure information. Press any key.	`0`	Terminates command execution.	None	When information is collected successfully
3	Did not successfully collect the failure information. Check the following items: Does the user who executed the command have Administrator permissions? Does the user who executed the command have write permission for the output folder?	`8`	Terminates command execution.	Check the following and re-execute the command: The user executing the command has Administrator permissions. The user executing the command has write permission to the output destination folder.	When collecting information failed
4	Did not successfully collect the failure information. Could not find the configuration file to be copied.	`8`	Terminates command execution.	Make sure that the collection target file exists.	When the collection target configuration file is not found
5	An output folder for the collected information exists. Overwrite the output information? (y/n)	--	Waits for user response.	Select y to continue execution, or n to cancel execution.	When a log output destination folder already exists
6	Canceled command execution. Press any key.	`4`	Terminates command execution.	If you selected n in No. 5, delete or move the log output destination folder, and then re-execute the command.	When n is selected in No. 5
7	Specify the DB password in the argument. Press any key and try again.	`16`	Terminates command execution.	Specify the database password as the argument, and then re-execute the command.	When a command is executed without the database password specified as the argument
8	Did not successfully collect the failure information. Press any key and try again.	`16`	Terminates command execution.	Check the following and re-execute the command: The database service (`JP1_DH_DATABASE_SVR`) is running. The password specified in the command is correct. The content of the database error message that was output immediately before this message is checked and the cause of the error is removed.	When backing up the database with the backup command failed (Only when the `getdetaillog_server.bat` command is executed)

Note: If an error occurs within the database, the error message described above is output after an error message is output by the database.

To Page Top

(8) Notes on using the command

Do not execute a command directly. Use the command prompt to execute a command.

If you have enabled UAC (User Account Control) in the operating system, use one of the following ways to execute a command:

Log in as a built-in Administrator user, start the command prompt, and then execute a command.
Log in as a user with Administrator permissions, start the command prompt by clicking Run as Administrator, and then execute a command.
Execute a command from a shortcut for the command prompt with the elevated privileges created at the time of JP1/DH - Server installation.^#

#

If you use a command prompt in this way in Windows Server 2012, Windows Server 2012 R2 or Windows Server 2016, you need to install Microsoft .NET Framework 3.5. For details about how to install Microsoft .NET Framework 3.5, see D. Installing .NET Framework 3.5.

If the command is interrupted due to an error in the database, a backup file with a size of 0 bytes is created.

In an execution environment such as the ones described below, acquiring failure information might take a while.

Where there are many connections to the network

If the machine has many definitions of network connections, acquiring network configuration information might take time.
Where there are many output logs

If you execute the getlog_client.bat command in the 32-bit command prompt on a client with a 64-bit operating system, you cannot acquire the information about the 64-bit application. Make sure that you execute the command in the 64-bit command prompt.

Simultaneous executions of commands on the same machine are not supported.
