2.1.1 Example configuration where a JP1/DH - Server machine acts as an access point

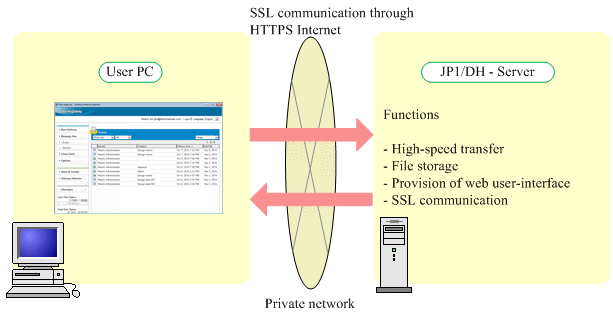

This subsection describes a configuration where a single server machine has both the JP1/DH application server and web server installed and configured, and can be directly accessed from a web browser on a client machine.
|
|
![[Figure]](GRAPHICS/ZU023000.GIF)
- Organization of this subsection
(1) Features
This configuration can be built and operated by using just a single JP1/DH - Server machine. It is easy to build and operate, but can be adopted only if JP1/DH - Server is used in your private network. If you want to operate JP1/DH - Server on a network connected to the Internet, from a security point of view, consider the other configurations described in 2.1.2 Example configuration for working with a reverse proxy with SSL traffic analyzer or 2.1.3 Example configuration for working with a reverse proxy with SSL traffic forwarding.
(2) Software requirements for each machine
Each machine requires the following software:
-
Client machine
A client machine requires a web browser and a JP1/DH client program.
-
JP1/DH - Server machine
The machine for installation of JP1/DH - Server. The following pieces of software are required:
-
JP1/DH Web application server
-
JP1/DH Web server
-
