2.4.1 Creating domains (system administrator)

To manage users and groups on JP1/DH - Server, first create domains. In this example, the domain Hitachi G will be created.

Prerequisites

• To perform this task, the system administrator logs in to JP1/DH - Server as admin.

• Client environments must be checked beforehand.

Procedure

1. Log in to JP1/DH - Server as admin.

   Important

   If client environments have not been checked yet according to the descriptions in 2.2 Notes on logging in to JP1/DH - Server for the first time, check the environments.

2. In the sidebar area, select Users & Groups.

   The Users & Groups window appears in the content area.

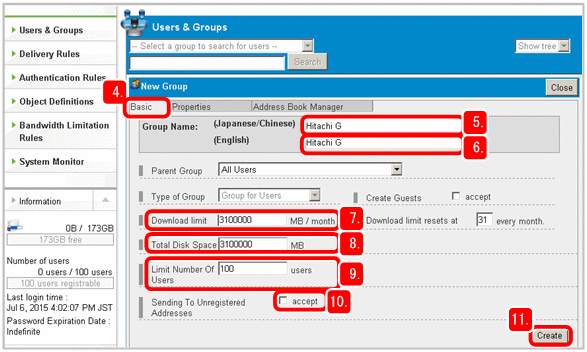

3. Click All Users, and then select New Group.

   The New Group window appears.

4. Select the Basic tab.



5. In Group Name: (Japanese/Chinese), enter Hitachi G.

   The group name specified here is displayed in the Japanese and Chinese windows. You cannot change the group name after the group is created.

6. In Group Name: (English), enter Hitachi G.

   The group name specified here is displayed in the English window. You cannot change a group name after the group is created.

   Note

   A domain ID is the value that is obtained by deleting spaces from the group name specified for Group Name: (English), replacing uppercase characters with lowercase characters, and then adding an at mark (@) to the beginning. This domain ID is part of the user IDs for the users who are allocated under the domain. Users of JP1/DH - Server use these user IDs to log in to JP1/DH - Server.

   Example of a user ID of a user who is allocated under a domain:

   Domain name (English): Hitachi G

   Hitachi Taro's user ID: HitachiTaro

   Hitachi Taro's user ID for JP1/DH - Server: HitachiTaro@hitachig

7. In Download limit, specify a data size.

   Enter the download limit for the entire domain per month, in MB.

   This example assumes that the total size of delivery data per day is 100.0 GB.

   In the Download limit text box, specify 3100000.

8. Specify Total Disk Space.

   Enter the disk space available for the entire domain, in MB.

   This example assumes the following conditions: The number of deliveries that are generated per day by the users who are allocated under the domain is 100. The maximum delivery data file size is 1,000.0 MB. The storage period is 31 days.

   In the Total Disk Space text box, specify 3100000.

9. Specify the maximum number of JP1/DH - Server users.

   Set the maximum number of users who can be registered for the entire domain.

   In the Limit Number Of Users text box, specify 100.

10. In Sending To Unregistered Addresses, verify that the accept check box is not selected.

    If this check box is selected, clear it.

11. Click the Create button.

    The domain is created.

Postrequisites

Set up the system administrator and domain-content managers as representative users in JP1/DH - Server.

Related topics

• 2.2 Notes on logging in to JP1/DH - Server for the first time

• 2.3 Planning the domain content structure and management policy (system administrator)

• 2.4.2 Setting up representative users (system administrator)
