4.2.4 Log Information window

The figure below shows an example of a window that displays from the Operations-Manager Console another host's log information. This subsection describes the functions that can be used in the Log Information window.

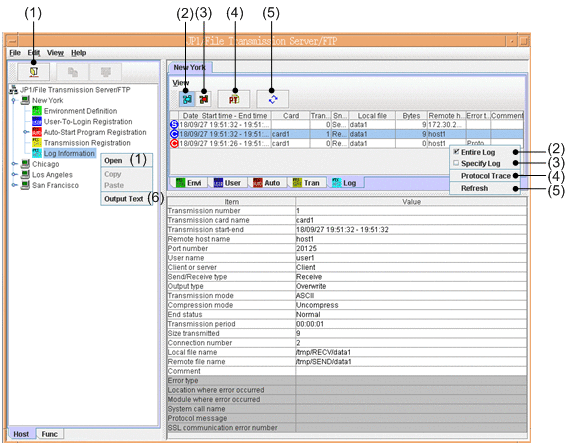

Figure 4‒6: Log Information window

1. Click , or right-click in the tree window: Opens host information.

2. Click , or right-click in the list window: Displays all log information.

3. Click , or right-click in the list window: Displays specific log information.

4. Click , or right-click in the list window: Displays protocol trace.

5. Click , or right-click in the list window: Refreshes information.

6. Right-click in the tree window: Outputs log information as text.

About the display of protocol trace information

The Log Information window displays information about all traces transmitted by using the applicable connection number.

About text output

A sample format for text that is output is set up during installation. You use this format file at the Operations-Manager Console host.

The format file to be used corresponds to the value set for the LANG environment variable.

You can edit the format file to create a desired format. For details about how to edit the format file, see E. Format Files Used for Output of Definition Information.

About the transmission size

Operations-Manager Agent versions earlier than 10-00 do not support a transmission size of 4 gigabytes or greater. Consequently, if the Operation-Manager Console is connected to an Operations-Manager Agent earlier than version 10-00, and if an attempt is made to reference a transmission log whose transmission size is 4 gigabytes or greater, the displayed value will be smaller than the actual transmission size.
