3.15.1 How to specify

You use a text editor to define each function in the definition file (ftshostenv.conf) according to the definition method described below.

Specify one definition per line in this definition file. A maximum of a 2,048 bytes of characters can be specified per line. Use the space or tab as the delimiter between a definition name and the colon (:), and as the delimiter between the colon (:) and a value. A definition name can be preceded by spaces or tabs. Any characters following a hash mark (#) through a linefeed are treated as a comment.

Table 3‒19: Definition names and values that can be specified in the definition file (ftshostenv.conf)

Definition name	Description	Value
specify client localhost	Enables specification of the FTP client's local IP address.	[YES|NO] <<NO>>
response hostname reverse lookup	Sets the FTP server host name in a response message sent by the FTP server to the address that accepted the connection.	[YES|NO|omitted] <<omitted>>
jp1event host	Specifies the destination of JP1 events. When you specify an IP address, you can specify an IPv4 or IPv6 address.	[host-name|IP-address|omitted] <<omitted>>
jp1event trans is same	Specifies whether to send JP1 events indicating the termination of file transmission to the destination specified by jp1event host.	[YES|NO]<<NO>>

The attributes of this definition file are shown below.

Table 3‒20: Attributes of the definition file (ftshostenv.conf)

Item name	Setting
File name	ftshostenv.conf
Directory name	/var/opt/jp1_fts/sys
Owner	Superuser
Access permission	Owner: r

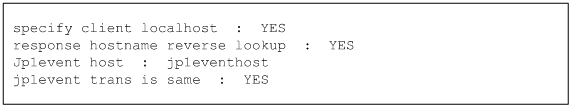

The following figure shows an example of this definition file:

A sample definition file is stored in the following directory:

• /var/opt/jp1_fts/sys/ftshostenv.conf.model
