3.8.1 Outputting definition information as text

To output definition information as text, you use the File menu in each registration window.

You can select one of the following text output formats:

• Output text

  This format outputs information to a specified file. If the specified file already exists, its contents are overwritten.

• Append text

  This format adds the information after the last line of the specified file.

To output definition information as text:

1. Display the window in which the information to be output was registered.

2. From the File menu, choose Output To Text File or Append To Text File.

   A dialog box for specifying the output destination file is displayed.

3. Specify the output destination file and then click OK.

   The following figures show a format file for auto-start programs and an example of text output.

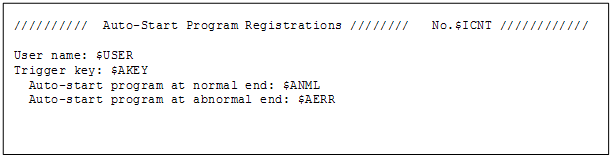

   Figure 3‒2: Format file

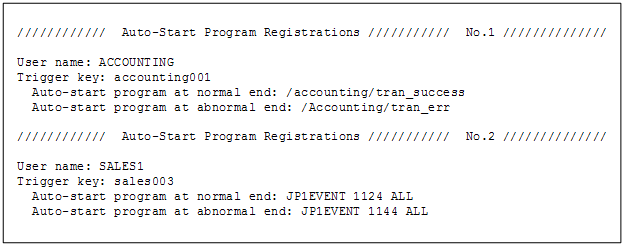

   Figure 3‒3: Example of text output
