3.5.2 Executing transmission by entering a transmission card (Enter Information method of file transmission)
You can use an existing transmission card and edit its contents, and then transmit. The Enter Information method of file transmission does not change the registered contents of the used transmission card.

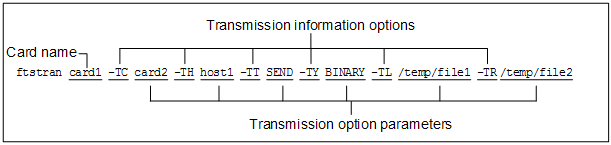

The following figure shows an example of using a command to execute the Enter Information method of file transmission:
![[Figure]](GRAPHICS/FU031600.GIF)
- This example changes the following transmission information on card1 and then executes transmission:
-
-
-TC: The card name is card2.
-
-TH: The connection-target host name is host1.
-
-TT: The send/receive type is SEND.
-
-TY: The transmission mode is BINARY.
-
-TL: The local file name is /temp/file1.
-
-TR: The remote file name is /temp/file2.
-
For details about the ftstran command, see ftstran - executes transmission in 6. Commands.
