1.2.2 Controlling InfoPackage or process chains

Figure 1-2 shows a typical system configuration for controlling InfoPackage or process chains in a SAP BW system.

The example configuration shown below consists of the following machines:

• Machine running JP1/AJS3 for EAP, JP1/AJS, and JP1/Base (external machine A)

• Machine running JP1/AJS3 for EAP (external machine B)

• Application server

• Machine running SAP front-end software (SAP BW client machine)

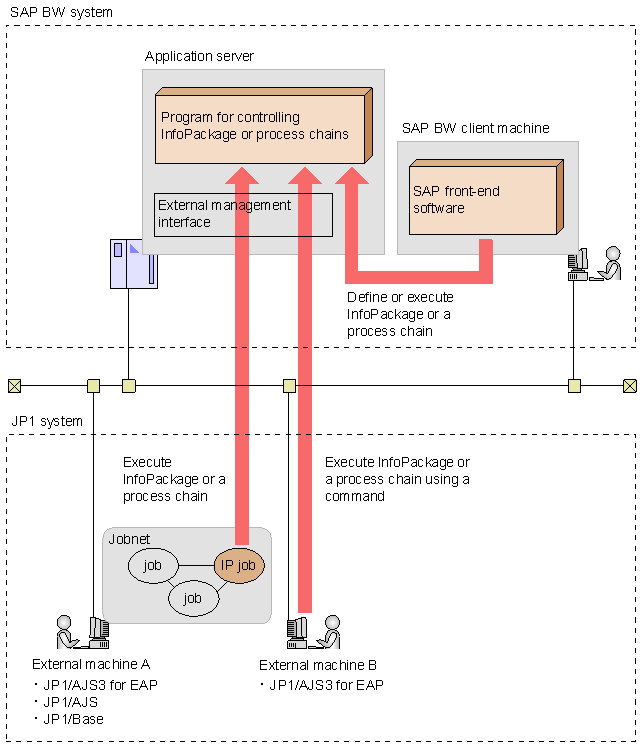

  Figure 1‒2: Typical system configuration for controlling InfoPackage or process chains in a SAP BW system
