E.2 Migration procedure from the 64-bit version of JP1/AJS3 - Definition Assistant to the 32-bit version

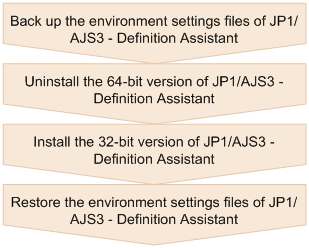

This section describes how to migrate the 64-bit version of JP1/AJS3 - Definition Assistant to the 32-bit version. The following figure shows the migration steps.
- Organization of this subsection
-
-
(1) Backing up the environment settings files of JP1/AJS3 - Definition Assistant
-
(2) Uninstalling the 64-bit version of JP1/AJS3 - Definition Assistant
-
(3) Installing the 32-bit version of JP1/AJS3 - Definition Assistant
-
(4) Restoring the environment settings files of JP1/AJS3 - Definition Assistant
-
(1) Backing up the environment settings files of JP1/AJS3 - Definition Assistant
File and folder names |
Description |
---|---|
DA_Path\conf\ajs2da.conf |
Environment settings file |
DA_Path\conf\ssl\rootcer |
Root certificate storage folder#1 |
DA_Path\conf\ssl\ajsda_nosslhost.conf |
Unencrypted communication host settings file#2 |
(2) Uninstalling the 64-bit version of JP1/AJS3 - Definition Assistant
Uninstall the 64-bit version of JP1/AJS3 - Definition Assistant. For details about how to do so, see 3.1.9 Uninstallation.
After the uninstallation is finished, delete all files and folders under the installation folder of JP1/AJS3 - Definition Assistant.
(3) Installing the 32-bit version of JP1/AJS3 - Definition Assistant
Install the 32-bit version of JP1/AJS3 - Definition Assistant. For details about how to do so, see 3.1.1 Installation.
(4) Restoring the environment settings files of JP1/AJS3 - Definition Assistant
Restore (recover) the environment settings files of JP1/AJS3 - Definition Assistant.
Manually copy the files and folders backed up in (1) Backing up the environment settings files of JP1/AJS3 - Definition Assistant to the restore destinations listed below.
File and folder names |
Description |
---|---|
DA_Path\conf\ajs2da.conf |
Environment settings file |
DA_Path\conf\ssl\rootcer |
Root certificate storage folder# |
DA_Path\conf\ssl\ajsda_nosslhost.conf |
Unencrypted communication host settings file# |
(5) Notes on migration
-
The model name of JP1/AJS3 - Definition Assistant varies depending on the number of bits of your Excel. Install the JP1/AJS3 - Definition Assistant version that corresponds to the number of bits of Excel you use.
-
The 64-bit version of Excel (Office) cannot be changed to the 32-bit version (Office). Therefore, if you want to change the number of bits of Excel (Office), you need to first uninstall the 64-bit version, and then install the 32-bit version of Excel (Office).
-
In the 32-bit version of JP1/AJS3 - Definition Assistant, the import and export functions are not available on the definition information management template in xlsm format. When you use the import and export functions, convert the definition information management template into xls format. However, you can edit the definition information management template in xlsm format.
-
Review the settings of environment setting parameters if necessary. For environment setting parameters available, see 3.2 Environment settings parameters.
