4.1.1 The window

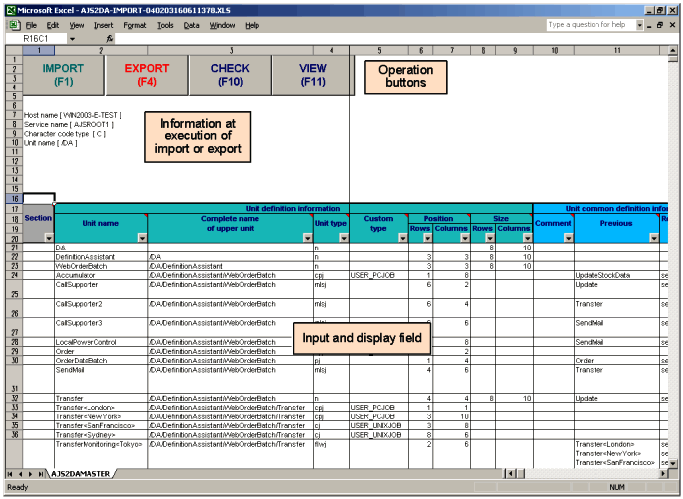

The following is a sample screenshot of the definition information management template.

Figure 4‒1: Sample screenshot of the definition information management template

The operation buttons are displayed at the top of the window, with the definition information input and display fields below. For imported or exported execution result files, the host name, service name, character code type and unit name are displayed immediately below the operation buttons. Note that any messages output in the definition information management template are displayed above the input and display fields.

Notes

Since the cell view method in the definition information management template uses the R1C1 format, column numbers are displayed in numbers, not letters.
The default zoom in the definition information management template is 75%. You can zoom in further if the characters are too small to be easily seen or the characters in the line are not displayed properly.
The default page setup for the definition information management template is 1 page wide by 50 pages tall. Adjust this setup as necessary when printing the definition information management template.

Organization of this subsection

(1) Operation buttons
(2) The input and display field for definition information
(3) Function keys

(1) Operation buttons

The following 4 types of operation buttons exist. Note that the VIEW button is only displayed for execution result files.

The IMPORT button: Click this button to load definition information on the manager host into the definition information management template. This can also be accomplished by pressing F1.
The EXPORT button: Click this button to apply definition information, as input into the definition information management template, to the manager host. This can also be accomplished by pressing F4.
The CHECK button: Click this button to check the contents entered into the definition information management template. This can also be accomplished by pressing F10. For details about the items checked when the CHECK button is clicked, see 2.3 The error-checking function.
The VIEW button: Click this button to display JP1/AJS3 - View. Either the JP1/AJS3 - View window or the Jobnet Editor window will be displayed, depending on the type of unit selected. This can also be accomplished by pressing F11.

To Page Top

(2) The input and display field for definition information

The field for input and display is displayed in the lower part of the window. When import is performed, definition information is output into these fields. Enter definition information into these fields to perform export. The input rule that conforms to the corresponding item is already set for each cell.

When you mouse over the cell of an item title, an explanation of that item is displayed. Use these explanations as a reference when inputting or checking definition information. Note that these explanations will not appear for custom jobs. For details about each definition item, see 5. Definition Items.

The Excel auto-filter function is set for the item titles, allowing you to narrow down the display to only those units for which a certain value is specified.

When you perform import or export, a message might be output in the last column (Error message information section) of the definition information. If a message is output, the color of the Section cell changes.

Red : The type of the output message is an error (E).
Pink : The type of the output message is a warning (W).
Yellow : The type of the output message is information (I).

To Page Top

(3) Function keys

When the definition information management template is opened, each function key, from F1 to F12, is allocated to each function for JP1/AJS3 - Definition Assistant. As a result, you cannot use the original Excel function key allocations. The following table lists the functions allocated to each function key in JP1/AJS3 - Definition Assistant.

Table 4‒1: Function key allocation
Function key	Function
F1	Performs import.
F2	Marks the selected cell for modification of the definition information.^#
F3	Clears the marking of the selected cell.^#
F4	Performs export.
F5	Enters Batch for the Section of all rows input.^#
F6	Enters Individual for the Section of all rows input.^#
F7	Enters Change for the Section of all rows input.^#
F8	Enters Delete for the Section of all rows input.^#
F9	Clears the contents defined for the Section of all rows input.^#
F10	Checks the input definition information.
F11	Opens the JP1/AJS3- View window.
F12	No functions

#: When the displayed unit definition information is narrowed down using the auto-filter function, processing will be performed for the displayed rows.
