3.1.2 Setting up user information
Before performing import and export with JP1/AJS3 - Definition Assistant, you need to set up the user information. This subsection explains the necessary settings for user information when performing import and export with JP1/AJS3 - Definition Assistant as well as the permissions for execution that are necessary for the JP1 users to be used with JP1/AJS3 - Definition Assistant.
Note that since JP1/AJS3 - Definition Assistant uses JP1/AJS commands internally, the settings for performing import and export are the same as those for executing commands on the manager host. However, the JP1_USERNAME environment variable that can be used with JP1/AJS is not enabled.
- Organization of this subsection
(1) When the user authentication function is not used
This subsection describes how to set the user information of a JP1 user for the following types of operations:
-
When JP1/AJS3 - Definition Assistant is used as the default setting
-
When the automatic import function is used
-
When the automatic export function is used
In this subsection, the following user names and host names are used as examples.
The host on which JP1/AJS3 - Definition Assistant is installed |
HostD |
The OS user that uses JP1/AJS3 - Definition Assistant on HostD |
UserD |
The host on which JP1/AJS3 - Manager is installed |
HostM |
The OS user actually executing commands on HostM |
UserM |
The authentication server that HostM views |
HostA |

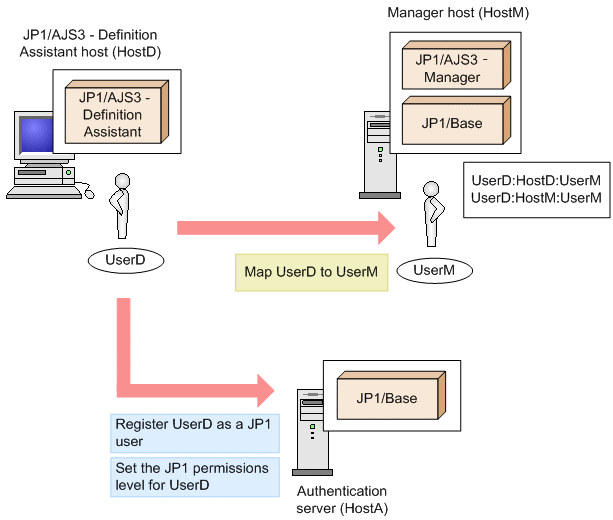

The following figure gives an overview of setup for user information.
Note that user information is specified on JP1/Base on the authentication server and on the manager host. The following gives an outline of the settings for using JP1/AJS3 - Definition Assistant. For details about how to perform these settings, see the manual JP1/Base User's Guide.
(a) Setting up the authentication server
-
Register a JP1 user with the same name as an OS user of the host on which JP1/AJS3 - Definition Assistant is installed. In this case, UserD is registered as a JP1 user.
Note that only lower-case alphabetic characters can be used in JP1 user names. When the OS user name contains upper-case letters, it can be used as a JP1 user name without problems if it is registered in lower case.
- Example:
-
OS user name: UserD
JP1 user name: userd
-
Settings for the JP1 permissions level
Grant the appropriate permissions so that the OS user of the manager host (UserM) can operate the resource groups of units to be imported or exported.
(b) Setting up the manager host
-
Map the JP1 user connecting to the manager host (UserD) to the OS user of the manager host (UserM).
To perform import and export, user mapping needs to be performed to both establish a connection from JP1/AJS3 - Definition Assistant, and to execute commands on the manager host.
To establish a connection from the JP1/AJS3 - Definition Assistant host, map UserM to UserD by specifying HostD for the connection source server host, and UserD for the JP1 user.
To execute commands on the manager host, map UserM by specifying HostM for the server host, and UserD for the JP1 user.
(2) When the user authentication function is used
This subsection describes how to set the user information of a JP1 user for the following types of operations:
-
When JP1/AJS3 - Definition Assistant uses the same JP1 user settings that are used in JP1/AJS3 - View
-
When JP1/AJS3 - Definition Assistant is used without changing the JP1 user settings that are already being used in JP1/AJS3 - View
In this subsection, the following user names and host names are used as examples.
The host on which JP1/AJS3 - Definition Assistant and either JP1/AJS3 - View is installed |
HostD |
The JP1 user that accesses JP1/AJS3 - Manager |
jp1a |
The host on which JP1/AJS3 - Manager is installed |
HostM |
The OS user actually executing commands on HostM |
UserM |

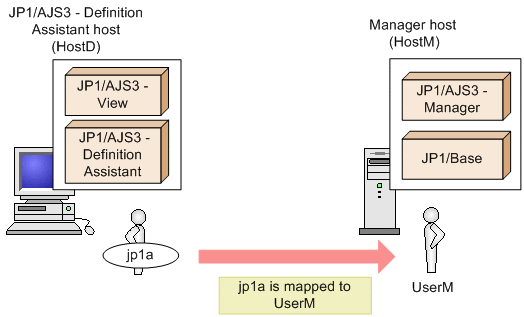

The following figure gives an overview of setup for user information.
When the JP1 user (jp1a) has been already registered on the authentication server, and the user mapping settings (jp1a:HostM:UserM) for the JP1 user (jp1a) have been specified on the manager host, setup for user information is not needed.
Note that when you upgrade JP1/AJS3 - Definition Assistant and you want to use the user information settings of the JP1 user that were used in JP1/AJS3 - Definition Assistant before upgrade without change, specify N for the AJS-SET-SERVERHOST environment settings parameter.
The following table shows how to set user mapping when setting the AJS-SET-SERVERHOST environment settings parameter.
No. |
Value of AJS-SET-SERVERHOST |
Program |
Required user mapping |
---|---|---|---|
1 |
Y |
JP1/AJS3 - Definition Assistant |
jp1a:HostM:UserM |
2 |
JP1/AJS3 - View |
jp1a:HostM:UserM |
|
3 |
N |
JP1/AJS3 - Definition Assistant |
jp1a:HostD:UserM |
4 |
jp1a:HostM:UserM |
||
5 |
JP1/AJS3 - View |
jp1a:HostM:UserM |
For details about the AJS-SET-SERVERHOST environment settings parameter, see 3.2.1 Settings for environment settings parameters.
(3) Permissions for execution that are necessary for JP1 users
The table below lists the permissions for execution that are necessary for the JP1 users used with JP1/AJS3 - Definition Assistant.
The permissions for execution shown in this table are determined by the JP1 permissions level that is held by the JP1 users (users used with JP1/AJS3 - Definition Assistant) with respect to the JP1 resource group specified as the attribute of the target unit. However, if no JP1 resource group is specified for the target unit, or if the OS user mapped to the JP1 user to be used has either administrator permissions (in the case of Windows) or superuser permissions (in the case of UNIX), the permissions for execution shown in this table are not necessarily necessary.
Function |
Necessary permissions for execution#1 |
|
---|---|---|
The import function |
JP1_AJS_Admin JP1_AJS_Manager JP1_AJS_Editor |
|
The export function |
The individual definition function |
|
The batch definition function |
||
The modification function#2 |
||
The delete function |
