1.5 Example operation methods

This section gives two examples of how to perform operation for JP1/AJS3 - Definition Assistant. The first example uses one definition information management template, while the second example uses multiple definition information management templates.

The following figure shows how to perform operation with one definition information management template:

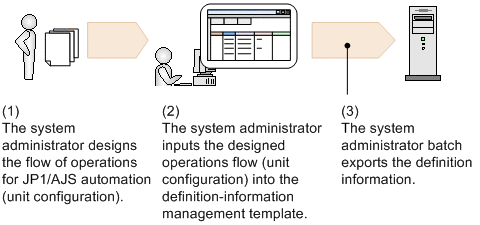

Figure 1‒7: JP1/AJS3 - Definition Assistant: operation example 1 (with one definition information management template)

The following figure shows how to perform operation with multiple definition information management templates:

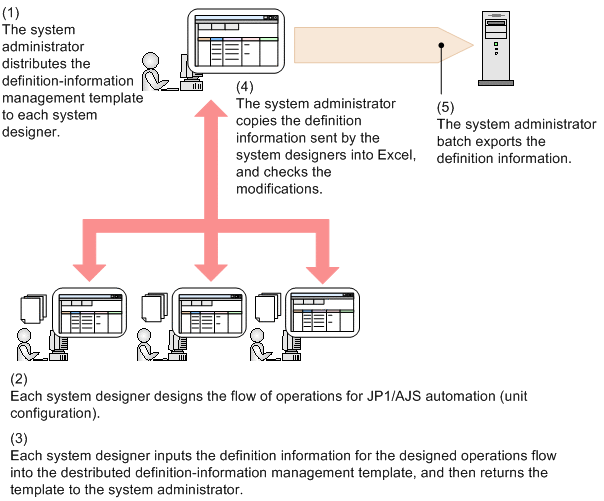

Figure 1‒8: JP1/AJS3 - Definition Assistant: operation example 2 (with multiple definition information management templates)

For details about operation methods, see 4. Operation.
