1.1 Overview of JP1/AJS3 - Definition Assistant

JP1/AJS3 - Definition Assistant can export large amounts of JP1/AJS definition information, as edited with an Excel template, into a manager host. This definition information, which consists of such things as scheduling information, names of jobnets and job, and executable file names, can also be imported back into the Excel template.

The Excel template provided by JP1/AJS3 - Definition Assistant is called the definition information management template. This template enables more efficient input and editing of definition information, by providing a list view that allows you to use such Excel functionality as auto-fill and auto-filtering.

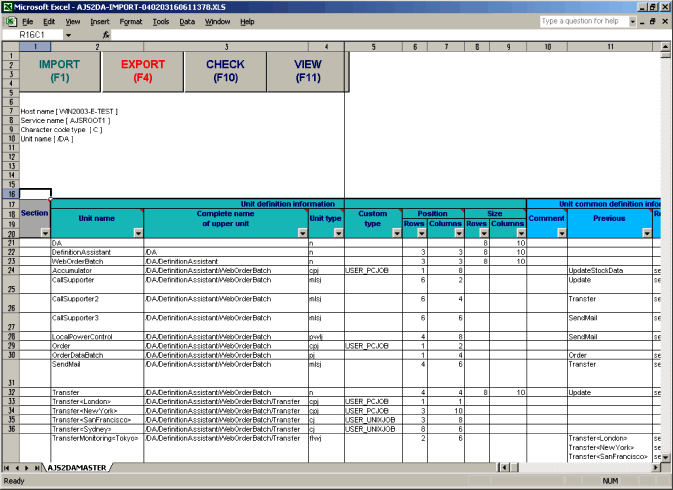

The following figure shows the window for the definition information management template.

Figure 1‒1: The definition information management template

Registering JP1/AJS definition information edited using this template with a manager host database is called exporting. Likewise, loading into the template JP1/AJS definition information already registered in a manager host database is called importing. After importing JP1/AJS definition information into the template, you can add, modify, or delete the information, and then re-export it.

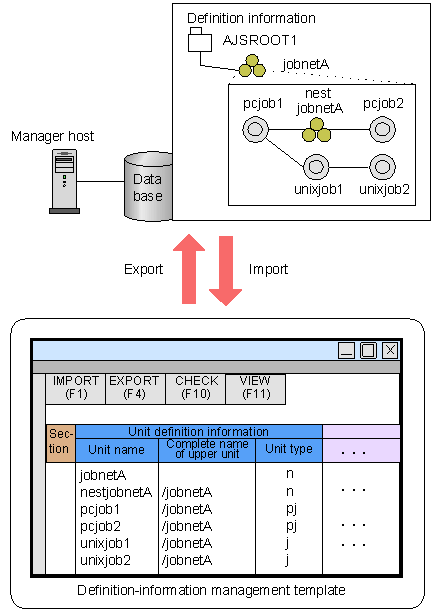

The following figure shows importing and exporting.

Figure 1‒2: Importing and exporting
