5.3.1 Example of defining a job group

Organization of this subsection

(1) Example of defining a job group

This example covers definition of a job group that meets the following conditions:

One job group is defined.
The job group name is group.
The unit attributes are owner: update, group: references, and others: references.
In the calendar, set Saturday and Sunday as closed days. The base time is 6:00.

The following gives an example of definition.

[Figure]

This example covers definition of a planning group which meets the following conditions:

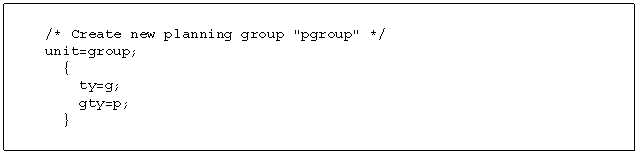

The following gives an example of definition.

[Figure]
