jpqdbcond

Format

jpqdbcond
     [-h logical-host-name]
     [[-m] |
       [[-x][-k]
         [-d directory-name][-p {output-destination}]]|
     [[{-l|-L} [-a] [[-i {output-destination}]|
       [-t {output-destination,unused-area-size-threshold} [-v]]]]
        |[-t {output-destination,unused-area-size-threshold} [-v]]]]

To Page Top

Description

1. Compresses unused areas and reorganizes files if the ratio of unused areas is high for the ISAM files that the job execution environment uses.

2. Outputs the ratio of unused areas, data file fragmentation ratio, and unused size for the ISAM files used in the job execution environment, to the standard output file.

   You can display the ratio of unused areas for the ISAM files even while the job execution environment is using the ISAM files.

3. Outputs the following information for the ISAM files that the job execution environment uses, to the specified destination as a message:

   - Information about reorganization (start and end date/time, statistics)

   - Unused area size

   - Whether the unused area size has reached the threshold

   You can specify one or more of the following message destinations:

   - Standard error output

   - Windows event log or Syslog

   - JP1 event

4. Checks whether the size of unused areas for the ISAM files that the job execution environment uses has reached the threshold and sets the result in the return value of the command.

5. Converts the format of the ISAM file.

To Page Top

Execution privileges

In Windows: Administrators privilege

In UNIX: Superuser privilege

To Page Top

Arguments

To Page Top

Notes

• Perform reorganization after you have backed up the relevant files. The jpqdbcond command uses the directory specified in the -d option as a work directory. The drive or partition that contains the directory must have at least twice as much free space as the largest ISAM key file in the job execution environment you want to reorganize. In addition, the drive or partition that contains the job execution environment database directory must have at least as much free space as the largest ISAM key file in the job execution environment you want to reorganize. If you do not specify the -d option, the command uses the OS standard work directory. See the description of the Jiscond command in the JP1/Base User's Guide.

• If you specify none of the -x, -t, -l, -L, -k, and -m options, the -x option is assumed.

• If you specify the -x or -k option for this command, you must back up the ISAM files before executing the command (before reorganizing the ISAM files).

• If you specify the -x, -l, or -k option for this command, you must execute the command with the ISAM files closed (to close the ISAM files, stop JP1/AJS3). When the ISAM files are open, executing the command will result in an error.

• If you specify the -L option for this command, you can also obtain information about any ISAM files that other processes are using. If another process is simultaneously updating the ISAM files, however, the command fails to obtain accurate information for any updates performed just when it obtains information. In order to maintain the integrity of the ISAM files, other processes attempting to access the ISAM files have to wait while the command is executed. You should not, therefore, use this command when the system is executing a large number of jobs.

• The output information from this command with the -l or -L option specified refers to the ratio of unused areas, not the ratio of fragmentation. If, therefore, the ISAM file contains no records or there are an extremely limited number of records, 100% is output showing the ratio of unused areas to the empty area that has been reserved.

• Reorganizing the ISAM files sometimes fails to completely reorganize the entire files, possibly leaving some small unused areas.

• If you execute this command with the -x or -k option specified, do not execute the jpqautocond command or the jajs_maintain -m manager command at the same time.

• You cannot specify the -x and -k options of this command together.

To Page Top

Return value

0	Normal end#
1	The ISAM files being used contain unused areas exceeding the specified threshold size.
100	Invalid argument specified
132	The configuration definition information file for submit job execution is not validly coded.
135	Insufficient system resource
137	No database storage path
138	You do not have the privilege required to access the database.
140	The user does not have administrator privileges (in Windows systems) or superuser privileges (in UNIX systems).
141	Invalid environment setting or logical host name
145	Insufficient memory
146	Insufficient disk space
147	An error due to an internal cause occurred.
148	An error occurred in ISAM processing for database reorganization.
149	Processing cannot be performed because the database size exceeds 2 GB.
226	Invalid execution environment

#

When the -t and -v options are specified simultaneously, indicates that the ISAM files used by the job execution environment have not reached the unused area size threshold.

To Page Top

Additional information

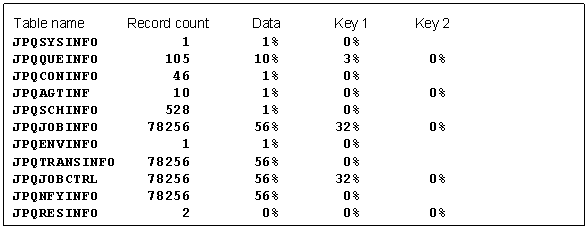

• The following shows the format of output when the -l or -L option is specified:



  The following items are output:

  Table name

  Displays the table name.

  Record count

  Displays the number of records.

  Data

  Displays the ratio of unused areas for the data file.

  Key 1

  Displays the ratio of unused areas for the first key file.

  Key 2

  Displays the ratio of unused areas for the second key file.

  This item is blank if there is only a single key file.

  There cannot be more than two key files.

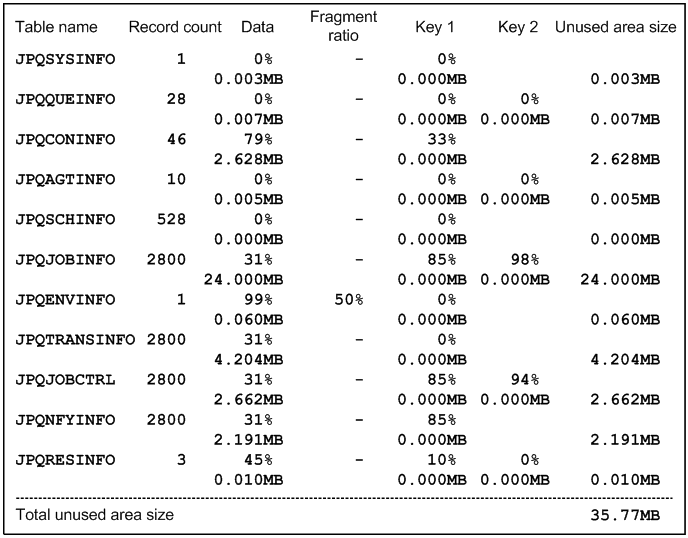

• The following shows the format of output when the -a option is specified with the -l or -L option.



  Information is output in two rows for each table. The information displayed in the upper row is the same as that displayed with the -l or -L option. The lower row displays the unused area size for each file (in MB; 1 MB = 1,024 * 1,024 bytes).

  The following describes the displayed items:

  Table name

  Displays the table name.

  Record count

  Displays the number of records.

  Data

  When the -a option is specified, data is output in two rows for each table. The data displayed in the upper row is the same as that displayed with the -l or -L option. The lower row displays the unused area size.

  Fragment ratio

  For a variable-length record, updating a record may cause the data in ISAM files to be split into multiple blocks. This item displays the ratio of the split records to the total number of records. This item is only displayed for variable-length ISAM files. It displays a hyphen (-) for other tables.

  Key 1

  When the -a option is specified, data is output in two rows for each table. The data displayed in the upper row is the same as that displayed with the -l or -L option. The lower row displays the unused area size.

  Key 2

  When the -a option is specified, data is output in two rows for each table. The data displayed in the upper row is the same as that displayed with the -l or -L option. The lower row displays the unused area size.

  Unused area size

  This item displays the total unused area size for the data and key files that comprise each ISAM file.

  Total unused area size

  Displays the total unused area size for the ISAM files that the job execution environment uses.

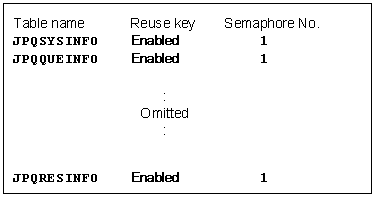

• The following shows the format of output when the -m option is specified:



  The following items are output:

  Table name

  Displays the table name.

  Reuse key

  Displays Enabled if the key reuse functionality for the ISAM file format is enabled.

  Displays Disabled for the conventional ISAM file format.

  Semaphore No.

  Displays the semaphore number if the file is split by semaphore.

  Otherwise, a hyphen (-) is displayed.

• If you specify j (JP1 event) as the output destination for the -p, -i, or-t option, the following JP1 events are output:

  Specified option	Event ID	Event name	Issued when	Message ID
  -p	00004160	Job execution environment database reorganization started	Reorganization starts.	KAVU5980-I
  -p	00004161	Job execution environment database reorganization ended normally	Reorganization ends normally.	KAVU5981-I
  -p	00004162	Job execution environment database reorganization ended abnormally	Reorganization ends abnormally.	KAVU5982-E
  -i	00004163	ISAM unused area size information	ISAM unused area size information is obtained.	KAVU5983-I
  -t	00004164	ISAM unused area size threshold reached	The ISAM unused area size threshold is reached.	KAVU5984-W

  Note

  For details about the JP1 events, see A. JP1 Events Issued by JP1/AJS3 in the JP1/Automatic Job Management System 3 Administration Guide.

• The following describes a database reorganization log that is output when the database is reorganized:

  When you execute the jpqdbcond command, it creates the CONDENSE{1|2}.log file in the directory storing the database. This file contains the database reorganization log, which records the following statistics:

  • Start date/time, end date/time, and time required

  • Unused area size and total file size before database reorganization

  • Unused area size and total file size after database reorganization

  Data is logged in the HNTR log format. The log consists of two planes, each of which contains 512 KB of log data.

  Message KAVU5985-I is output with the statistics of database reorganization embedded.

  Output example

  KAVU5980-I Database condensing of the job execution environment started. 20XX/10/01 01:05:40
  KAVU5985-I CONDENSE: Before condensing the database. Unused area size:102.020 MB  Total file size:542.245 MB
  KAVU5985-I CONDENSE: After condensing the database. Unused area size:0.100 MB  Total file size:440.225 MB
  KAVU5981-I Database condensing of the job execution environment ended normally. 20XX/10/01 01:05:40 - 20XX/10/01 01:20:20 (00:14:40)
