ajsrelease

Format1 (for making release entry)

ajsrelease
     [-F service-name]
     -a release-target-root-jobnet-name
     -rid release-ID
     [-rcm release-comment]
     -rdy release-date
     [-rti release-time]
     -ru release-source-root-jobnet-name

Format2 (for making release cancellation)

ajsrelease
     [-F service-name]
     -c release-target-root-jobnet-name

Format3 (for outputting release information)

ajsrelease
     [-F service-name]
     -i release-target-root-jobnet-name...

-F service-name

Specify the name of the scheduler service in which the target root jobnet (the release-target root jobnet) has been defined.

You can specify a character string of 1 to 30 bytes.

-a release-target-root-jobnet-name

Specify this option when making release entry.

Specify the full name of the release target root jobnet, which has the definitions to be switched to the new definition.

You can specify a character string of 1 to 930 bytes.

You can specify this option only if the release target root jobnet does not have jobnet definitions in Release wait, Delete wait, or Release entry wait status.

If the specified root jobnet does not exist, an error occurs. You cannot specify the following root jobnets:

• Root jobnet in a planning group

• Remote jobnet

• Jobnet for recovery

• Manager jobnet

-c release-target-root-jobnet-name

Specify this option when canceling the switching of the jobnet definition to a jobnet definition for which release entry is made.

Specify the full name of the root jobnet for which you want to cancel the switching of the definition.

You can specify a character string of 1 to 930 bytes.

If you specify this option, the command deletes the jobnet definitions in the Release wait, Delete wait, and Release entry wait statuses.

-i

Specify this option to output release information for the root jobnet.

If you specify this option, the command outputs information about the jobnet definitions in Being applied, Release wait, Delete wait, and Release entry wait statuses as release information. The command does not output release information about the jobnet definitions in other statuses.

-rid release-ID

Specify the release ID of the root jobnet (release-target root jobnet) definition for which the command is to be executed. You can specify a character string of 1 to 30 bytes.

You must specify this option with the -a option.

You must specify this option if you specify the -a option.

You cannot specify the following release IDs:

• A release ID associated with the release-target jobnet for which the command is to be executed.

• A release ID that begins with AJS (upper case)

• A release ID that includes a space, tab, linefeed, or any of the following characters:

  ( ) , / : ; = " & ' * < > ? [ \ ] ^ ` { | } ~

You cannot specify this option with the -c and -i option.

-rcm release-comment

Specify a comment on the release entry you are making.

You can specify a character string of 1 to 80 bytes.

You must specify this option with the -a option.

You cannot specify this option with the -C and -i option.

If you omit this option, no release comment is registered.

-rdy release-date

Specify in the YYYY/MM/DD format the date on which the jobnet definition will be switched.

You can specify a value in the range from 1994/01/01 to 2036/12/31.

You must specify this option if you specify the -a option.

You cannot specify this option with the -c and -i option.

If you specify a date in the past, an error occurs. An error also occurs if you specify the same date as the release date of a jobnet definition for which release entry is already made.

-rti release-time

Specify in the hh:mm format the time at which the jobnet definition will be switched.

You can specify a value in the range from 00:00 to 23:59. If you omit this option, the system assumes 00:00.

You must specify this option with the -a option.

You cannot specify this option with the -c and -i option.

If you specify a time in the past, an error occurs.

-ru release-source-root-jobnet-name

Specify the full name of the release source root jobnet, the definition of which is to be applied to another root jobnet.

You can specify a character string of 1 to 930 bytes.

You cannot specify any of the following root jobnets:

• Root jobnet for which release entry is made

• Root jobnet in a planning group

• Remote jobnet

• Jobnet for recovery

• Manager jobnet

You must specify this option if you specify the -a option.

You cannot specify this option with the -c and -i option.

release-target-root-jobnet-name...

Specify the root jobnets for which you want to switch the definition.

You can specify multiple units or wildcard characters of units.

You cannot specify a character string that contains a logical host name, service name, or execution ID.

You can specify a character string of 1 to 930 bytes.

You must specify this option if you specify the -i option.

You cannot specify this option with the -a and -c option.

Notes on registering jobnets for release

• A jobnet whose schedule is later than the release time and which has been registered for fixed execution with either a period or a date specified cannot be specified as a release target. In such cases, cancel the registration or prohibit the execution of schedules after the release time, and then register the jobnet-definition release. Note, however, that if a number of future generations is also specified for the jobnet registered for fixed execution, you can register the jobnet-definition release even when the schedule of the jobnet is later than the release time.

• You cannot use the jobnet release function for jobnets of different scheduler services.

• The following jobnets cannot be specified as a release source:

  • A jobnet that has already been specified as a release target

  • A suspended jobnet

  • A jobnet being edited

  • A jobnet being used by another user

  • A jobnet for which at least two of the following are defined: a jobnet connector, a connection-destination jobnet, or a start condition (.CONDITION)

• The following jobnets cannot be specified as release targets:

  • A suspended jobnet

  • A jobnet whose status is Shutdown

  • A jobnet being edited

  • A jobnet being used by another user

    If the other user is setting or releasing a hold attribute that applies to a unit under a jobnet whose status is Being applied, the jobnet can be specified as a release target.

  • A jobnet for which at least two of the following are defined: a jobnet connector, a connection-destination jobnet, or a start condition (.CONDITION)

• A jobnet whose definition is in Release wait, Delete wait or Release entry wait status cannot be specified as a release-target jobnet. If you want to register a jobnet definition in the Release wait status, wait for the jobnet status to change to Being applied. For a jobnet definition in Delete wait or Release entry wait status, cancel the jobnet-definition release, and then re-register it.

• The scheduler service needs to be running to register a release.

• Registering a jobnet-definition release creates a system load that is equal to or greater than the load created by the definition for the release-source jobnet. Do not register a jobnet-definition release during peak job execution times.

• If you register a jobnet-definition release specifying a release-target jobnet for which the upper-level unit-attribute inheritance function is set, the owner and JP1 resource group of that jobnet are set by the function.

• When you register a jobnet-definition release, generations after the release date are re-created based on the registered jobnet definition. Therefore, any changes made by temporarily changing the plan before the registering the jobnet-definition release are not passed to the generations after the release date (The information specified during registration for execution, such as macro variables and JP1 user, is passed). You can reinstate temporary plan changes for generations of a jobnet after its release date by using the temporary change re-execution function to re-execute of temporary changes made prior to its release. For details on this function, see 4.5.16 Displaying and re-executing temporary change operations for a job or jobnet in the manual JP1/Automatic Job Management System 3 Overview.

• Even if you register, for release, a jobnet definition that (in the schedule definition) will have no next scheduled generation created, no scheduled generation will be created from that definition. Therefore, use JP1/AJS3 - View or the ajsshow command to make sure that a scheduled generation has been created correctly from the jobnet definition that was released. If a scheduled generation has not been created, cancel the jobnet-definition release, review the release-source jobnet definition, and then re-reregister the jobnet-definition release.

• When fixed execution registration is used, the jobnet definition returns to the unregistered status if:

  - Generations exist only after the specified release date, and

  - A jobnet-definition release is registered for a jobnet definition for which (in the schedule definition) no next scheduled generation is created.

  In such cases, cancel the registration of the jobnet-definition release, review the release-source jobnet definition, again register the jobnet-definition release, and then re-register the jobnet definition for execution.

• If you want to change the definition of a jobnet whose release status is Release wait, cancel the release, change the definition, and then perform release entry. If you do not have enough time to cancel the release or to re-do release entry, or if you want to change the definition whose status is Being applied, suspend the jobnet and then change the definition.

• If release entry fails, the jobnet definition remains in the Release entry wait status and release entry is not performed. To prevent this problem, after you perform release entry, check whether the release status of the released jobnet definition changes from Release entry wait to Being applied or Release wait. If release entry fails and a definition remains in the Release entry wait status, cancel the release to delete the definition.

• Release of the following jobnets cannot be canceled:

  • A suspended jobnet

  • A jobnet whose status is Shutdown

  • A jobnet being edited

  • A jobnet being used by another user

    If the other user is setting or releasing a hold attribute that applies to a unit under a jobnet whose status is Being applied, the release of the jobnet can be canceled.

Cautionary notes on canceling a release

• You cannot cancel release of a root jobnet that is being operated on by another user.

• You cannot cancel a release for a root jobnet that has been suspended. In such cases, release the suspension of the root jobnet and try again to cancel the release.

• You cannot cancel a release for a root jobnet in shutdown status. In such cases, cancel the execution registration of the root jobnet and try again to cancel the release.

• The scheduler service needs to be running to cancel a release.

• Canceling a release creates a system load that is equal to or greater than the load caused by deleting the jobnet definitions in the release information. Do not cancel a release during peak job execution times.

• When you cancel a release, generations are re-created based on the jobnet definition whose status becomes Being applied after the release is canceled. Therefore, any changes made by temporarily changing the plan before canceling the release are not passed to the jobnets after the release is canceled. Note, however, that the information specified during registration for execution, such as macro variables and JP1 users, is passed.

• If no next scheduled generation is created because of cancellation of the release of a jobnet definition whose status became Being applied after the cancellation, no scheduled generation will be created from that definition. Therefore, use JP1/AJS3 - View or the ajsshow command to make sure that the scheduled generation has been created correctly after the release is canceled. If a scheduled generation has not been created, review the jobnet definition that is in the Being applied status.

• When fixed execution registration is used, the jobnet definition returns to the unregistered status if:

  - Generations exist only in the jobnet definition whose release is to be canceled, and

  - No next scheduled generation is created because the release was cancelled for a jobnet definition whose status became Being applied after the cancellation.

  Review the jobnet definition that is in Being applied status after the release was canceled, and then re-register the jobnet for execution.

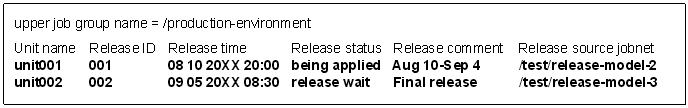

Cautionary notes on outputting release information

• When extracting data from the output information, extract the data based on its delimiting spaces, not by fixed byte count.
