ajschkdef
- Organization of this page
Format
ajschkdef
[-F service-name]
[{-s|-a}]
[-O][-M][-C][-P][-H][-D][-U][-A]
[-p execution-agent-profile-name]
[-e unit-attribute-profile-name]
[-u registered-user-name]
[-o output-file-name]
[-R]
[-L]
[-T]
[-N]
[-J]
job-name, jobnet-name-or-job-group-name...
Description
Starts the execution of a definition pre-check and displays the state of execution.
Execution privileges
In Windows: Administrators privileges
In UNIX: Superuser privileges
Storage directory
- In Windows:
-
JP1/AJS3 - Manager-installation-folder\bin\
- In UNIX:
-
/opt/jp1ajs2/bin/
Arguments
-F service-name
Specify the name of a scheduler service for which units that will undergo a definition pre-check are defined.
You can specify a string of 1 to 30 bytes.
If you omit this option, the default is the value of environment variable AJSCONF. If environment variable AJSCONF has not been set, the name of the default scheduler service is assumed.
When specifying the scheduler service name for the logical host, you need to specify the logical host name in environment variable JP1_HOSTNAME.
If environment variable JP1_HOSTNAME has not been set, the local host name is assumed.
-s
Starts the execution of the definition pre-check.
-a
Outputs the execution status of the definition pre-check to the standard output file. The following table summarizes the names of execution statuses to be output:
|
State of execution |
Name of status to be output |
Meaning |
|---|---|---|
|
Not yet executed |
stop |
|
|
Currently being executed |
run |
|
-O, -M, -C, -P, -H, -D, -U, -A
Specify the items you want to check in a definition pre-check.
You can specify more than one check item at the same time. The following table summarizes what each option actually checks and the order in which checks are made (the order shown is an example).
|
Checking order |
Option |
Check item |
|---|---|---|
|
1 |
-O |
Order of execution |
|
2 |
-M |
Detailed jobnet definition#1 |
|
3 |
-C |
Execution agent restriction |
|
4 |
-P |
Empty job definition |
|
5 |
-H |
Execution agent name |
|
6 |
-U |
User mapping#2 |
|
7 |
-D |
Detailed job definition |
|
8 |
-A |
Execution file privileges#2 |
- #1
-
This option also checks the jobnet connectors and the units whose ends are being waited for by wait conditions.
- #2
-
If you use the execution-user fixing function, this item is checked for the fixed JP1 user as defined in the unit-attribute profile.
The command checks in the order of the options shown in the table, regardless of the order in which you specify the options. If the -D option (detailed job definition) or -A option (execution file privileges) is specified, the user mapping will also be checked as a precondition because information about the OS user that executes the job is required. If the -P, -H, -U, -D, or -A options (corresponding to 4 to 8 in the Checking order column) are specified to be checked by the agents, the execution agent name will also be checked as a precondition.
By default, all options (-O, -M, -C, -P, -H, -U, -D, -A) are assumed.
None of these options can be specified together with the -a option.
-p execution-agent-profile-name
When checking execution agent restriction, specify the applicable execution agent profile using an absolute path.
You can specify a character string of 1 to 255 bytes.
If the folder you specify contains spaces, enclose the entire path in double quotation marks (").
You can specify this option together with the -C option. If you specify the -C option but omit this option, the execution agent profile for the scheduler service specified in the -F option applies.
-e unit-attribute-profile-name
When checking the execution-user fixing function, specify the applicable unit-attribute profile using an absolute path.
You can specify a character string of 1 to 255 bytes.
If the folder you specify contains spaces, enclose the entire path in double quotation marks (").
You can specify this option together with the -U, -D, or -A option. If you specify the -U option but omit this option, the system assumes the unit attribute profile for the scheduler service specified in the -F option. If you omit the -F option, the system assumes the unit attribute profile for the default scheduler service.
-u registered-user-name
Specify the JP1 user for which the jobnet is actually registered in actual operation.
You can specify a string of 1 to 31 bytes.
When the job definition has a registered user in its execution-user type, the specified JP1 user performs the user mapping check.
By default, the user executing this command is assumed.
This option cannot be specified together with the -a option.
-o output-file-name
Using an absolute path, specify the pre-check result file name. See Output example for the format of the pre-check result file name.
You can specify a string of 1 to 255 bytes.
An overwrite is performed if there is a file whose name is the same as that of the specified output file.
An error occurs if there is no directory path.
If you omit this option, the default is the file name specified in the environment variable parameter AJSCHK_CHECKFILE. If the AJSCHK_CHECKFILE environment setting parameter is not specified, the default value for the AJSCHK_CHECKFILE is assumed.
For details on the AJSCHK_CHECKFILE environment setting parameter, see 20.7.2(1) AJSCHK_CHECKFILE in the JP1/Automatic Job Management System 3 Configuration Guide.
This option cannot be specified together with the -a option.
-R
Treats all jobnets or jobs under the specified unit as subject to the definition pre-check (pre-check starting point). If this option is specified together with the -L, -T, -N, or -J option, the applicable jobnets and jobs are subject to the definition pre-check (check starting point) according to the specification of each option.
To check all jobnets and jobs under a job group, specify this option together with the -T option.
This option cannot be specified together with the -a option.
-L
Performs a definition pre-check on unregistered jobnets and jobs.
If you specify this option together with the -T, -N, or -J option, a definition pre-check is performed on unregistered jobnets according to the definition of each option.
This option cannot be specified together with the -a option.
-T
Performs a definition pre-check on the root jobnet.
You cannot specify this option together with the -a or -J option.
-N
Performs a definition pre-check on jobnets.
You cannot specify this option together with the -a or -J option.
-J
Performs a definition pre-check on jobs.
You cannot specify this option together with the -a, -T, or -N option.
job-name, jobnet-name-or-job-group-name
Specify the job, jobnet, or job group for which you are to perform a definition pre-check.
A definition pre-check starts with the units immediately under the specified unit.
You can specify a string of 1 to 930 bytes.
You can specify multiple jobs, jobnets, or job groups. You can also specify the root job group (/). Note that you must specify the -R option if you specify a job group name.
Note that a job, jobnet, or job group cannot contain the logical host name, scheduler service name, or execution ID.
This option cannot be specified together with the -a option.
Notes
-
Make sure that you perform a definition pre-check while no jobs are running. If you perform a definition pre-check while a job is running, the following problems might occur:
-
Performance of job execution is affected by contention of access to the scheduler database.
-
An error occurs in job execution processing because the load on the system becomes temporarily heavy.
-
-
You cannot use this command to start a new definition pre-check while another definition pre-check is being performed. If you want to perform multiple definition pre-checks, make sure that a definition pre-check is not being performed, and then execute this command with the -a option specified.
-
If the JP1/AJS3 Check Manager service has not been started, this command terminates abnormally. The check process does not work with an agent for which the JP1/AJS3 Check Agent service has not started, but continues with other agents for which the JP1/AJS3 Check Agent service has started.
-
If you perform a definition pre-check while the JP1/AJS3 service is not running on the manager side, the pre-check result might not be output correctly.
-
Do not attempt to add or delete target units (including the units under the particular directory path) or change the content of definitions while a definition pre-check is underway. Doing so may prevent the check results from being output properly.
-
While a definition pre-check is being performed, do not change the execution agent settings specified for the units (including subordinate units) being checked. If you change these settings, the pre-check result might not be output correctly.
-
If any non-target unit is specified, you will not see any message saying that the unit has been skipped.
-
If you specify the -R option, the specified unit and the units under the particular directory path undergo a pre-check. In this case, each unit is checked more than once because the target units are checked repeatedly on a layer basis.
-
If you specify the -R option, the execution agent name for the upper-level jobnet is assumed for the jobs to be checked, regardless of the definition of the job execution agent name. To perform a definition pre-check without the execution agent name being assumed for the upper-level unit as the job execution agent name, specify the -R option together with the -T or -N option.
-
If you specify the -R option to check the execution order of the jobs for the pre-check, only the order of the jobs is checked. Accordingly, if you specify the -R option and perform a pre-check of a judgment job subject to checking, an error message indicating that a dependent job has not been defined for a judgment job might appear even when the judgment job has a dependant. In such cases, perform a pre-check of the definition by specifying the jobnet either without specifying the -R option, or else with the -R option specified together with the -T option or the -N option.
-
Using the -a option to examine the state of operation while a large number of units are being checked may take some time before the result is displayed.
-
Delete the JP1_HOSTNAME environment variable before performing a definition pre-check on units of the physical host.
-
If the check results are not output, read the Hitachi integrated log and take corrective action according to what it says.
-
If you perform a definition pre-check on a unit for which an irresolvable host name is specified for Exec-agent in the detailed unit definition, output of the definition pre-check result file takes a long time.
-
If you perform a definition pre-check on a jobnet connector and its connection-destination jobnet, specify the jobnet connector as the target of the definition pre-check.
-
The system does not perform a definition pre-check of any macro variable names you specify.
-
The checks performed by the -D option (detailed job definition) and the -A option (execution file privileges) for a Unix job assume that the user mapping check result is normal. If the user mapping check returns an error, the detailed job definition check and execution file privileges check will be performed assuming that the job execution user is an OS user that has superuser privileges (that is, a root user). Therefore, the checks will not be performed correctly if the user mapping check result fails and the job execution OS user is not a root user. If the job execution OS user is not a root user, you must correct the user mapping error, and then re-execute the detailed job definition check and execution file privileges check.
-
Do not use an alias for the agent host name of a target job. If an alias for the agent host name of a target job is used, the pre-check result might not be output correctly.
-
The function enabled by the -O (execution order) option checks whether there are correlated units that are defined so that their execution order relationships result in a loop. This function neither identifies the locations where a loop occurs nor checks for all units where loops exist.
Return values
|
0 |
Normal end |
|
Values other than 0 |
Abnormal end |
Example
In this example, the command below executes a definition pre-check under the following conditions:
-
The registered user name is USER1.
-
The command checks all unregistered jobs under the /GROUP1/NET1 directory path.
-
The command specifies all the check conditions.
ajschkdef -F AJSROOT1 -s -u USER1 -RLJ /GROUP1/NET1
Output example

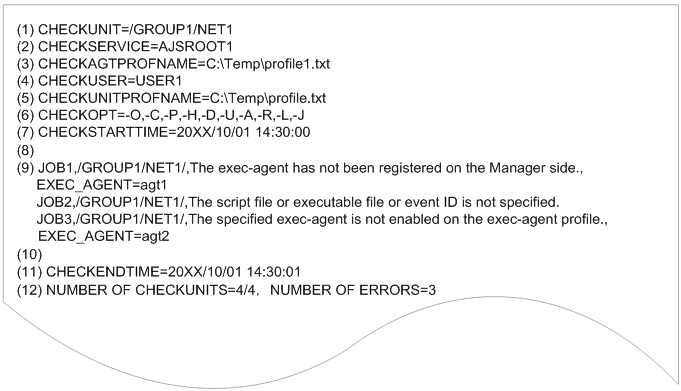

The following shows an example of the command output resulting from a definition pre-check performed under the above conditions. In this example, missing execution agent information is detected on the Manager in /GROUP1/NET1/JOB1, an empty job definition is detected for /GROUP1/NET1/JOB2, and an error related to execution agent permission was detected for /GROUP1/NET1/JOB3.
![[Figure]](GRAPHICS/ZO020005.GIF)
Explanation of output items
- (1) CHECKUNIT=full-unit-name[, full-unit-name...]
-
The unit name specified when the definition pre-check was performed is output in full-unit-name form. If you specified multiple names, all of them are output, with a comma inserted between them.
- (2) CHECKSERVICE=scheduler-service-name
-
The scheduler service name specified when the definition pre-check was performed is output.
- (3) CHECKAGTPROFNAME=execution-agent-profile-name
-
The execution agent profile name specified when the definition pre-check was performed is output. This field is blank if execution agent profiles are disabled.
- (4) CHECKUSER=registered-user-name
-
The registered-user-name specified when the definition pre-check was performed is output.
- (5) CHECKUNITPROFNAME=unit-attribute-profile-name
-
The unit-attribute profile name specified when the definition pre-check was performed is output. This field is blank if the execution-user fixing function is disabled.
- (6) CHECKOPT=specified-option
-
The options (-O/-M/-C/-P/-H/-D/-U/-A/-R/-L/-T/-N/-J) specified when the definition pre-check was performed are output, with a comma inserted between them.
- (7) CHECKSTARTTIME=execution-start-date
-
The date and time at which the definition pre-check was performed are output in the form YYYY/MM/DD hh:mm:ss.
(8) Empty lines
- (9) Check result information (unit name, path name, error category, error details)
-
After the definition pre-check is performed, information about the check result is output in list form. The units involving errors are listed, with a comma inserted between them.
- unit-name
-
The unit name of a unit that showed an error in the check is output.
- path-name
-
The path name (the full parent unit name) of a unit that showed an error in the check is output.
- error-category
-
The category of an error that was detected in the check is output.
See the following table for the categories of errors that are output.
- error-details
-
The details of an error (classified by error category) that was detected in the check are output.
The following table gives details about output errors.
Check item specified at startup
Error category
Error detail
Order of execution
The execution order is looped in the relation definitions.
-
For 08-10 and earlier:
(none)
-
For 08-50 and later:
unit=unit-name#1
A dependent job has not been defined for a judgment job.
-
For 08-10 and earlier:
(none)
-
For 08-50 and later:
unit=unit-name;unit-name;...#2
A relation definition other than a conditional connection has been defined for a dependant job.
-
For 08-10 and earlier:
(none)
-
For 08-50 and later:
unit=unit-name;unit-name;...#3
Execution agent name
The host name of the Manager cannot be resolved from the Agent side.
MANAGER_HOST=
manager-host-name
The host IP address of the Manager cannot be resolved from the Agent side.#4
MANAGER_IP=
manager-host-IP-address
The execution-agent has not been registered on the Manager side.
EXEC_AGENT=
execution-agent-name
The target host name cannot be resolved from the Manager side.
AGENT_HOST=
execution-host-name
Detailed jobnet definition
The specified connection range is different from the jobnet for the connection-destination.
unit=connection-destination-jobnet-name#5
Cannot connect to the specified host.
nchn=connection-host-name
Specified Scheduler service not exist.
ncsv=connection-service-name
Jobnet name for the connection-destination is not specified.
(none)
The specification of jobnet for the connection-destination is not collect.
ncr=connection-destination-jobnet-name
The jobnet for the connection-destination is not configured for controlling the execution order.
unit=connection-destination-jobnet-name#5
Cannot connect with the connection host name specified in the jobnet for the connection-destination.
unit=connection-destination-jobnet-name#5
The connection service name specified in the jobnet for the connection-destination is incorrect.
unit=connection-destination-jobnet-name#5
The jobnet connector name specified at jobnet for the connection-destination is wrong.
unit=connection-destination-jobnet-name#5
Specified unit whose end is being waited for does not exist.
unit=unit-whose-end-is-being-waited-for
The specification of unit whose end is being waited for is not collect.
unit=unit-whose-end-is-being-waited-for
Detailed job definition
The specified file or directory does not exist.
sc=script-file-name (execution-file-name)
ev=environment-variable-file-name
wkp=working-path-name
si=standard-input-file-name
so=standard-output-file-name
se=standard-error-output-file-name
ts1=transfer-source-file-name
td1=transfer-destination-file-name
ts2=transfer-source-file-name
td2=transfer-destination-file-name
ts3=transfer-source-file-name
td3=transfer-destination-file-name
ts4=transfer-source-file-name
td4=transfer-destination-file-name
You do not have permission to access the specified file or directory.
sc=script-file-name (execution -file-name)
ev=environment-variable-file-name
wkp=working-path-name
si=standard-input-file-name
so= standard-output-file-name
se= standard-error-output-file-name
ts1=transfer-source-file-name
td1=transfer-destination-file-name
ts2=transfer-source-file-name
td2=transfer-destination-file-name
ts3=transfer-source-file-name
td3=transfer-destination-file-name
ts4=transfer-source-file-name
td4=transfer-destination-file-name
The specified platform type is invalid.
pfm=platform-type
The format of the value specified for the event ID is invalid.
evwid=event-ID
The value specified for "Find event before exec." is outside the valid range.
Evesc=pre-search-time
The format of the name of the file to be monitored is invalid.
flwf=monitoring-target-file-name
User mapping#6
The specified user mapping is invalid.
JP1_USER=JP1-user-name
Mapping of an execution host is invalid.
JP1_USER=JP1-user-name
Mapping of a OS user is invalid.
OS_USER=OS-user-name
The specified user does not exist.
un=execution-user-name
Execution file privileges
You do not have permission to execute the specified script file or executable file.
JP1_USER=JP1-user-name
FILE_AUTH=file-privilege#7
Empty job definition
The script file or executable file or event ID is not specified.
(None)
Execution agent restriction
The specified exec-agent is not enabled on the exec-agent profile.
execution-agent-name
- #1
-
Only one unit name is output for units whose execution order is looped in the relation definitions.
- #2
-
The names of judgment jobs for which dependent units are not defined by using conditional relations are output.
If there are multiple errors, all unit names separated with a semicolon (;) are output.
- #3
-
The names of dependent units that have relation definitions other than conditional relations are output.
If there are multiple errors, all unit names separated with a semicolon (;) are output.
- #4
-
This error is output if NAT (network address translation) is used for communication between agents and the manager because the IP address resolved from the manager host name is different for the agent hosts and the manager host. Ignore this error if there are no problems with the settings.
- #5
-
If Other service is specified for Connection range, host-name:scheduler-service-name:unit-name is output.
- #6
-
If the user mapping check fails, the -D option (detailed job definition) check and the -A option (execution file privileges) check are performed assuming that the job execution user is an OS user that has superuser privileges (that is, a root user). Therefore, if the job execution user is not a root user, correct the user mapping error, and then re-execute the detailed job definition check and execution file privileges check.
- #7
-
For details about file privileges, see the following table.
File privileges are output in the same way as in the chmod command. (Example: 0644)
Access permission type
Value
Explanation
Special access permission
1000
Swap is maintained in the program code.
2000
The group ID is set during execution.
4000
The user ID is set during execution.
User with the same UID
100
Execution
200
Writing
400
Reading
Group with the same GID
10
Execution
20
Writing
40
Reading
Other user
1
Execution
2
Writing
4
Reading
-
(10) Empty lines
- (11) CHECKENDTIME=execution-end-date
-
The date and time when the definition pre-check ended is output in the form YYYYH/MM/DD hh:mm:ss form.
- (12) NUMBER OF CHECKUNITS=number-of-checked-units/number-of-units-subject-to-checking, NUMBER OF ERRORS= number-of-items-for-which-an-error-was-detected
-
Summary information for the result of a definition pre-check is output. This information includes the number of checked units and the number of items for which an error was detected. If no error was detected, 0 is output.
If you specify the -O or -M option, jobnets and jobnet connectors are also counted as checked units. If you specify any of the -C, -P, -H, -U, -D, or -A options, jobs are also counted.
The number of units subject to checking might be different from the number of checked units in the following case:
-
A definition pre-check process error occurred during checking.
If a definition pre-check process error occurred during checking, the error message is output to the integrated trace log.
-
The connection source restriction function refused connection to the checked units.
If the units to be checked are jobnet connectors with their Connection range set to Other service and the source restriction function is enabled on the destination host, the number of checked units will be reduced by the number of units whose connection was denied.
If an error occurred during the check, the error details are output to the integrated trace log. If different machines are being used for the JP1/AJS3 - Manager and the JP1/AJS3 - Agent, check the integrated trace log in the manager machine first. If no errors are found, check the integrated log in the agent machine.
-
Items (1) to (7) (information about the definition pre-check) and items (11) and (12) (execution end date and summary information) are output only once each time the command is executed. Item (9) (check results) is output for all error occurrences that were detected.
