16.26 Setting dialog box

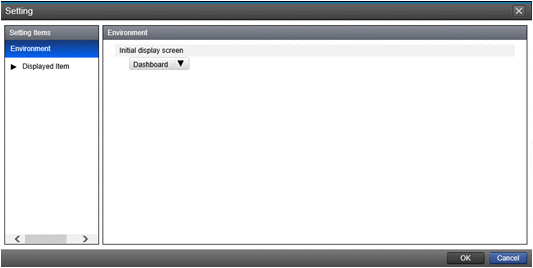

Environment

You can select the Dashboard screen, the List screen, or the Execution Agent screen as the initial screen that appears when you log in.

Displayed Item

Dashboard

You can set the monitoring items to be displayed in the Dashboard screen and the order in which they are displayed.

Dashboard - Status of Root Jobnet

You can set the following items for the Dashboard screen:

• Whether to collapse or expand the initial display of the Status of Root Jobnet area

• The items to be displayed in the Status of Root Jobnet area when it is collapsed

Dashboard - Detail Information

You can set the following items for the Dashboard screen:

• Whether to collapse or expand the initial display of the Detail Information area

• Whether the List tab or the Chart tab is to be displayed initially

• Whether the units in the Chart tab are to be listed in order of the start time, the unit name, or the full path name of the unit

Dashboard - Detail Information - Root Jobnets

You can set the monitoring items to be displayed when information about only root jobnets is displayed in the List tab of the Dashboard screen.

Dashboard - Detail Information - All Units

You can set the monitoring items to be displayed when information about all units, including root jobnets, is displayed in the List tab of the Dashboard screen.

List

You can set the monitored items to be displayed in the List screen and the order in which they are displayed.

Monthly Schedule

You can set the following items for the Monthly Schedule screen:

• Whether the units in the Tree area are to be listed in order of start time or in order of unit name

• Whether to perform execution simulation for the execution schedules displayed in the schedule area

• Whether the start date displayed in the schedule area is set to the base date or to a relative date (specified by a number of days from the current day)

• The monitoring items to be displayed in the List area and the order in which they are displayed
