15.1 Logging in

To monitor and work with units in the Web GUI, you need to log in to JP1/AJS3 - Manager from your web browser.

To log in from your web browser:

In the address bar of your web browser, enter the URL of the Login screen for JP1/AJS3 - Web Console.

http://host-name-or-IP-address-of-Web-Console-server:port-number/ajs/login.html

The default port number is 22252 for HTTP connections and 22253 for HTTPS connections.

Prefix the URL with https if you have SSL enabled and wish to connect using HTTPS.

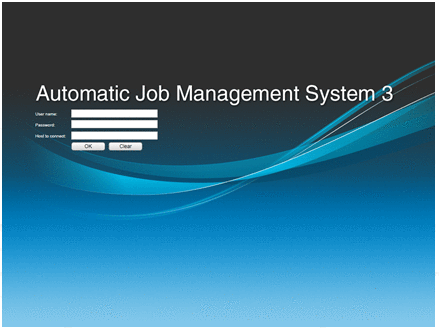

The Login screen appears.
Enter information in the User name, Password, and Host to connect fields, and then click OK.

In the User name and Password fields, specify the user name and password of the JP1 user who is to log in.

In the Host to connect field^#, specify the host name of the JP1/AJS3 - Manager host.

#

If the manager hosts to which the Web Console server can connect are restricted and the specified input method for Host to connect is a drop-down list, select the name of the JP1/AJS3 - Manager host to which a connection is to be established from the drop-down list.

If login is successful, the following window appears:

If the Dashboard screen is set to be displayed initially and no units are set as monitoring targets:

The Set Monitoring Targets dialog box appears. After you set units as monitoring targets in the Set Monitoring Targets dialog box, the Dashboard screen appears.

If the Dashboard screen is set to be displayed initially and units are set as monitoring targets:

The Dashboard screen appears.

If the List screen is set to be displayed initially:

The List screen appears.

If the Execution agent screen is set to be displayed initially:

The Execution agent screen appears.

Cautionary notes

If no request is issued to the Web Console server for 15 minutes after login, a session timeout occurs, and the login is canceled.
If you use the Web GUI for a long time, restart the Web browser once a day. The KNAK2416-Q message appears after the Web GUI has been used for 25 hours.
If the manager hosts to which the Web Console server can connect are restricted and the name of a host to which Web Console is not permitted to connect is specified for Host to connect, attempts to log in will fail with the KNAK3279-E message.
