JP1 Version 12 JP1/Automatic Job Management System 3 Troubleshooting

B.1 Configuration of processes

The figure below shows the configuration of JP1/AJS3 processes (UNIX). The figure illustrating the overall relationship between parent and child processes should be helpful in monitoring processes.

Organization of this subsection

(1) Processes in the JP1/AJS3 (UNIX)

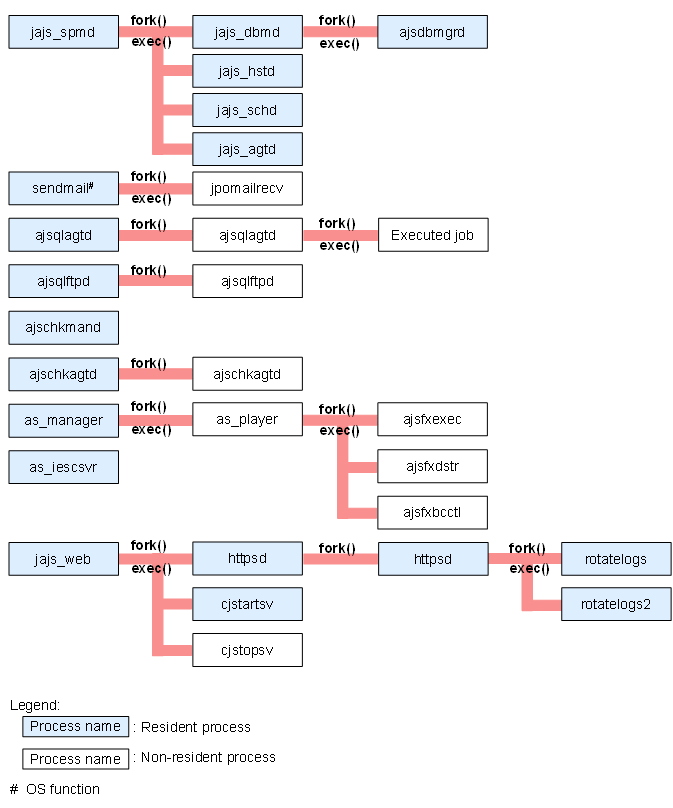

Figure B‒1: JP1/AJS3 processes (UNIX) (parent and child processes)

[Figure]

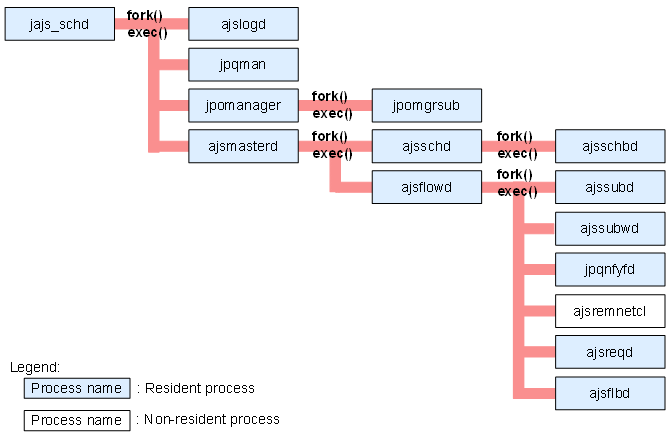

Figure B‒2: JP1/AJS3 processes (child and detail processes) (1/3)

[Figure]

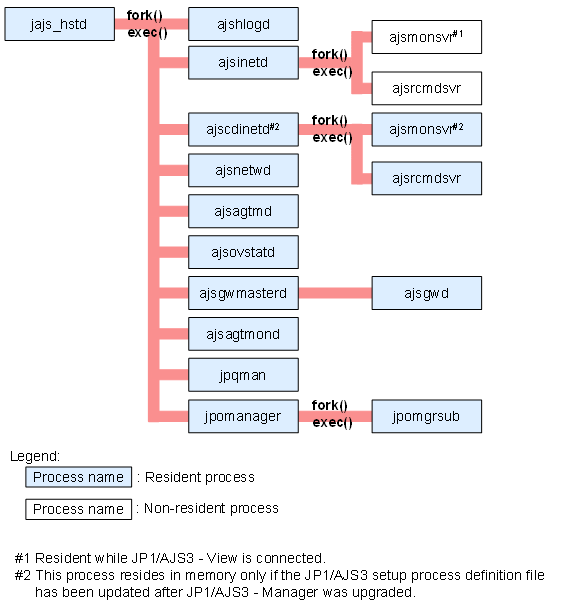

Figure B‒3: JP1/AJS3 processes (child and detail processes) (2/3)

[Figure]

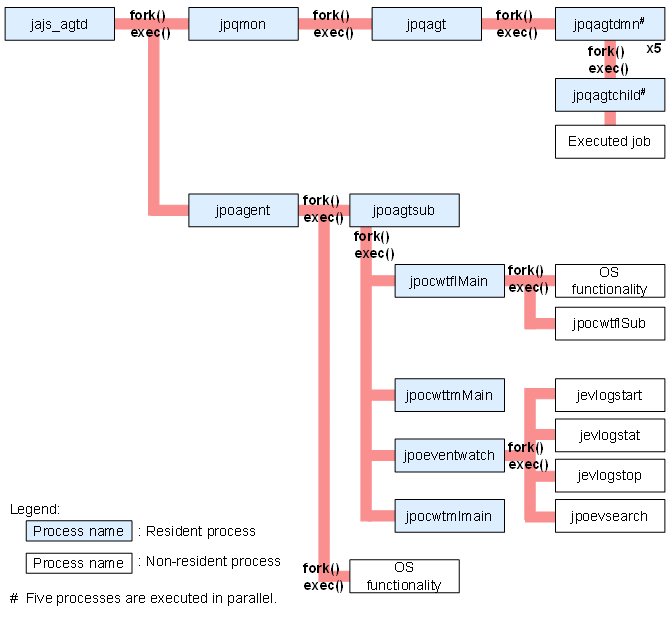

Figure B‒4: JP1/AJS3 processes (child and detail processes) (3/3)

[Figure]
