10.1.2 System configurations supported by JP1/AJS3

This subsection describes the configurations of cluster systems supported by JP1/AJS3.

Organization of this subsection

(1) Conditions for the system configuration

A cluster system in which JP1/AJS3 operates must satisfy the following conditions:

(2) Examples of supported system configurations

(a) Active-standby configuration

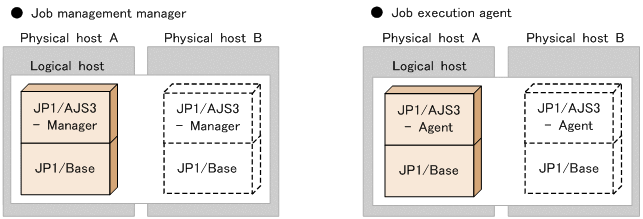

The following figure shows an example of an active-standby configuration.

[Figure]

(b) Active-active configuration

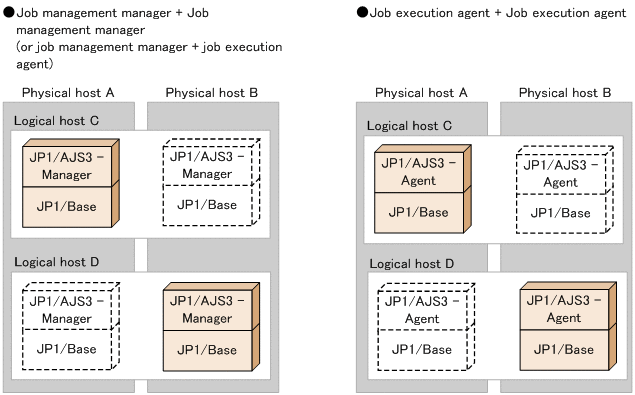

The following figure shows an example of an active-active configuration.

[Figure]

(c) Three-node configuration

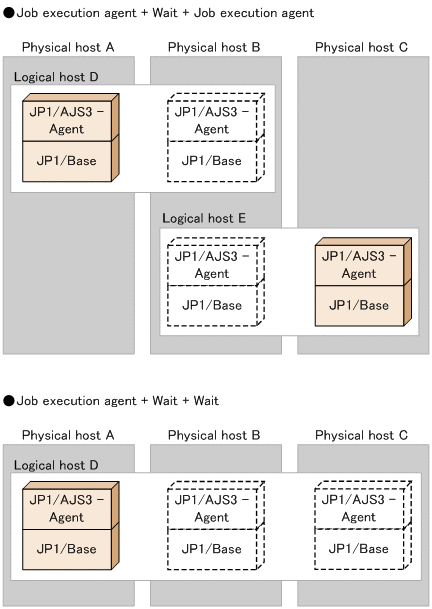

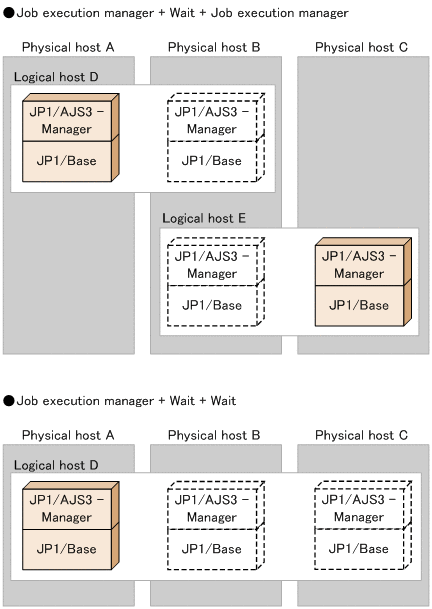

The following figure shows an example of a three-node configuration.

[Figure]

[Figure]

Remarks on JP1/AJS3 operation in a cluster system that uses three or more nodes:

JP1/AJS3 operates in a logical host environment managed by cluster software (with a shared disk and logical IP address). The operation does not differ depending on the number of nodes.

There will be no particular problem with JP1/AJS3 operation in a cluster system consisting of three or more nodes, as long as the logical host environment is normally managed by cluster software.
