7.3.6 Checking execution schedules after registering a release
After registering a jobnet-definition release, you can use the JP1/AJS3 - View Daily Schedule window and Monthly Schedule window to check the execution schedules. The following describes how the execution schedules are displayed when release entry is performed with release ID 001 and a release time of 00:00 on April 2 specified.
- Organization of this subsection
(1) Display in the Daily Schedule window

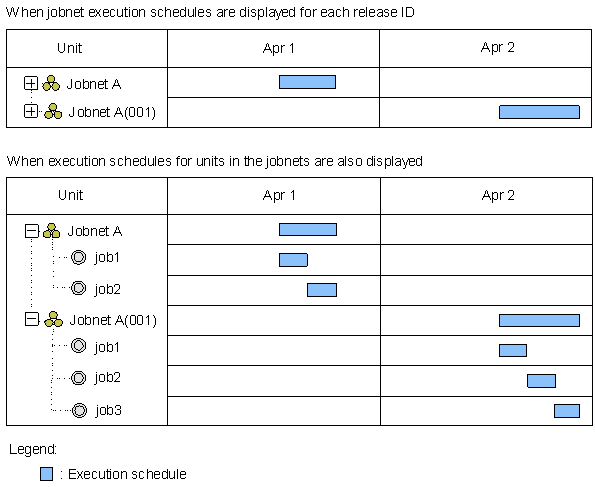

The following figure shows the execution schedules displayed in the Daily Schedule window.
|
|
![[Figure]](GRAPHICS/ZJ080055.GIF)
The initial screen of the Daily Schedule window displays the execution schedules in root-jobnet-name(release-ID) format for each jobnet definition. However, if the release ID is AJS_AUTO, only the root jobnet name is displayed without a release ID. When the root jobnet is expanded, the execution schedules for the units in the jobnet are displayed.
(2) Display in the Monthly Schedule window

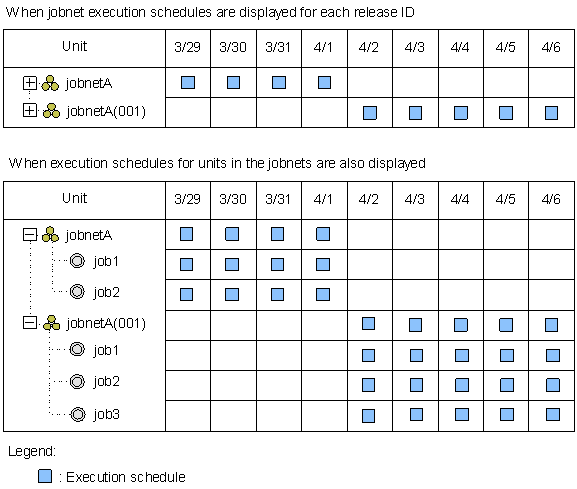

The following figure shows the execution schedules displayed in the Monthly Schedule window.
|
|
![[Figure]](GRAPHICS/ZJ080060.GIF)
The initial screen of the Monthly Schedule window displays the execution schedules in root-jobnet-name(release-ID) format for each definition of the jobnet. However, if the release ID is AJS_AUTO, only the root jobnet name is displayed without a release ID. When the root jobnet is expanded, the execution schedules for the units in the jobnet are displayed.
Note that a jobnet that has release information does not inherit statistical information for the jobnet definition before release. The scheduled generation immediately after release is handled as a jobnet that has never been executed before. Therefore, for execution simulation performed in the Daily Schedule window or Monthly Schedule window, the value of First execution time in the Preferences dialog box is used as the time required for executing the scheduled generation immediately after release.
