2.3.1 Overview of recovery

The following provides an overview of recovery.

Organization of this subsection

(1) Recovery procedure

The following figure shows the recovery procedure.

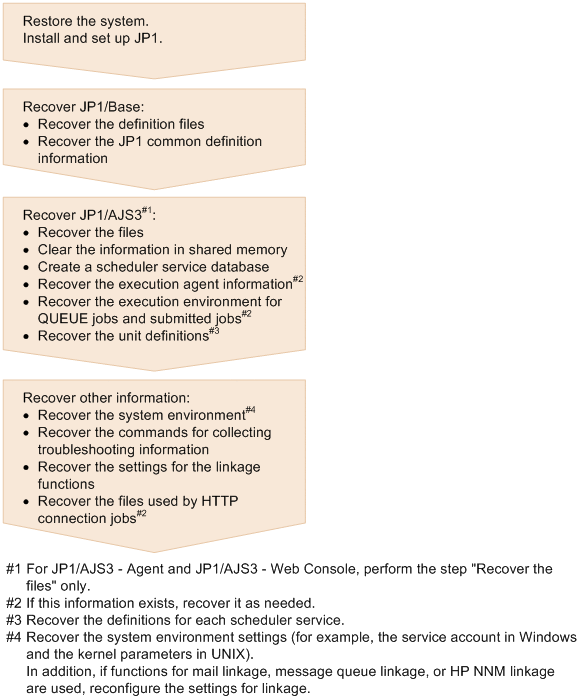

Figure 2‒4: Recovery procedure

The following explains the recovery procedure when a cluster system is used.

To recover a physical host environment, use the setup information you backed up and follow the procedure below.

Note that you must perform the recovery on both the executing host and standby host.

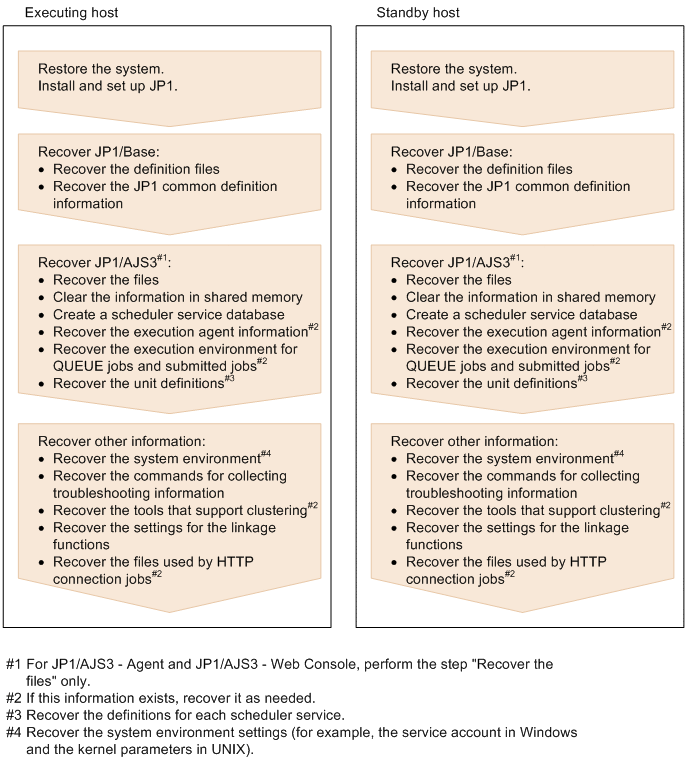

Figure 2‒5: Procedure for recovering the physical host environment

To recover a logical host environment, use the setup information you backed up and follow the following procedure.

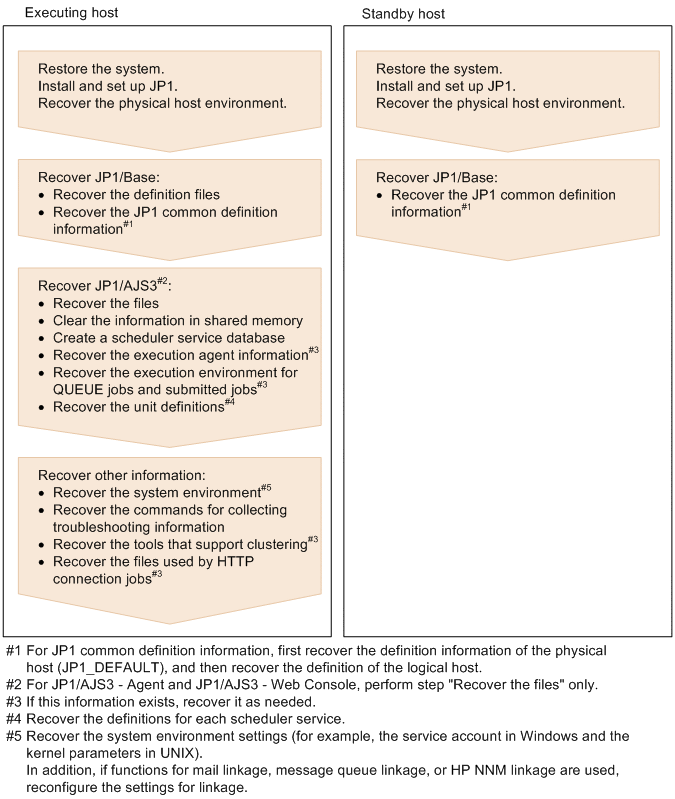

Figure 2‒6: Procedure for recovering the logical host environment
