8.1.2 Setup required for cluster system operation

This subsection describes the procedure for setting up a Windows host when you are constructing a system that uses JP1/AJS3 for cluster operation.

Organization of this subsection

(1) Points to be noted when setting up a cluster system

Verify that the cluster system is compatible with the cluster software to be used before starting setup and operation. For details about the setup of a cluster system, see the documentation for the cluster system to be used.
Before setting up a cluster system for JP1/AJS3, set up a cluster system for JP1/Base. For JP1/AJS3 - Web Console, however, you do not have to set up JP1/Base.
On the primary and secondary nodes, install JP1 series programs in the same folders in the same drive.
For the setup required for JP1/AJS3, also see 3. Setup.

The following figure shows the procedure to set up JP1/AJS3 - Manager for cluster operation.

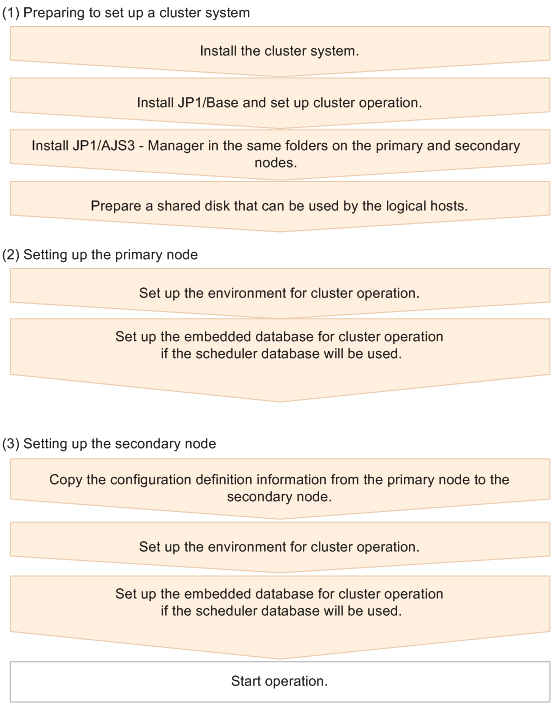

Figure 8‒1: Setup procedure to enable cluster operation (in Windows version of JP1/AJS3 - Manager)

The following figure shows the procedure to set up JP1/AJS3 - Agent for cluster operation.

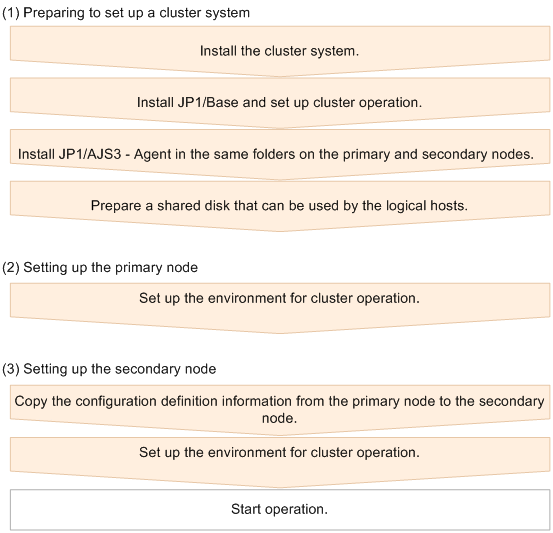

Figure 8‒2: Setup procedure to enable cluster operation (in Windows version of JP1/AJS3 - Agent)

The following figure shows the procedure to set up JP1/AJS3 - Web Console for cluster operation.

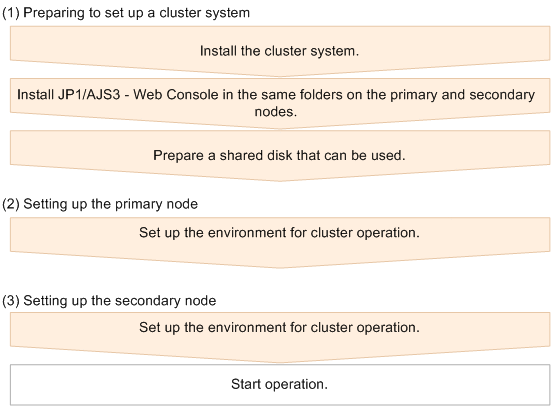

Figure 8‒3: Setup procedure to enable cluster operation (in Windows version of JP1/AJS3 - Web Console)
