1.3 Flow of work task automation

JP1/AJS3 automates work tasks based on the individual components that make up each task, such as commands, application programs, and shell scripts. Each component is defined as a job. When assigned an execution schedule, these jobs collectively form a jobnet, which can be executed automatically at a date and time determined by one or more schedule rules.

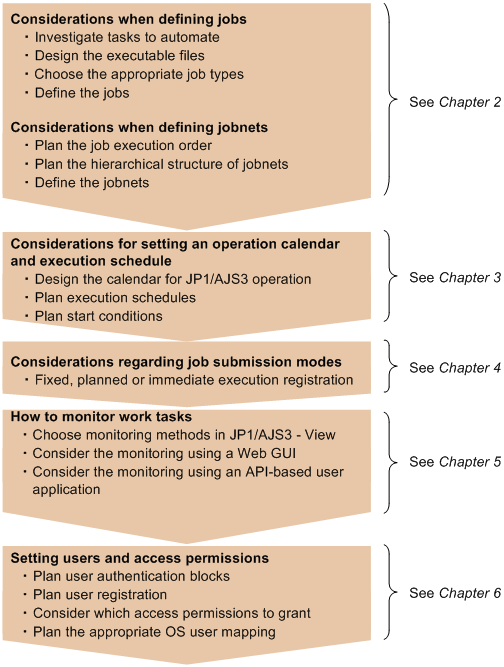

The following figure shows the flow of work task automation in JP1/AJS3.
