4.5.7 Adding display items to a window

You can add display items (columns) to the following areas in JP1/AJS3 - View:

• List area in the JP1/AJS3 - View window (Main window)

• Execution result list in the Daily Schedule window

• Execution result list in the Monthly Schedule window

• Search result list area in the Search window

• List area in the Jobnet Editor window

• List area in the Jobnet Monitor window

You can add items to these windows that you would otherwise have to check in another window or in the Monitor Details dialog box. This makes monitoring work more efficient.

The following figure shows an example of display items added in each area.

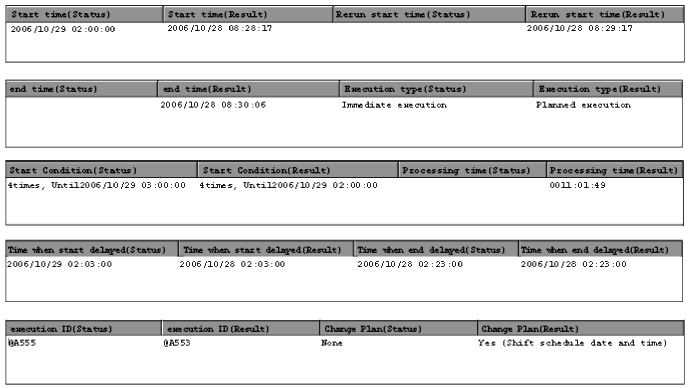

Figure 4‒8: Example of a window with additional display items

For details about how to change the display items, see 11.4.6 Specifying the columns displayed in the list area in the JP1/Automatic Job Management System 3 Operator's Guide.

For details about the display items that can be added and the dialog boxes, see 12.3.46 Display Item Setup dialog box in the JP1/Automatic Job Management System 3 Operator's Guide.
