2.12.1 Considering the system configuration to be used if JP1/AJS3 - Agent is installed in containers

This section describes the JP1/AJS3 system configuration in a container environment.

A JP1/AJS3 system in which JP1/AJS3 - Agent is installed in containers can have one of the following three configurations:

• JP1/AJS3 - Manager is installed on a container host machine and JP1/AJS3 - Agent is installed in each container.

• A manager host is prepared, and JP1/AJS3 - Agent is installed both on a container host machine and in each container.

• A manager host is prepared, and JP1/AJS3 - Agent is installed in only each container on a container host machine.

The following figures show examples of the preceding system configurations.

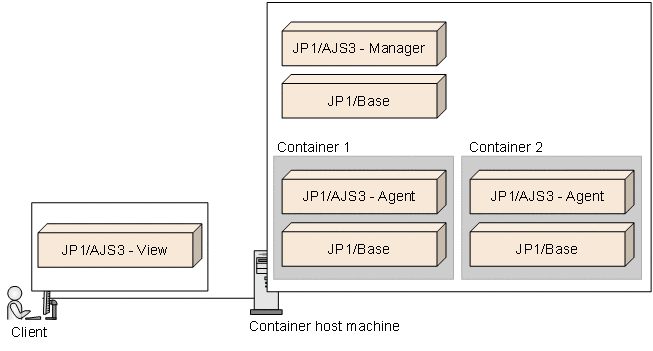

Figure 2‒78: JP1/AJS3 system configuration in a container environment (1): JP1/AJS3 - Manager is installed on a container host machine and JP1/AJS3 - Agent is installed in each container

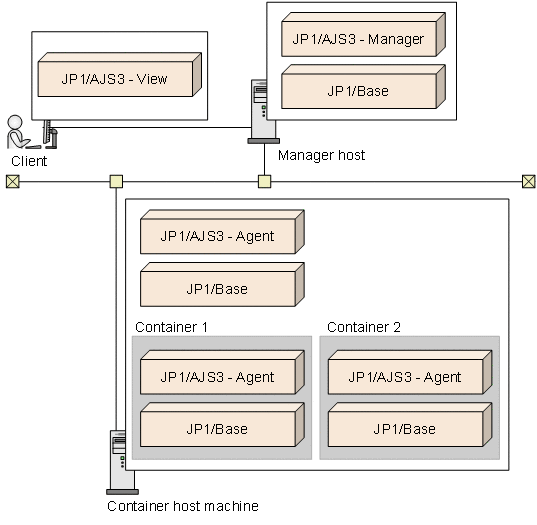

Figure 2‒79: JP1/AJS3 system configuration in a container environment (2): JP1/AJS3 - Agent is installed both on a container host machine and in each container, with a manager host prepared

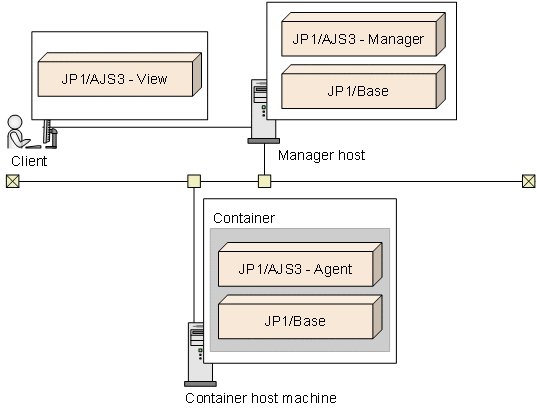

Figure 2‒80: JP1/AJS3 system configuration in a container environment (3): JP1/AJS3 - Agent is installed in only each container on a container host machine, with a manager host prepared

For details about the setup procedure for installing JP1/AJS3 - Agent in a container, see 21.8 Settings for installing JP1/AJS3 - Agent in containers in the JP1/Automatic Job Management System 3 Configuration Guide.
