2.8.1 Operation example for replicating a virtual machine on which JP1/AJS3 - Manager is set up

The following figure shows an operation example for replicating a virtual machine on which JP1/AJS3 - Manager has been set up.

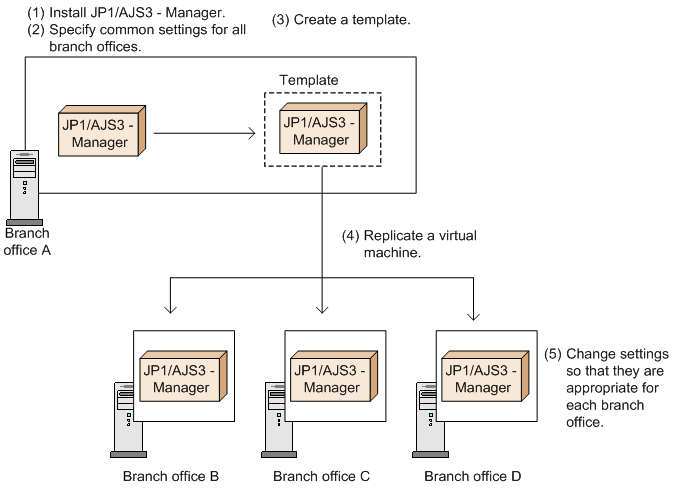

Figure 2‒59: Operation example for replicating a virtual machine on which JP1/AJS3 - Manager has been set up

This example shows how a virtual machine environment set up for branch office A is replicated to other branch offices. In this example, a template means the original virtual machine.

The following describes the general procedure for this example:

1. Install JP1/AJS3 - Manager on a virtual machine in branch office A.

2. On the virtual machine for branch office A, set up the common environment settings for the branch offices.

3. Create a template based on the virtual machine for branch office A.

4. Replicate the template as virtual machines for branch offices B, C, and D.

5. On the virtual machine for each branch office, specify settings for each respective branch office.
