JP1 Version 12 JP1/Automatic Job Management System 3 System Design (Configuration) Guide

2.4.2 Language type and character encoding of the system

This subsection describes the language type and character encoding used in JP1/AJS3.

Organization of this subsection

(1) Available language types

You can use Japanese, English, or Chinese in JP1/AJS3. The language should be used according to intended usage.

To Page Top

(2) Values that can be specified in the LANG environment variable

In UNIX, to set the systems language environment, use the LANG environment variable. The table below lists the values that can be specified in the LANG environment variable. Use this table to select a value. If you do not use a value listed in this table, C (English) will be set. Operation is not guaranteed if the values specified in this table are not specified.

For details about operation using a language other than Japanese, English, or Chinese, see (11) About the operations in multiple language environments.

In Windows, the system language environment cannot be changed.

Table 2‒30: Values that can be specified in the LANG environment variable

OS

Language and character encoding

Value of LANG environment variable

HP-UX

Japanese

Shift-JIS

  • ja_JP.SJIS

  • japanese

EUC

  • ja_JP.eucJP

  • japanese.euc

UTF-8

  • ja_JP.utf8

English

ASCII

  • C

Chinese

GB18030

  • zh_CN.gb18030

UTF-8

Cannot be used.

Solaris

Japanese

Shift-JIS

  • ja_JP.PCK

EUC

  • ja

  • ja_JP.eucJP

UTF-8

  • ja_JP.UTF-8

English

ASCII

  • C

Chinese

GB18030

  • zh_CN.GB18030

UTF-8

Cannot be used.

AIX

Japanese

Shift-JIS

  • Ja_JP

  • Ja_JP.IBM-932

EUC

  • ja_JP

  • ja_JP.IBM-eucJP

UTF-8

  • JA_JP

  • JA_JP.UTF-8

English

ASCII

  • C

Chinese

GB18030

  • Zh_CN.GB18030

UTF-8

Cannot be used.

Linux

Japanese

Shift-JIS

  • ja_JP.SJIS#

  • ja_JP.sjis#

EUC

Cannot be used.

UTF-8

  • ja_JP.UTF-8

  • ja_JP.utf8

English

ASCII

  • C

Chinese

GB18030

  • zh_CN.gb18030

UTF-8

Cannot be used.
#

Can only be used in SUSE Linux.

Cautionary note

The character encoding used in JP1/AJS3 must be the same as the one used in JP1/Base. There might be some cases in which a character encoding usable in JP1/Base cannot be used in JP1/AJS3.

To Page Top

(3) Whether language settings can be mixed in the same device

If JP1/AJS3 is used on a logical host, whether hosts with mixed language types can exist or not depends on the host OS.

In Windows:

Hosts with different language types cannot exist on the same device. All the logical hosts and physical hosts must have the same language type.

In UNIX:

If the language types of all the hosts on the same device are Japanese or English, hosts with different language types can exist. Therefore, the language type can be either Japanese or English for each logical host.

However, hosts whose language settings are set to Chinese, Korean, German, French, Spanish or Russian cannot exist on the same device as another host that has a different language setting. The language type on all the logical hosts and physical hosts must be the same.

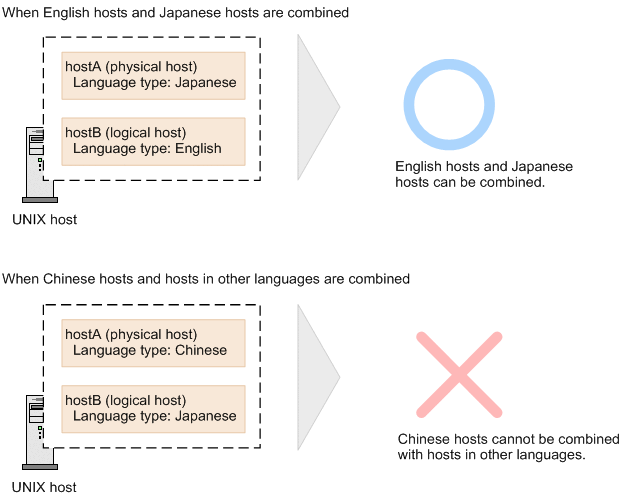

The following figure shows an example in which mixed language types exist on the same device.

Figure 2‒45: Example of mixed language types on the same device

[Figure]

In JP1/AJS3 - Manager, the character encoding of the host must match the character encoding of the scheduler service. The host and scheduler service cannot have different character encodings.

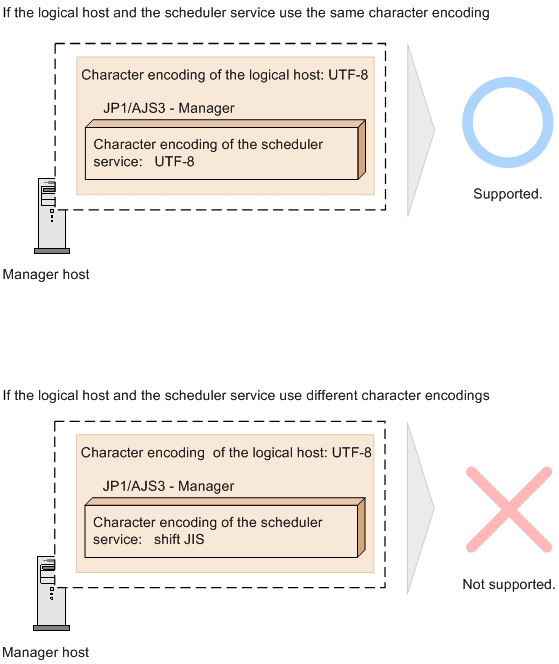

The following figure shows an example of mixed character encodings on the host and the scheduler service.

Figure 2‒46: Example of mixed character encodings on the host and the scheduler service

[Figure]

To Page Top

(4) Whether language settings can be mixed within a system

The following table shows whether a combination of language settings is allowed when hosts with different language types are combined in JP1/AJS3.

Table 2‒31: Whether combinations are allowed when different language types are combined in JP1/AJS3

JP1/AJS - Agent, JP1/AJS - View, or JP1/AJS - Web Console

Japanese

English

Chinese

JP1/AJS - Manager

Japanese

Yes

(Yes)2

(Yes)2

English

(Yes)2

Yes

(Yes)2

Chinese

(Yes)2

(Yes)2

(Yes)1
Legend:

Yes: Supported. If the language type is Japanese, hosts with a different character encoding can exist.

(Yes)1: Supported. The character encoding must be unified to the Chinese character encoding.

(Yes)2: Supported only when all the characters and information are unified to alphanumeric characters (ASCII).

Cautionary note

The combinations (Yes)2 in Table 2-31 are environments of hosts with different language types. In this case, set alphanumeric characters (ASCII) for all texts and information including the unit name, file name, characters used in files, messages in jobs being executed, monitoring conditions for event jobs, and inherited information. If a character other than ASCII is used, the following conditions might occur:

  • Characters are garbled.

  • A standard job and HTTP connection job are placed in the Ended abnormally status or operate incorrectly.

  • An event job is placed in the Ended abnormally status, cannot be detected, or is detected incorrectly.

  • A process terminates abnormally.

To Page Top

(5) Overview of steps to set the language type and character encoding

This subsection gives an overview of the steps to set the language type and character encoding.

(a) If JP1/AJS3 is installed in a new installation

If JP1/AJS3 - Manager, JP1/AJS3 - Agent, or JP1/AJS3 - View is newly installed, the language type is automatically decided during the installation.

In Windows:

The required language setting is automatically set according to the language type of the OS.

In UNIX:

The required language setting is automatically set according to the LANG environment variable when Hitachi Program Product Installer is started. If necessary, specify the LANG environment variable before starting Hitachi Program Product Installer.

Cautionary note

If you cannot define a job that includes a multi-byte character of the specified language or such a job cannot be executed properly, the LANG environment variable specified during the installation might have been wrong. See 7.9.6 Changing the language environment of the system in the JP1/Automatic Job Management System 3 Administration Guide and change the language setting.

(b) If JP1/AJS3 is installed in an overwrite installation or upgrade installation

If you install JP1/AJS3 in an overwrite installation or upgrade installation, the language setting before the installation is inherited.

(c) When a logical host is used

Specify the language setting on a logical host after setting up the logical host by using the jajs_setup_cluster command. For details about the jajs_setup_cluster command, see jajs_setup_cluster in 2. Commands Used during Setup in the manual JP1/Automatic Job Management System 3 Command Reference.

The following shows the language setting required for setting up a logical host:

In JP1/AJS3 - Manager for Windows:

The language setting of the logical host is inherited from the physical host by the jajs_setup_cluster command. Because hosts with different language types cannot exist in Windows, do not change the language setting on the logical host.

In JP1/AJS3 - Manager for UNIX:

The language setting of the logical host is inherited from the physical host by the jajs_setup_cluster command.

If you operate a logical host with a language type different from the one used on the physical host, see 7.9.6 Changing the language environment of the system in the JP1/Automatic Job Management System 3 Administration Guide. Referring to the guide, execute the jajs_setup_cluster command, and then change the language setting on the logical host and the scheduler service.

Cautionary note

The -E option for the jajs_setup_cluster command can only be specified when the character encoding of the logical host is UTF-8. The -E option enables you to specify the same number of characters for names including the unit names between the Shift-JIS environment and the UTF-8 environment. When the -E option is specified, the character encoding of the scheduler database is set to UTF-8, so the character encoding of the logical host must be set to UTF-8.

In JP1/AJS3 - Agent:

The language setting is inherited from the physical host. If you operate a logical host with a language type different from the one used on the physical host, see 7.9.6 Changing the language environment of the system in the JP1/Automatic Job Management System 3 Administration Guide. Referring to the guide, change the language setting on the logical host after executing the jajs_setup_cluster command.

(d) When a scheduler service is added (JP1/AJS3 - Manager only)

If you execute the jajs_setup command to add a scheduler service, the character encoding for the added scheduler service (the value of the AJSCHARCODE environment setting parameter) must match the character encoding on the logical host.

The following table lists the default character encoding of the scheduler service added by the jajs_setup command, and the value of the AJSCHARCODE environment setting parameter.

Table 2‒32: Language setting when a scheduler service is newly added

OS

Default character encoding of the scheduler service

The value of the AJSCHARCODE environment setting parameter

Windows

Shift-JIS

SJIS

HP-UX

Shift-JIS

SJIS

Solaris

EUC

EUC

AIX

Shift-JIS

SJIS

Linux

UTF-8

UTF-8

For details about how to change the character encoding, see 7.9.6 Changing the language environment of the system in the JP1/Automatic Job Management System 3 Administration Guide.

Cautionary note

The -E option for the jajs_setup command, which enables you to specify the same number of characters for names including the unit names between the Shift-JIS environment and the UTF-8 environment, can only be specified when the character encoding of the logical host is UTF-8. When the -E option is specified, the character encoding of the scheduler database is set to UTF-8, so the character encoding of the logical host must be set to UTF-8.

To Page Top

(6) Locations of the character encoding setting (UNIX only)

When you specify a character encoding in JP1/AJS3 - Manager or JP1/AJS3 - Agent, you must set the same character encoding for the definition files, environment variables, and environment setting parameters listed in the table below. For details about how to specify the character encoding, see 7.9.6 Changing the language environment of the system in the JP1/Automatic Job Management System 3 Administration Guide.

Table 2‒33: Locations of the character encoding setting (JP1/AJS3 - Manager or JP1/AJS3 - Agent)

Settings (definition files, environment variables, and environment setting parameters)

What the change affects

Related products

The LANG environment variable applied when the JP1/AJS3 service starts

The character encoding of messages output from the JP1/AJS3 service.

M, A

JP1/AJS3 environment definition file

  • For a physical host:

    /etc/opt/jp1ajs2/conf/jp1ajs_env.conf

  • For a logical host:

    The LANG environment variable in: shared-directory/jp1ajs2/conf/jp1ajs_env.conf

  • Value of the LANG environment variable to be applied when the JP1/AJS3 service starts.

  • The character encoding of the information to be output to integrated trace logs and internal logs by schedule control, event/action control, and job execution control.

  • When the user profile does not contain the LANG environment variable, the default for LANG during job execution.

M, A

JP1/Base parameter definition file

  • For a physical host:

    /etc/opt/jp1base/conf/jp1bs_param.conf

  • For a logical host:

    shared-directory/jp1base/conf/jp1bs_param.conf

  • The character encoding of the data to be exchanged between the JP1/AJS3 manager host and agent host when standard jobs, HTTP connection jobs, event jobs, action jobs, and custom jobs are executed.

  • The character encoding set of the data to be exchanged between the jobnet connector and the connected jobnet when the jobnet connector is used to control the execution order of root jobnets.

M, A

AJSCHARCODE parameter in the scheduler service environment definition

The character encoding of the information that will be stored in the scheduler database.

M

SYSLOGCODE #1parameter in the scheduler service environment definition

  • The character encoding of messages output by the scheduler services to SYSLOG.

  • The value of the LANG environment variable used at the start of the service when a value other than C (English) is specified.

M

The LANG environment variable#3 when a command#2 for unit operation is executed

  • The values stored in the scheduler database by the command that operates on the unit.

  • The log data and character encoding of messages that are output by the command that operates on the unit.

M

The LANG environment variable when a command#5 used to operate execution agents

The values stored in the agent management database.

M

The AJSI18N environment setting parameter in the JP1/AJS3 shared information

The entire JP1/AJS3

M, A

The LANG environment variable when the queueless agent service is started

The character encoding of the messages output by the queueless agent service.

M, A

The AJSQL_CHARCODE#4 environment setting parameter in the queueless job execution environment setting

  • Data accepted from the scheduler service

  • Transfer file data

  • Result file data

  • Reply data to the scheduler service

M, A

The LANG environment variable when the JP1/AJS3 Autonomous Agent service and the JP1/AJS3 Autonomous Agent Messenger service start

Messages output by flexible job processes and the job execution results when the LANG environment variable is not specified in the login profile of the root user

M, A
Legend:

M: JP1/AJS3 - Manager

A: JP1/AJS3 - Agent

#1

Specify C if you use Chinese.

#2

For details about the commands for manipulating units, see 1.5 Commands in the manual JP1/Automatic Job Management System 3 Command Reference.

#3

Specify the character encoding that is specified in the AJSCHARCODE environment setting parameter of the scheduler service where the unit to be manipulated by the command is defined. If you use Chinese, specify a value that corresponds to the GB18030 character encoding.

#4

If the manager host and the agent host use different character encodings, the AJSQL_CHARCODE environment setting parameter must be specified to enable character encoding conversion. For details about character encoding conversion for a queueless job, see 7.2.2 Environment settings for executing queueless jobs.

#5

For details about the commands used to operate execution agents, see 1.5.5 Commands used to operate execution agents in the manual JP1/Automatic Job Management System 3 Command Reference.

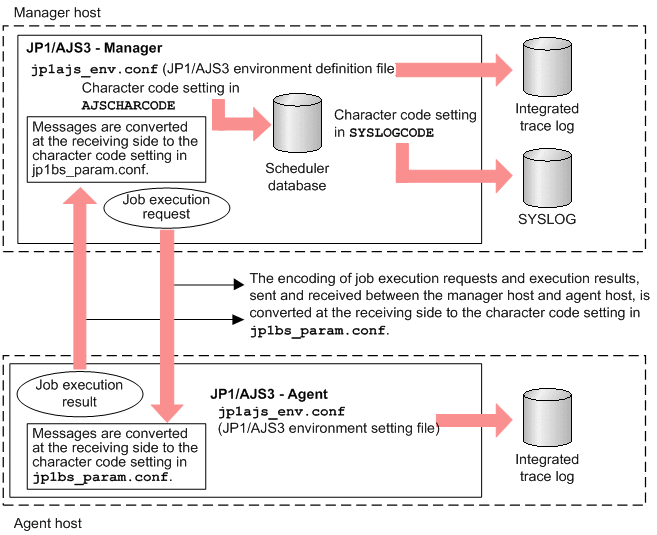

The following figure shows the sections affected when the character encoding is changed.

Figure 2‒47: Sections affected when the character encoding is changed

[Figure]

When you specify a character encoding in JP1/AJS3 - Web Console, you must set the same character encoding for the definition files and environment variables listed in the table below.

Table 2‒34: Locations of the character encoding setting (JP1/AJS3 - Web Console)

Settings (definition files and environment variables)

What the change affects

The LANG environment variable applied when the JP1/AJS3 HTTP Server service starts#1

The character encoding of internal logs that are output by JP1/AJS3 HTTP Server.

The LANG environment variable applied when the JP1/AJS3 Web Application Server service starts#1

The character encoding of internal logs that are output by JP1/AJS3 Web Application Server.

Environment definition file

The language type setting for the messages output to logs specified in /etc/opt/jp1ajs3web/conf/ajs3web.conf #2

The character encoding of messages that are output to the integrated trace log, command log, and application server log.
#1

If automatic startup is enabled, the value specified in the LANG= line in the service automatic start script is applied.

#2

If the setting is system, the character encoding specified in the LANG environment variable at the start of the JP1/AJS3 Web Application Server service is applied.

To Page Top

(7) Cautionary notes when Japanese is used as a language type

The following provides cautionary notes when Japanese is used as a language type.

(a) Available characters

If the language type is Japanese, you can use the following characters with JP1/AJS3:

  • ASCII and JIS characters

  • Single-byte katakana characters

  • JIS X 0208-1990

Some characters cannot be used with the following character encodings:

  • If the encoding is SJIS, EUC, or UTF-8:

    External characters and machine-dependent characters cannot be used.

  • If the encoding is EUC:

    If the character encoding used in JP1/AJS3 - Manager is EUC, the following characters cannot be used:

    [Figure]

  • If the character encoding is UTF-8:

    If the character encoding used in JP1/AJS3 - Manager is UTF-8, the following characters cannot be used:

    [Figure]

    Note that if the OS is UNIX, all text information used in JP1/AJS3 must be specified by using UTF-8-encoded strings in the shortest form. That text information includes unit names, file names, file contents, messages to be output during job execution, conditions for monitoring event jobs to be run, and information to be passed to event jobs. If a non-shortest form is used, JP1/AJS3 might be unable to operate correctly.

The 3rd level and 4th level Kanji characters added in JIS 2004 cannot be used.

(b) Cautionary notes when mixed types of character encodings exist

■ Cautionary notes when the manager host and agent host have different character encodings

If the language type is Japanese or English, and the manager host and agent host have different character encodings, the character encodings are converted to the one used by the communication destination when the manager host communicates with the agent host. The following lists the definitions, input files, and execution results whose character encodings are converted. That is, if data is transmitted from the manager to the agent, the data is converted to the character encoding used at the agent. If data is transmitted from the agent to the manager, the data is converted to the character encoding used at the manager. This conversion of the character encoding occurs for the following definitions, input files, and execution results.

For PC jobs, Unix jobs, flexible jobs, and QUEUE jobs
Definitions

  • Name of executable file

  • Command statement

  • Parameter

  • Script file name

  • Environment variable

  • Environment variable filename

  • Name of the work directory used during agent process execution

  • Standard input filename

  • Standard output filename

  • Standard error output filename

  • Transfer filename

  • Job name (for QUEUE job)

  • Values of macro variables defined in jobs

Input files

  • Contents of transfer files 1 to 4

Execution results

  • Contents of the standard output file

  • Contents of the standard error output file (execution result details)

HTTP connection jobs
Definitions

  • Conn. configuration file name

  • Trans. info. file name

  • Trans. info. file name (URL parameter)

  • Trans. info. file name (message body)

  • Status file name

  • Received header file name

  • Received body file name

  • Standard output file name

  • Standard error output file name

Execution results

  • Contents of the standard output file

  • Contents of the standard error output file (execution result details)

Action jobs and custom jobs
Definitions

  • Information defined for jobs

  • Values of macro variables defined in jobs

Execution results

  • Contents of the standard error output file (execution result details)

Event jobs
Definitions

  • Information defined for jobs

Execution results

  • Contents of the standard error output file (execution result details)

  • Inherited information (values of macro variables defined in jobs)

In the case of Chinese, the character encoding is not converted at the time when the manager host communicates with the agent host. All the manager hosts and agent hosts must have the Chinese character encoding.

■ Cautionary notes when mixed Japanese character encodings are used

The following restrictions apply to combining different types of Japanese character encodings.

  • Remote execution of commands

    When a command is remotely executed, the same character encoding must be set for the host where the command is entered and for the host where the command is executed.

    If the character encoding on the host where the command is executed is UTF-8, you can remotely execute the command by setting EUC as the character encoding of the host where the command is entered.

    For details about remote execution of commands, see 1.1.7 Remote execution of a command in the manual JP1/Automatic Job Management System 3 Command Reference.

    The character encoding of the host where the command is entered is the character encoding specified in the OS by using the LANG environment variable, for example.

    The character encoding of the host where the command is executed refers to one of the following:

    • Character encoding specified in the AJSCHARCODE environment setting parameter

    • Setting of the OS used when the JP1/AJS3 service is started

  • Remote jobnet

    When a remote jobnet is executed, the character encodings of the host where the remote job is defined and the host where the remote job is executed must match.

    The character encoding of the host where the remote job is defined and the character encoding of the host where the remote job is executed refer to one of the following:

    • Character encoding specified in the AJSCHARCODE environment setting parameter on each host

    • Setting of the OS used when the JP1/AJS3 service is started

  • Unix job, HTTP connection job, flexible job, action job, and event job

    For JP1/AJS3 - View or a command, if the definition items for a job executed on the agent host in a UTF-8 environment contain Japanese characters, assume that one Japanese character requires 4 bytes. Based on this assumption, define the job so that the maximum value for each item is not exceeded. If sjis is specified for the DEFLENTYPE environment setting parameter, the maximum number of characters that can be specified for the following items is the same as in a Shift-JIS environment:

    • Unit name in the detailed unit definition

    • Comment in the detailed unit definition

    • Exclusive jobnet in the schedule settings

    A Unix job, action job, or event job can be executed in a system configuration where the manager host operates in a Shift-JIS or EUC environment and the agent host operates in a UTF-8 environment. In this case, the number of bytes converted to the character encoding of the agent host is checked as the size of the information defined for the job. As a result, a job execution error might occur even if the definition in JP1/AJS3 - View or a command does not exceed the maximum number of bytes that can be entered for job items.

  • Event job

    If the sum of the size of the event job passing information and the size of the macro variable name exceeds 4,096 bytes on the agent host, the excess data is truncated.

    To pass information containing Japanese characters in a UTF-8 environment, assume that one Japanese character requires 4 bytes.

    To use JP1/AJS3 that does not support UTF-8 to receive JP1 events issued from a UTF-8 environment, configure JP1/Base to run in character encoding compatibility mode. If you do not use character encoding compatibility mode, a JP1 event might not be detected correctly or another kind of error might occur.

    For details on the character encoding compatibility mode, see JP1/Base User's Guide.

  • Commands used for executing submit jobs

    If a command is executed from a host in a Shift-JIS or EUC environment for a manager host in a UTF-8 environment, an error might occur on the manager host even when the values of the options do not exceed the maximum number of bytes on the command execution host. The reason for the error is that the number of bytes in the option values containing Japanese characters increases due to character encoding conversion when the command execution host transfers data to the manager host.

    Therefore, when you specify option values containing Japanese characters for commands executed on the manager host in the UTF-8 environment, assume that one Japanese character require 4 bytes. Based on this assumption, specify the options so that the value of each option is within the maximum number of specifiable bytes.

    Commands:

    jpqjobsub, jpqjobcan, jpqjobalt, jpqjobmove, jpqjobget, jpqjobshow, jpqendjobshow, jpqjobdel, jpqqueopen, jpqqueclose, jpqqueshow, jpqqueadd, jpqquedel, jpqquealt, jpqagtlink, jpqagtunlink, jpqagtshow, jpqagtadd, jpqagtdel, jpqagtalt, jpqresshow, jpqresadd, jpqresdel

■ Notes on using UTF-8 encoding

  • If a command entered from a host that uses UTF-8 encoding is remotely executed on a host for which UTF-8 is specified as the character encoding in AJSCHARCODE, you must specify no for the AJSCONVERTUTF8 environment variable. If the AJSCONVERTUTF8 environment variable is not specified or if the command is remotely executed with yes specified, characters in the display results might be garbled or processing on the unit might not be performed correctly.

    For details about the AJSCONVERTUTF8 environment variable, see 1.4 Environment variables in the manual JP1/Automatic Job Management System 3 Command Reference.

  • For details about the characters that you can use in a UTF-8 environment, see (a) Available characters.

  • If a queueless job entered from the manager host that uses UTF-8 encoding is executed on an agent host that does not support UTF-8 encoding, you must specify the QLMANCHARCODE environment setting parameter on the manager host. For details about the QLMANCHARCODE environment setting parameter, see 20.10 Setting up the queueless job execution environment in the JP1/Automatic Job Management System 3 Configuration Guide.

  • If UTF-8 encoding is used and sjis is specified for the DEFLENTYPE environment setting parameter, the number of characters that can be specified for the following items is the same as in a Shift-JIS environment:

    • Unit name in the detailed unit definition

    • Comment in the detailed unit definition

    • Exclusive jobnet in the schedule settings

    Note, however, that the maximum number of nested units (maximum number of levels) is 10 (the default is 30).

  • For a version of JP1/AJS3 - View earlier than 09-50, if sjis is specified for the DEFLENTYPE environment setting parameter, a scheduler service and its lower units are not displayed. If sjis is specified for the DEFLENTYPE environment setting parameter for all scheduler services, the KAVV187-E message is output and none of the scheduler services or their lower units are displayed. If you use the ajs command or manager jobnet to access the scheduler service for which sjis is specified for the DEFLENTYPE environment setting parameter, the KAVV455-E message is output. The scheduler service and its lower units are not displayed.

To Page Top

(8) Cautionary notes when the Chinese language type is used

Only GB18030-2000 characters of 2 bytes or less can be used. Operation is not guaranteed if any other character is used.

Cautionary note

When using the Chinese language, the following characters might not be displayed correctly:

  • Euro symbol (code:0xA2E3)

  • Comma (code:0xA6D9) #

  • Period (code:0xA6DA) #

  • Punctuation mark (code:0xA6DB) #

  • Colon (code:0xA6DC) #

  • Semicolon (code:0xA6DD) #

  • Exclamation mark (code:0xA6DE) #

  • Question mark (code:0xA6DF) #

  • Left black lenticular bracket (white) (code:0xA6EC) #

  • Right black lenticular bracket (white) (code:0xA6ED) #

  • Ellipses (code:0xA6F3) #

#

For vertically written text.

To Page Top

(9) Cautionary notes common to all the language types

If you use an unsupported character in a definition item, such as a unit name, the following problems might occur. Unsupported characters cannot be used even in a stand-alone configuration.

Make sure that the data or files listed below do not contain unsupported characters. If there are any unsupported characters, the same problems as when unsupported characters are used in definition items might occur.

#1

Applicable for the following passing information:

  • The information on which passing information is specified in the event job definition for passing the event information received by an event job to a succeeding job or jobnet

    For details about how to pass the information received by an event job, see 2.4.4(6) Passing information received by an event job in the JP1/Automatic Job Management System 3 System Design (Work Tasks) Guide.

  • Passing information specified by a passing information settings job

    For details about the passing information settings job, see 2.4.9 Passing information that changes dynamically to a succeeding unit (example of defining a jobnet that uses a passing information setting job) in the JP1/Automatic Job Management System 3 System Design (Work Tasks) Guide.

#2

Applicable when the data is in the job execution results specified for a PC job, Unix job, or flexible job. For details about the standard error output and Standard output, see 12.4.6 Define Details - [UNIX Job] dialog box in the JP1/Automatic Job Management System 3 Operator's Guide, or 12.4.7 Define Details - [PC Job] dialog box in the JP1/Automatic Job Management System 3 Operator's Guide.

#3

Applicable when the file is specified for a PC job or Unix job. For details about the standard input file, environment variable file and transfer file, see 12.4.6 Define Details - [UNIX Job] dialog box in the JP1/Automatic Job Management System 3 Operator's Guide, or 12.4.7 Define Details - [PC Job] dialog box in the JP1/Automatic Job Management System 3 Operator's Guide.

#4

Applicable when PC is specified as the platform in the definition items. For details about the mail linkage, see 2. Linking Mail Systems in the JP1/Automatic Job Management System 3 Linkage Guide.

To Page Top

(10) Changing the language setting during operation

If you change the language type and character encoding during operation, reinstallation of JP1/AJS3 might be required depending on the combination of JP1/AJS3 and the OS. The following table lists the combination of JP1/AJS3 and the OS and whether reinstallation is required.

Table 2‒35: Combination of JP1/AJS3 and the OS and whether reinstallation is required

Product

Windows

UNIX

JP1/AJS3 - Manager

Reinstallation is required.

Reinstallation is required.

JP1/AJS3 - Agent

Reinstallation is required.

Reinstallation is not required.

JP1/AJS3 - View

Reinstallation is required.

Not supported.

If reinstallation is required, migrate the setting information in accordance with the backup and recovery procedures. If reinstallation is not required, stop the JP1/AJS3 service, change the environment settings, and then cold-start the JP1/AJS3 service.

For details about how to change the character encoding, see 7.9.6 Changing the language environment of the system in the JP1/Automatic Job Management System 3 Administration Guide.

To Page Top

(11) About the operations in multiple language environments

Korean, German, French, Spanish or Russian can be used for the unit name and the comment in JP1/AJS3. When using multiple languages, please set the same language for the OSs on which JP1/AJS3 - Manager, JP1/AJS3 - Agent, JP1/AJS3 - View, JP1/AJS3 - Web Console will be installed. Also, please set the same language and character code for JP1/AJS3 - Manager, JP1/AJS3 - Agent, JP1/AJS3 - View, JP1/AJS3 - Web Console. If the settings of language and character code are different to connection products, please use unit name and comment in the range of ASCII code.

Note: If you are using the Russian language, you cannot set the same character encoding between Windows and Linux products, because Windows and Linux products use different character encodings. Therefore, the OSs used should be uniformly set to either Windows or Linux.

The following shows the procedure for specifying the settings required to use Korean, German, French, Spanish, or Russian. For details about how to change the language settings in the OS, see the Release Notes. For details about how to change the character encoding, see 7.9.6 Changing the language environment of the system in the JP1/Automatic Job Management System 3 Administration Guide.

(a) In Windows

■ For JP1/AJS3 - Manager and JP1/AJS3 - Agent

The detailed procedure for definition is as follows:

  1. Change the language settings in the OS.

  2. Install JP1/AJS3 - Manager or JP1/AJS3 - Agent.

  3. Execute the following command:

    jajs_config -k "[JP1_DEFAULT\JP1AJS2COMMON]" "AJSI18N"="yes"

■ For JP1/AJS3 - View

The detailed procedure for definition is as follows:

  1. Change the language settings in the OS.

  2. Install JP1/AJS3 - View.

  3. In the environment settings file (ajs.conf), add the SetCharEncodingNameI18N definition line, and then specify the appropriate value as shown in the following table.

    File storage folder

    JP1/AJS3-View-installation-folder\conf\ajs.conf

    Table 2‒36: Values that can be specified in the environment settings file (ajs.conf)

    Language

    Connection destination JP1/AJS3 - Manager OS

    Value that can be specified for SetCharEncodingNameI18N

    Korean

    Windows

    EUC_KR

    Linux

    EUC_KR

    German

    French

    Spanish

    Windows

    ISO8859_1

    Linux

    ISO8859_1

    Russian

    Windows

    CP1251

    Linux

    KOI8_R

Example: When using German language

Change from:
[STARTUP]
lang=1
Change to:
[STARTUP]
lang=1
SetCharEncodingNameI18N=ISO8859_1

■ For JP1/AJS3 - Web Console

The detailed procedure for definition is as follows:

  1. Change the language settings in the OS.

  2. Install JP1/AJS3 - Web Console.

  3. Specify the value in the following table for the I18N definition line of the environment settings file (ajscharcodemapping.properties).

    File storage folder

    Web_Data_Path#\conf\ajscharcodemapping.properties

    File storage folder for operation in a cluster system

    shared-folder\jp1ajs3web\conf\ajscharcodemapping.properties

    #

    One of the following paths is indicated in Web_Data_Path:

    If the installation folder is the default installation folder or is in a folder protected by the system:

    %ALLUSERSPROFILE%\Hitachi\JP1\JP1_DEFAULT\jp1ajs3web

    The default value for %ALLUSERSPROFILE% is system-drive\ProgramData.

    A folder protected by the system is the path to a folder in any of the following:

    - system-drive\Windows

    - system-drive\Program Files

    If the installation folder is other than the above:

    JP1/AJS3 - Web Console-installation-folder

    Table 2‒37: Values that can be specified in the environment settings file (ajscharcodemapping.properties)

    Language

    Connection destination JP1/AJS3 - Manager OS

    I18N value

    Korean

    Windows

    EUC_KR

    Linux

    EUC_KR

    German

    French

    Spanish

    Windows

    ISO8859_1

    Linux

    ISO8859_1

    Russian

    Windows

    CP1251

    Linux

    KOI8_R

Example: When using German language

Change from:
C=ASCII
SJIS=MS932
EUC=EUC_JP
UTF-8=UTF8
I18N=GB18030
Change to:
C=ASCII
SJIS=MS932
EUC=EUC_JP
UTF-8=UTF8
I18N=ISO8859_1

(b) In Linux

■  For JP1/AJS3 - Manager and JP1/AJS3 - Agent

The detailed procedure for definition is as follows:

  1. Specify C for LANG environment variable.

    export LANG=C

  2. Install JP1/AJS3 - Manager or JP1/AJS3 - Agent.

    JP1/AJS3 - Manager or JP1/AJS3 - Agent is installed with English language settings.

  3. Use the jajs_config command to set yes for the AJSI18N environment setting parameter.

    jajs_config -k "[JP1_DEFAULT\JP1AJS2COMMON]" "AJSI18N"="yes"

  4. Change the value of the LANG environment variable that is defined in the JP1/AJS3 environment definition file (jp1ajs_env.conf).

    For a physical host:

    /etc/opt/jp1ajs2/conf/jp1ajs_env.conf

    For a logical host:

    shared-directory/jp1ajs2/conf/jp1ajs_env.conf

    Table 2‒38: Values that can be specified in the LANG environment variable

    Language

    Character encoding

    Value of LANG environment variable

    Korean

    EUC-KR

    ko_KR.EUC-KR

    German

    ISO-8859-1

    de_DE.ISO-8859-1

    French

    ISO-8859-1

    fr_FR.ISO-8859-1

    Spanish

    ISO-8859-1

    es_ES.ISO-8859-1

    Russian

    KOI8-R

    ru_RU.KOI8-R

Example: When using German language

Change from:
LANG=C
Change to:
LANG=de_DE.ISO-8859-1

■ For JP1/AJS3 - Web Console

The detailed procedure for definition is as follows:

  1. Specify C for LANG environment variable

    export LANG=C

  2. Install JP1/AJS3 - Web Console

    JP1/AJS3 - Web Console is installed with English language settings.

  3. Specify the value in the following table for the I18N definition line of the environment settings file (ajscharcodemapping.properties).

    Specified place

    /etc/opt/jp1ajs3web/conf/ajscharcodemapping.properties

    Cluster configuration

    shared-directory/jp1ajs3web/conf/ajscharcodemapping.properties

    Table 2‒39: Values that can be specified in the environment settings file (ajscharcodemapping.properties)

    Language

    Connection destination JP1/AJS3 - Manager OS

    I18N value

    Linux

    Windows

    EUC_KR

    Linux

    EUC_KR

    German

    French

    Spanish

    Windows

    ISO8859_1

    Linux

    ISO8859_1

    Russian

    Windows

    CP1251

    Linux

    KOI8_R

Example: When using German language

Change from:
C=ASCII
SJIS=MS932
EUC=EUC_JP
UTF-8=UTF8
I18N=GB18030
Change to:
C=ASCII
SJIS=MS932
EUC=EUC_JP
UTF-8=UTF8
I18N=ISO8859_1

(c) When adding a scheduler service or logical host (for JP1/AJS3 - Manager only)

When you add a scheduler service or logical host in Windows or Linux, use the following procedure to change the language type settings.

  1. Run the jajs_setup or jajs_setup_cluster command to add a scheduler service.

    For details about the jajs_setup command, see jajs_setup in 2. Commands Used during Setup in the manual JP1/Automatic Job Management System 3 Command Reference.

    For details about the jajs_setup_cluster command, see jajs_setup_cluster in 2. Commands Used during Setup in the manual JP1/Automatic Job Management System 3 Command Reference.

  2. For the scheduler service that you added, change the value of the AJSCHARCODE environment setting parameter to C.

    Execute the following command:

    jajs_config -k " [{JP1_DEFAULT|logical-host-name}\JP1AJSMANAGER\scheduler-service-name]" "AJSCHARCODE"="C"

To Page Top

Copyright (C) 2019, 2022, Hitachi, Ltd.

Copyright (C) 2019, 2022, Hitachi Solutions, Ltd.
