2.2.5 Examples of system configurations that include a Web Console server

(1) The Web Console server and the manager host run on the same host

In this configuration, JP1/AJS3 - Manager and JP1/AJS3 - Web Console are installed on a single host.

The Web GUI or a user application can be used as a client along with JP1/AJS3 - View.

Note that this configuration can only be made when the host OS is Windows or Linux.

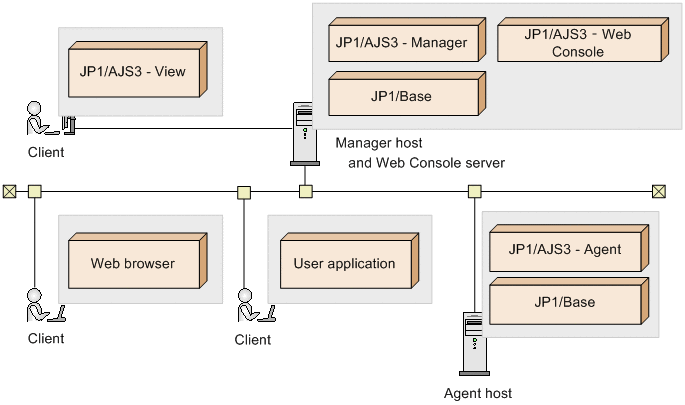

Figure 2‒10: Example of a system configuration in which the Web Console server and the manager host run on the same host

To Page Top

(2) The Web Console server and the manager host run on different hosts

In this configuration, JP1/AJS3 - Manager and JP1/AJS3 - Web Console are installed on separate hosts.

The Web GUI or a user application can be used as a client along with JP1/AJS3 - View.

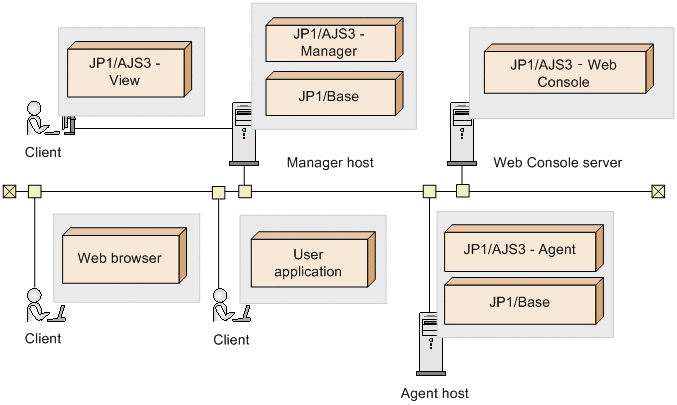

Figure 2‒11: Example of a system configuration in which the Web Console server and the manager host run on different hosts

To Page Top

(3) The Web Console server is placed in the DMZ

Consider placing the Web Console server in the DMZ when the Web GUI or a user application is connected via the Internet using HTTP. This enables a more secure system configuration.

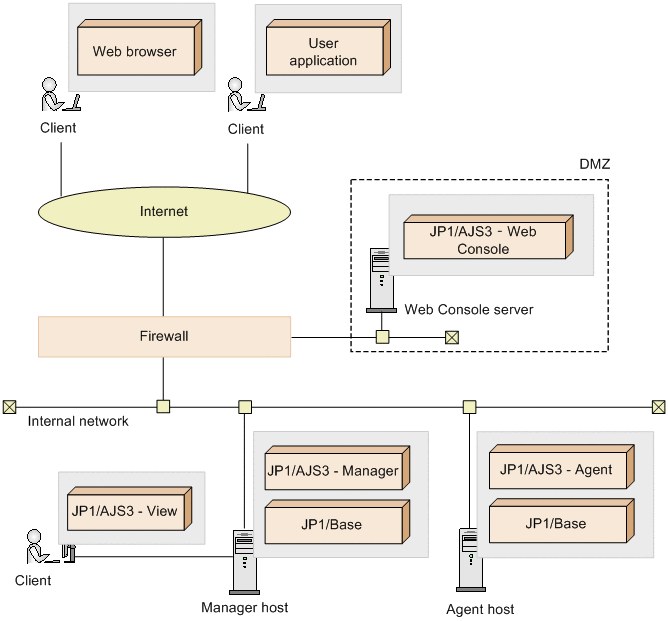

Figure 2‒12: Example 1 of a system configuration in which the Web Console server is placed in the DMZ

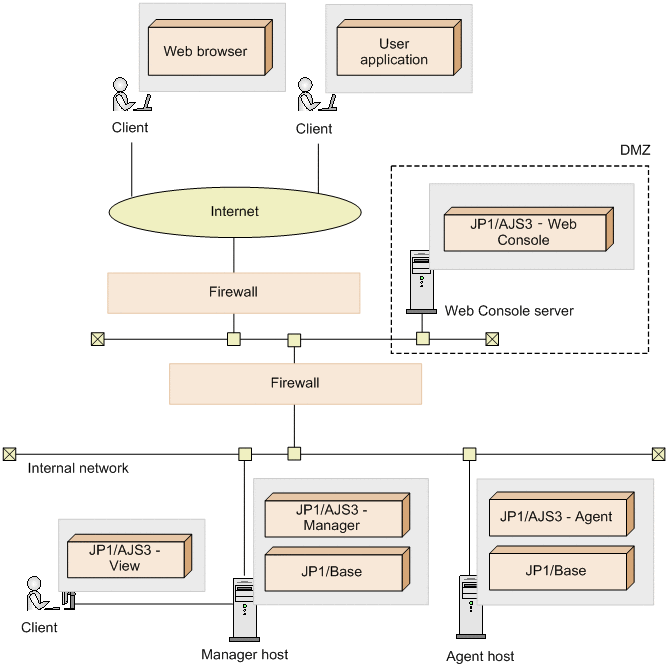

Figure 2‒13: Example 2 of a system configuration in which the Web Console server is placed in the DMZ
