4.4.1 Defining calendar information for a job group

Define calendar information including the open days (weekdays) and closed days (holidays and national holidays) for a job group. The following describes how to set the information for a year.

Prerequisites

Define a job group.

Procedure

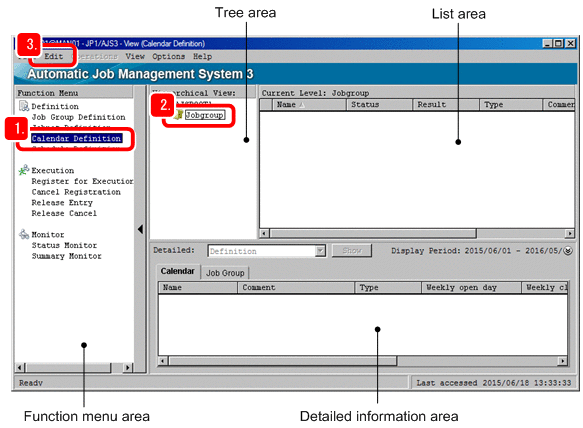

1. In the JP1/AJS3 - View window (Main window), in function menu area, select Calendar Definition.



2. In the tree area, select the job group.

3. Select Edit and then Calendar.

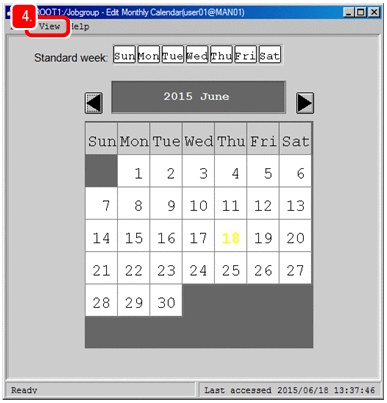

   The Edit Monthly Calendar window showing the calendar of the current month appears.

4. Select View and then Edit Annual Calendar.

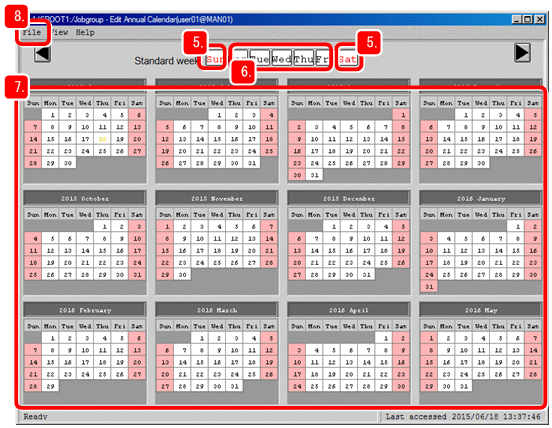

   The Edit Annual Calendar window appears.

5. For Standard week, click Sun and then Sat.



   All Sundays and Saturdays become light red, and the closed days are set.

   Tip

   Each time you click a day of the week for Standard week, the color of that day changes to light red, light blue, and then white. Light blue indicates an open day, and white indicates that nothing is set.

6. For Standard week, double-click each day, from Mon to Fri.

   All weekdays (Mondays to Fridays) become light blue, and the open days are set.

7. Click a calendar date you want to define as a closed day in addition to Saturdays and Sundays.

   The clicked calendar date becomes red, and the closed day is set.

8. Select File and then Close.

   A message asking whether you want to save the information appears.

9. Click the Yes button.

   The calendar information is set, and then you are returned to the JP1/AJS3 - View window (Main window).

Result

The calendar information is set for the job group.

Postrequisites

Define schedule rules for a jobnet.

Related topics

• 4.4.2 Defining schedule rules for a jobnet
