20. Management Information Details
20.1 Organization of classes
20.1.3 Relationships between classes

20.1.3 Relationships between classes

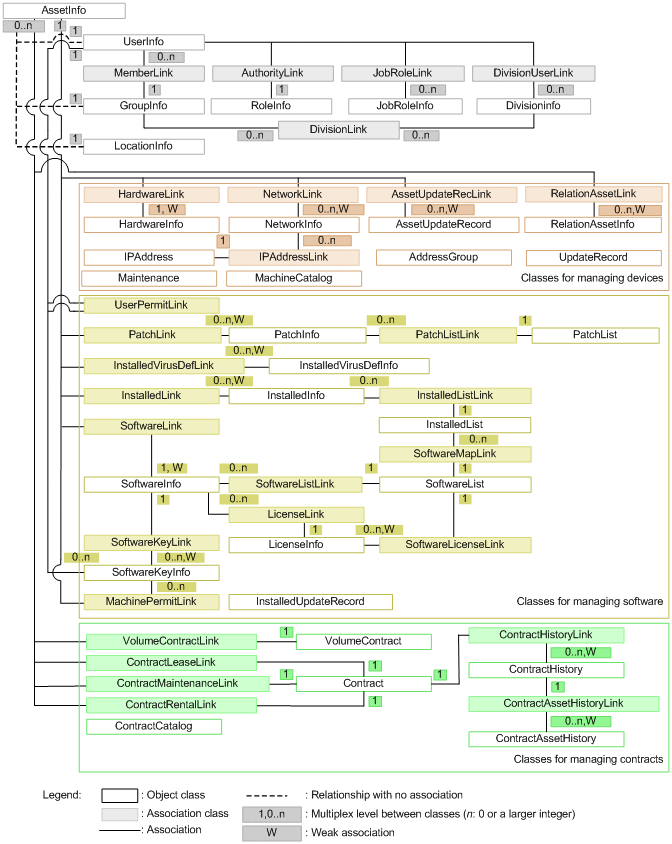

The following figure shows the relationships between object classes and the association classes that represent the relationships between classes:

Figure 20‒1: Relationships between classes
