19.2.2 Setting the user extension area of the problem status change event

You can set managed items in the user extension area of the problem status change event and add the description of the report to be sent when the problem status changes.

Define the managed items to be set in the user extension area in the event attribute composition file (eventmap.ini).

The storage destination of the event attribute composition file and the method of setting the managed items are described below.

• Storage destination for the event attribute composition file

  Asset-Console-installation-folder\env

  For use as a reference when creating an event attribute composition file, a sample file (eventmap.ini.org) that describes the default content of the event attribute composition file is provided in the aforementioned storage destination. Create an event attribute composition file by referencing this sample.

• Managed item specification method

  The following is the procedure for setting managed items by using the sample file (eventmap.ini.org) for an event attribute composition file:

  1. Use a text editor to open eventmap.ini.org.

  2. Describe in U12 to U31 the managed items to report, using the class.property format.

     The only type of problem status change event you can define is the managed item in the maintenance history (Maintenance). If you define an item other than the managed item in the maintenance history, an error occurs during event issuance, and the event cannot be issued.

  3. Change the file name to eventmap.ini and save it in Asset-Information-Manager-installation-folder\env.

     The content to be reported in the problem status change event has now been set.

The figure below shows the content of the eventmap.ini.org file.

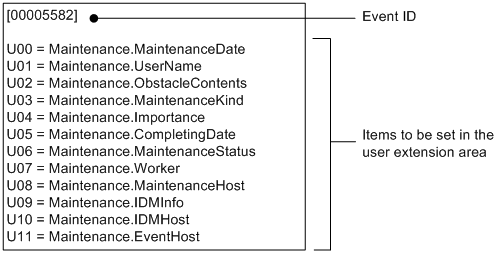

Figure 19‒1: eventmap.ini.org file
