16.4.3 Assigning IP addresses to devices
To assign IP addresses to devices:
-
In the IP group search list in each tab, click the IP address range link.
The IP Address Management dialog box is displayed.
-
Click the link for the IP address that you want to assign to a device.
The IP Address Management - Asset Assignment dialog box is displayed.
-
If necessary, specify the search condition and click the Search button.
Devices matching the search condition are searched for among devices with no IP address assigned.
To cancel, click the Close button.
-
Select a device from the search result and then click the Assign button.
The IP address is assigned to the selected device.

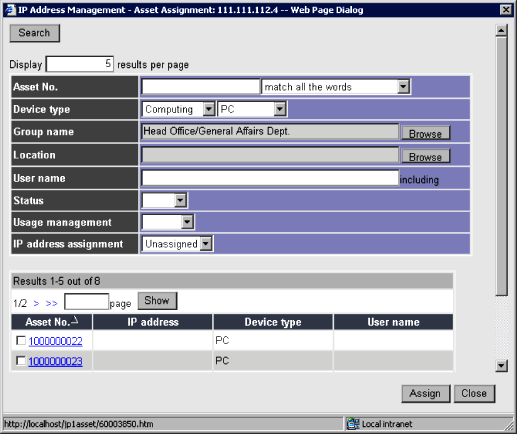

The following figure shows the IP Address Management - Asset Assignment dialog box with the devices searched.
