11.5.5 Setting the sort order and display width of the output items

On the Screen display information field, set the sort order and display width for the items that are displayed in the list of search results.

The following figure shows the Screen display information field.

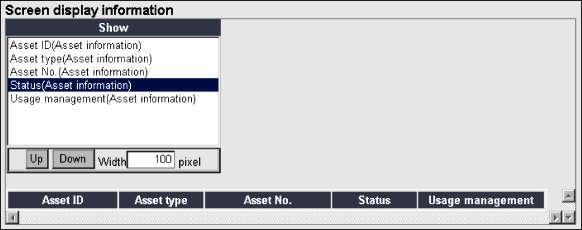

Figure 11‒28: Screen display information field

[Figure]

The items are listed from left to right in the order shown in the Show column. To change the sort order, select the item whose order is to be changed from the Show column and then click the Up or Down button.

To change the display width, select the item whose display width is to be changed from the Show column and then in the Width column, specify a numeric value from 0 to 999. The default is 150 pixels.
