6.2.7 System configuration in a cluster system

This subsection describes examples of cluster system configurations that support failover of Asset Console.

Set the higher connection destination as follows when you set up Asset Console programs:

http://logical-host-name-or-logical-IP-address/jp1asset/login.htm

You must also store the following files on a shared disk:

• DBMS database files

• Transaction log files

• Files under the asset management server's virtual directory

If the Asset Console service is set to use the failover facility in a cluster environment using cluster software, hardware problems and Asset Console service problems are automatically detected. Then the active server is automatically switched to the standby server.

You can set the asset management database server in the same cluster group, or you can use the asset management database server set in a different cluster group.

The following figure provides an example of a cluster system configuration.

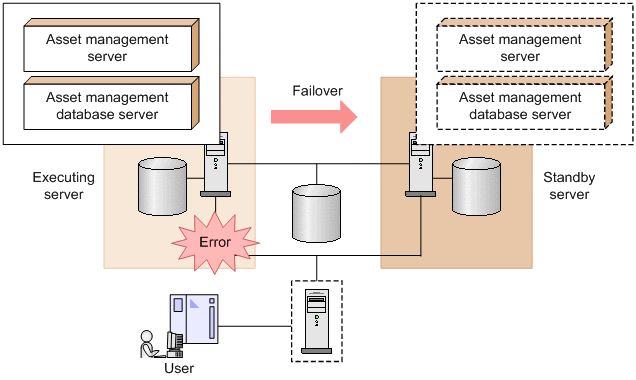

Figure 6‒10: Example of a cluster system configuration
