5.4 Installation in a cluster system
You can also install Asset Console in a cluster system that uses cluster software. A cluster system links multiple servers and runs them as a single system. If there is a problem on one of the systems, applications can be inherited by another server (this is called failover), which saves the entire system from being shut down.
Asset Console supports active-standby configuration, which is one of the operation modes for cluster systems. The active-standby configuration is a two-node cluster system in which one server is set as the executing system and the other as the standby system.

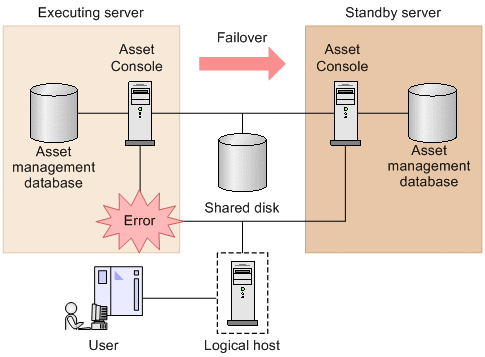

The following figure provides an overview of a cluster system that uses Asset Console.
|
Separately from the physical host name and IP address of the asset management server, a logical host name or logical IP address is used to connect to the logical server. This enables the user to establish connection without having to know which server is actually executing the processing.
The following OSs are supported as the OS required for the asset management server when a cluster system is established:
-
Microsoft Windows Server 2016 Datacenter
-
Microsoft Windows Server 2016 Standard
-
Microsoft Windows Server 2012 R2 Datacenter
-
Microsoft Windows Server 2012 R2 Standard
-
Microsoft Windows Server 2012 Datacenter
-
Microsoft Windows Server 2012 Standard
-
Microsoft Windows Server 2008 R2 Datacenter
-
Microsoft Windows Server 2008 R2 Enterprise
