16.6.2 Automatically generated flags
Operations on different windows that have the same caption are recorded in an AIT file as operations on the same window. In the generated AIT file, the following flags are used to script the operations on windows:
-
Window flag AITFLAGn (n: 1 or a greater integer)
-
Event flag AITEVENTFLAGn (n: 1 or a greater integer)
-
Invalid flag AITIGNORE
The following describes these flags.
- Organization of this subsection
(1) Window flag (AITFLAG1n)

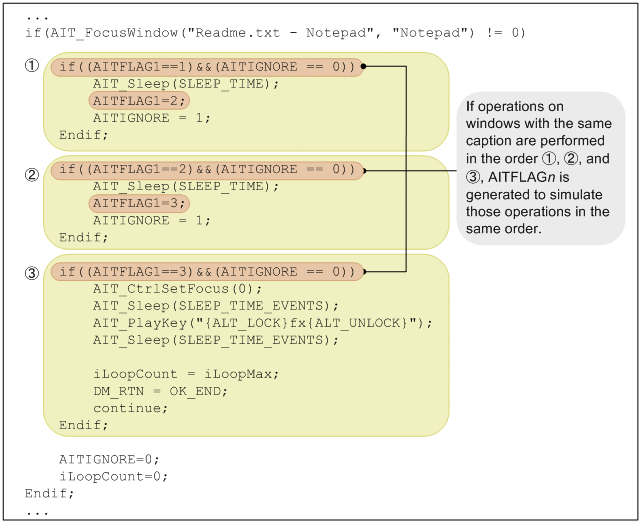

Window flags specify the order in which windows will be displayed. The following figure gives an example of generated window flags.
