3.3.1 Registering auto-start programs
The following features characterize auto-start programs:
-
You can register different programs to start in the event of normal termination and abnormal termination of transmission.
-
The time at which a specified program starts depends on how the transmission file is specified:
- file-name is specified
-
The program starts when the specified file is transmitted.
- directory-name is specified
-
The program starts when a file is transmitted to the specified directory.
-
An auto-start program is executed when transmission is completed for the registered user. To register an auto-start program for all the registered users rather than for a specific user, specify .default in User name.
The following table lists and describes each item in the auto-start program.
Item |
Setting |
---|---|
User name |
Specifies a user name for registering an auto-start program. This item is mandatory. The following users can be registered in auto-start programs:
|
File name/Directory name ((1 to 256-byte character string)) |
Specifies the name of the file or directory that is to be subject to automatic start. If you specify a file, specify its full path or only the file name. If you specify a directory, specify its full path. For the path of a file name, specify the real path, not a path that includes a symbolic link. This item is mandatory. |
Program to start when transmission ends normally Program to start when transmission ends abnormally ((2 to 256-byte character string)) |
Specifies the program to start when transmission terminates normally and/or when transmission terminates abnormally. For the name of a program to start, specify its full path. When the program starts, transmission information can be passed as arguments. For details, see Parameter keywords. |
- Priority of program start
-

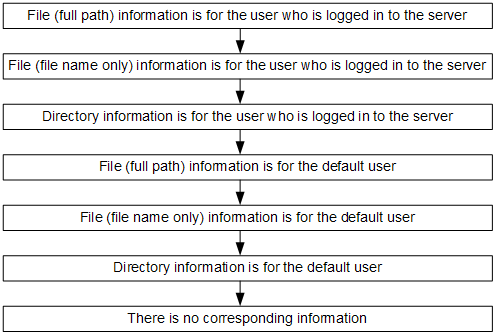

If multiple auto-start programs have been registered, the start condition (file name or directory name) might be applicable to more than one of the programs. In such a case, JP1/FTP searches the programs based on the priority order described below and starts only the first program that satisfies a priority condition. The following figure shows the priorities.
Figure 3‒1: Priority of starting auto-start programs - Note about the specification of "Program to start when transmission ends normally" and "Program to start when transmission ends abnormally"
-
If an argument contains the character \, be aware that some programs might interpret this character as an escape symbol.
- Parameter keywords
-
You can pass all the transmission-end information items to the user program by specifying a keyword in the auto-start program. You can also use keywords to pass specific transmission-end information items. The following table lists and describes the keywords.
Table 3‒4: List of parameter keywords Parameter keyword
Information that is output
Client
Server
ALL
All items
Y
Y
TRNO
Transmission number
Y
Y
TCNO
Connection number
Y
Y
CARD
Card name
Y
--
HOST
Connection-target host name or IP address
Y
--
Connecting client's IP address
--
Y
PORT
Connection-target host's port number
Y
--
USER
Login user name
Y
Y
TRTP
- Transmission mode:
-
1: ASCII
2: Binary
Y
Y
TRCM
- Transmission command:
-
1: Send
2: Receive
3: Append
Y
Y
COMP
- Compression mode:
-
1: Stream
2: Compress
Y
Y
LCFN
Local file name
Y
Y
RMFN
Remote file name
Y
--
STTM
Transmission start time (return value of time())
Y
Y
SPTM
Transmission end time (return value of time())
Y
Y
TRSZ
Transmission data size (bytes)
Y
Y
CMNT
Comment
Y
--
TRST
- Transmission end status:
-
1: Success
2: Failure
Y
Y
ERKD
- Error type:
-
1: System call error
2: Logical error
3: Protocol error
4: Termination error
Y
Y
SYCN
System call name
Y
Y
ERNO
Error number
Y
Y
PLMG
Protocol message
Y
--
- About keyword specification
-
If any keyword other than the ones shown in the table above or an invalid keyword is specified, the specified keyword is passed to the user program.
- Example of argument specification
-
The following shows an example of specifying arguments when the ftsautoma command is used to register auto-start programs. Specified values must be enclosed in double quotation marks ("").
Example:
"/users/accounting/PROC TRNO USER TRCM COMP TRSZ"
When the above arguments are specified, the user program is executed in the following format:
/users/accounting/PROC12accounting1230000 (: space)
-
Transmission connection number: 12
-
Login user name: accounting
-
Transmission command: Send
-
Compression mode: Compress
-
Transmission data size: 30,000 bytes
Information can be received as program arguments.
-
- Standard input/output
-
The standard input/output is closed. You can allocate the standard input/output to files. For details, see the JP1FTS_AUTO_STDIO environment variable listed in Table 3-2 in 3.1.3 Using environment variables to define a JP1/FTP environment.
- Environment for the process
-
The JP1/FTP daemon environment is used, not the environment that is set based on the profile of the login user.
- How to start programs when multiple files are transmitted
-
If a wildcard is used to transmit multiple files, an auto-start program is started as many times as there are file transmissions. Information is inherited to the auto-start program separately for each transmission. The transmission information cannot all be inherited to the auto-start program at once.
The following figure shows an example of a command for registering auto-start programs:
This command registers the following information:
-
The target is a file (file).
-
The user name is accounting.
-
The file/directory name is file1.
-
-AS: The name of the program to start when transmission ends normally is /home/accounting/normal.sh.
-
-AF: The name of the program to start when transmission ends normally is /home/accounting/abnormal.sh.
For details about the ftsautoma command, see ftsautoma - registers, deletes, and displays auto-start programs in 6. Commands.
