2.3.3 Setting the port numbers
The following shows the file to use for setting the port numbers and the port number settings.
- File used for setting the port numbers
/etc/services
- Settings
ftssdata aaaaa-1/tcp #Used by the JP1/FTP daemon during data transmission ftss aaaaa/tcp #Used by the server during reception ftsc bbbbb/tcp #Used by the client ftsagent ccccc/tcp #Used by the Operations-Manager function
- Legend:
-
aaaaa, bbbbb, ccccc: Unique port numbers. Each must be different from any port numbers used by any other programs.
-
aaaaa-1 can be set automatically, but we recommend that you specify the number explicitly, as shown above.
-
If you specify a port number that is within the range of port numbers automatically assigned by the OS, it is assigned by the OS when JP1/FTP or another program is running. This might result in redundant assignment.
- Example of setting port numbers
ftssdata 20124/tcp #Used by the JP1/FTP daemon during data transmission ftss 20125/tcp #Used by the server during reception ftsc 20126/tcp #Used by the client ftsagent 20252/tcp #Used for the Operations-Manager function (agent)
A sample file is provided in /var/opt/jp1_fts/sys/services.model.
- Specification during transmission
-
To use JP1/FTP at the server, the client must specify the port number that was assigned to ftss during file transmission (in the above example, 20125).
- When transmitting files from the OS's default FTP to JP1/FTP
-
If JP1/FTP is at the server and the OS's default FTP is used at the client to transmit files, the port specifications are as shown below.

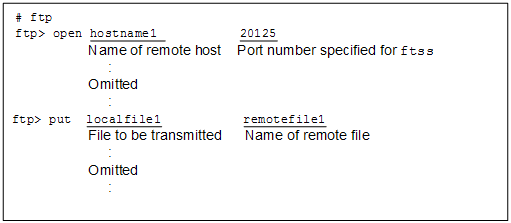

Figure 2‒2: Example of file transmission from the OS's default FTP to JP1/FTP
