1.3.1 Registering JP1/FTP definition information

The following definition information must be registered:

• Environment definition information

• Transmission execution information (auto-start program information, transmission information, and login user information)

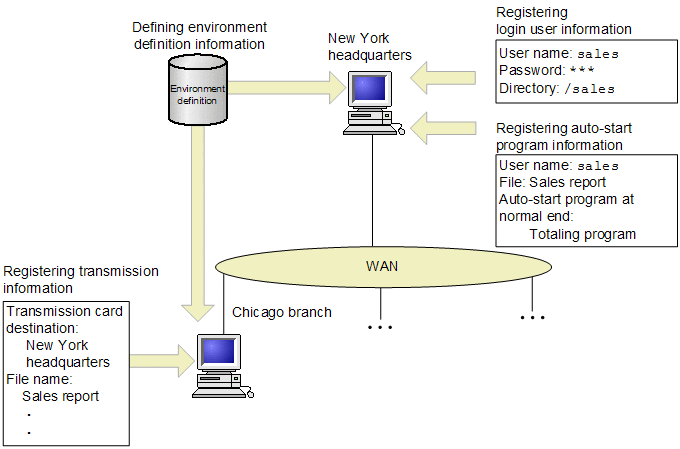

  Figure 1‒3: Example of registering definition information

  Type of information	Overview of operation	Executing host	Commands that are used
  Environment definition information	Defining environment definition information: Defines a JP1/FTP environment, such as the buffer size during transmission and the log file size.	All hosts	ftsutil (see 3.1 Defining an environment for JP1/FTP and ftsutil - changes and displays environment information in 6. Commands)
  Transmission execution information	Registering login user information: Registers the users who are permitted to log in to the server during file transmission. In the example, a user (sales) who logs in to the New York headquarters from the Chicago branch is registered.	Server	passwd (see 3.2 Registering the users who can log in to a JP1/FTP server)
  	Registering auto-start program information: Registers programs that are started automatically at the server when file transmission is completed. The example registers at the New York headquarters that the Totaling program is to be started when a Sales report file is received from sales.	Server	ftsautoma (see 3.3 Registering auto-start programs and ftsautoma - registers, deletes, and displays auto-start programs in 6. Commands)
  	Registering transmission information: Registers in transmission cards the information to be transmitted (such as remote host names and transmission file names). In this example, information about file transmission from the Chicago branch to the New York headquarters is registered.	Client	ftsregc (see 3.4 Registering transmission information and ftsregc - registers, changes, deletes, and displays transmission information in 6. Commands)
