3.5.2 Output example of the job execution log (when the spool job of a child job is merged to the spool job of the root job)
The following is an output example of the job execution log when MERGE is specified for the environment setting parameter SPOOLJOB_CHILDJOB (when the spool job of a child job is merged to the spool job of the root job).
- Organization of this subsection
(1) Example 1 (defining ch1.sh and ch2.sh)
As shown below, this example defines the child job ch1.sh, which is to start from the root job, and the child job ch2.sh, which is to start from a job step of the root job.
![[Figure]](GRAPHICS/F0000074.GIF)
The following describes the configuration and provides an output example of the job execution log of the root job that is output to the standard error output.
(a) Configuration of the job execution log

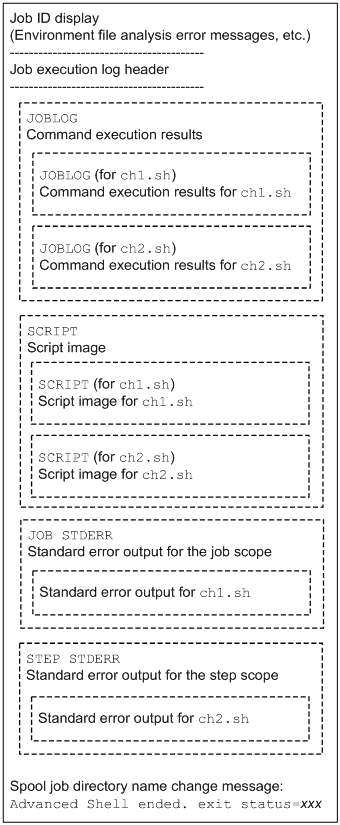

The following describes the configuration of the job execution log and the output locations of the execution results of child jobs ch1.sh and ch2.sh. The execution results of the child jobs are output to JOBLOG and SCRIPT.
![[Figure]](GRAPHICS/F0000090.GIF)
(b) Output example of the job execution log

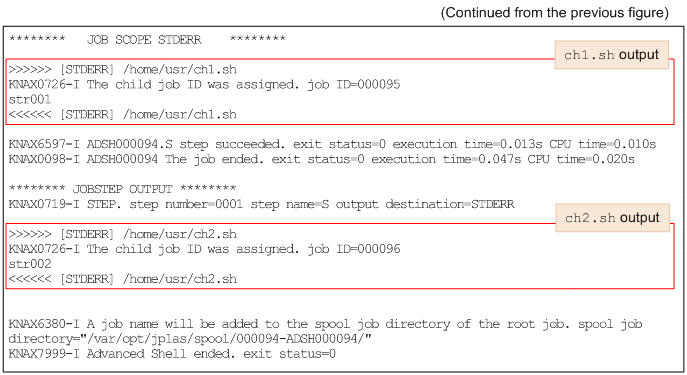

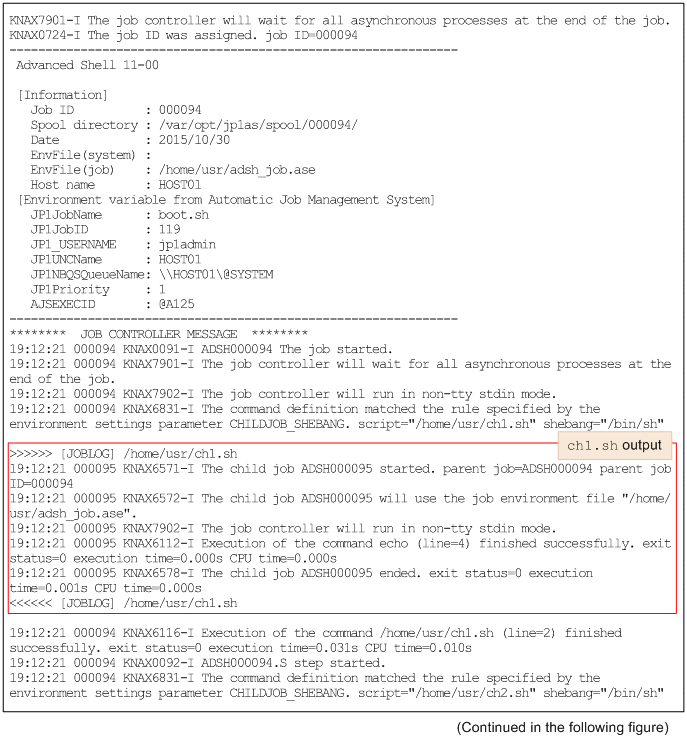

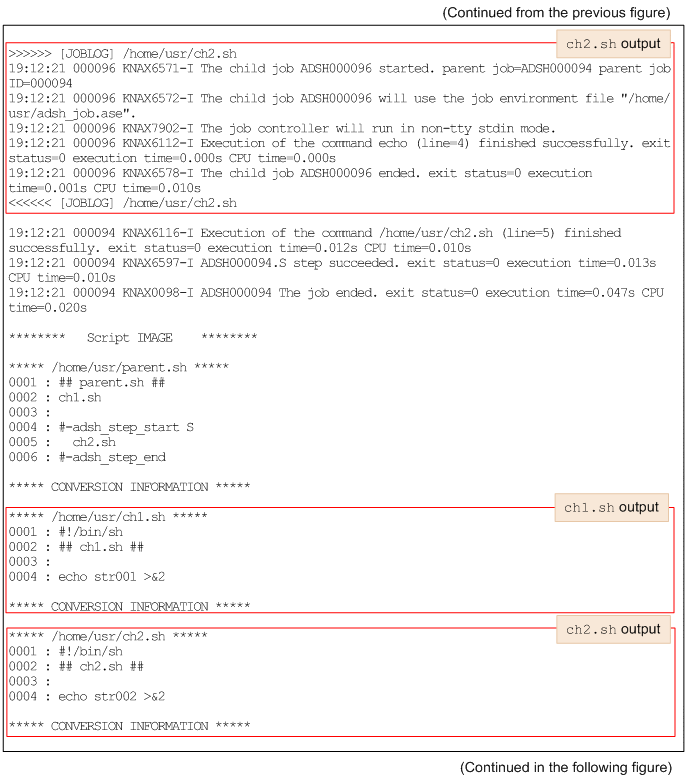

The following is an output example of the job execution log.
![[Figure]](GRAPHICS/F0000089.GIF)
![[Figure]](GRAPHICS/F0000034.GIF)
![[Figure]](GRAPHICS/F0000152.GIF)
(2) Example 2 (defining child1.sh, child2.sh, and grandchild.sh)
As shown below, this example defines child jobs child1.sh and child2.sh, and the job grandchild.sh, which starts from the child job child2.sh.
![[Figure]](GRAPHICS/F0000088.GIF)
The following describes the configuration and provides an output example of the job execution log of the root job that is output to the standard error output.
(a) Configuration of the job execution log
The following describes the configuration of the job execution log and the output locations of the execution results of child jobs child1.sh, child2.sh, and grandchild.sh. The execution results of the child jobs are output to JOBLOG and SCRIPT.
-

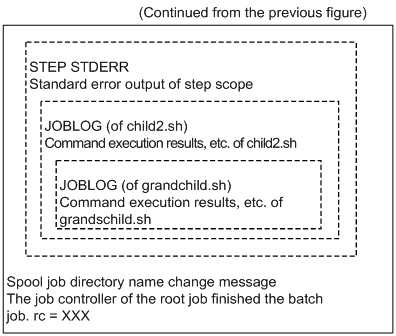

Job execution log that can be referred from JP1/AJS
![[Figure]](GRAPHICS/F0000068.GIF)
![[Figure]](GRAPHICS/F0000007.GIF)
-

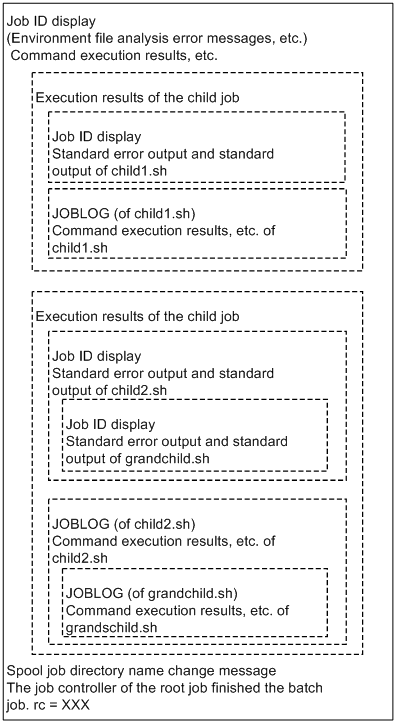

Job execution log when debugging
![[Figure]](GRAPHICS/F0000097.GIF)
(b) Output example of the job execution log
The following is an output example of the job execution log.
-

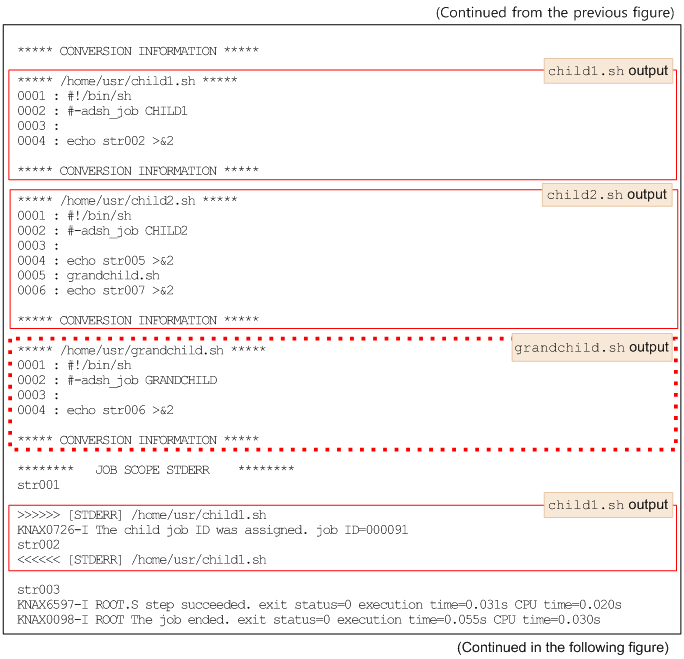

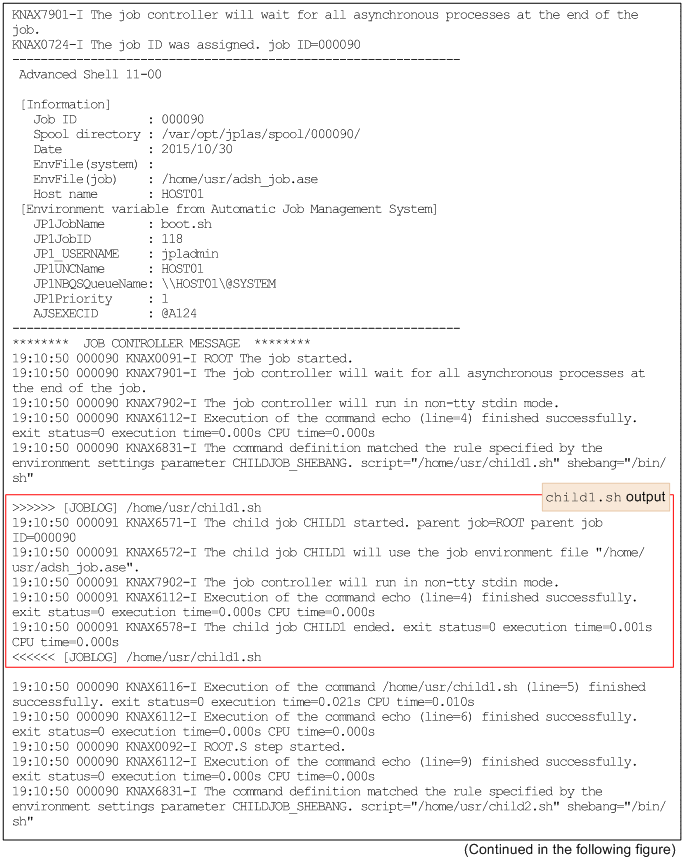

Job execution log that can be referred from JP1/AJS
![[Figure]](GRAPHICS/F0000133.GIF)
![[Figure]](GRAPHICS/F0000110.GIF)
![[Figure]](GRAPHICS/F0000134.GIF)
![[Figure]](GRAPHICS/F0000012.GIF)
-

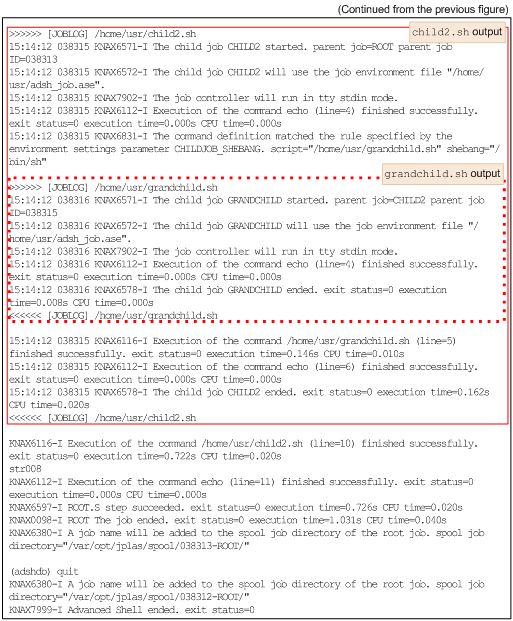

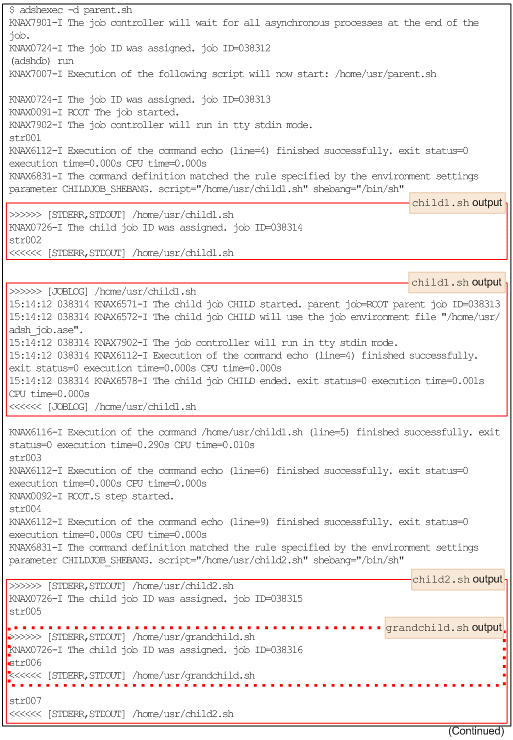

Job execution log when debugging
![[Figure]](GRAPHICS/F0000126.GIF)
![[Figure]](GRAPHICS/F0000011.GIF)
