7.19.4 Displayed items of the Map tab

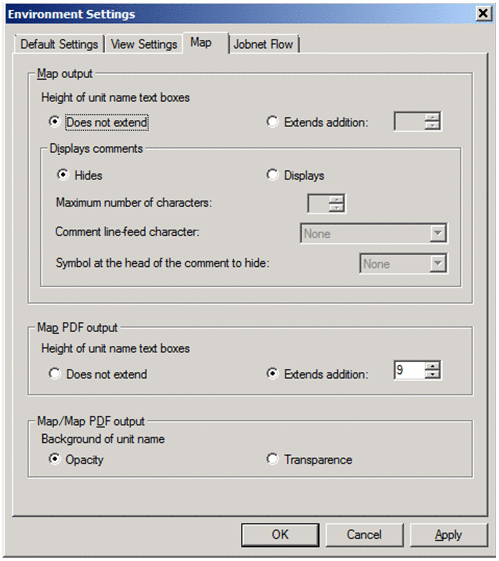

On the Map tab, you can perform display settings for map output.
|
- Map output
-
Select whether to extend the size of the unit name display area. If the unit name is not displayed fully in the print and print preview, select Extends. If you select Extends, the height of the unit name display area is increased for the size specified. The default is Does not extend.
If you select Extends, specify a number (unit: point) in the addition box, from 9 to 30 with up to one decimal point. If you specify a number with two or more decimal points, the second decimal point and thereafter are discarded.
- Displays comments
-
Select whether to display comments under unit names. If you want to display them, select Displays. The default is Hides.
When you select Displays, set the following items:
-
Maximum number of characters
Specify the length of a comment by the number from 1 through 80, starting from the beginning of the comment. The default is 30.
-
Comment line-feed location:
Line breaks are added right after the specified line-feed character when comments are displayed. The possible options are: None; " " (space); , (comma); . (period); - (hyphen); : (colon); and ; (semicolon).
When None is selected, no line-feed character is added in the comment. When " " (space) is selected, line-feed characters are added right after double-byte or single-byte space characters. When one of the other symbols is selected, they are added right after the selected single-byte characters. The default is None.
-
Symbol at the head of the comment to hide:
When a comment begins with the specified symbol, the comment for the unit is not displayed. The possible options are: None, #, @, % (percent), &, and *.
When None is selected, all comments are displayed. The default is None.
-
- Map PDF output
-
Select whether to extend the size of the unit name display area. If the unit name is not displayed fully in the print and print preview, select Extends. If you select Extends, the height of the unit name display area is increased for the size specified. The default is Extends addition.
If you select Extends, specify a number (unit: point) in the addition box, from 9 to 30 with up to one decimal point. If you specify a number with two or more decimal points, the second and thereafter are discarded. The default is 9.
- Map/Map PDF output
-
Select whether to make the unit name background transparent or not. If the arrow is hidden by the unit name background, select Transparence. The default is Opacity.
