6.10.2 Outputting definitions to a PDF file in jobnet flow format
The following describes how to output jobnet definitions to a PDF file in jobnet flow format.
- Notes:
-
-
You can perform jobnet flow PDF output in an environment Microsoft Excel 2010 or later installed.
-
If you specify a subfolder of an installation folder such as C:\Program Files as the output destination for the PDF file, the file is redirected to a virtual folder.
-
If the jobnet definition contains a large number of jobs, the system might take a long time to convert the information to a PDF file. In this situation, consider splitting the data across two or more files.
-
-
In the unit tree in the Job Operation Document Output window, select the jobnet whose definition information you want to print.
-
From the File menu, choose Jobnet Flow PDF Output.
The Jobnet Flow PDF Output window appears.
Figure 6‒45: Jobnet Flow PDF Output window -
Change the value in Saved PDF file if needed.
-
Click Start.
A PDF file is output to the destination specified in Saved PDF file.

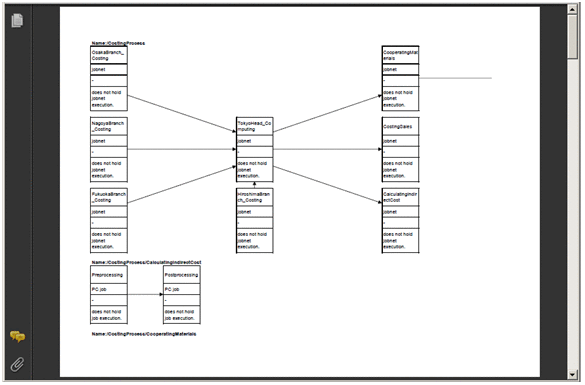

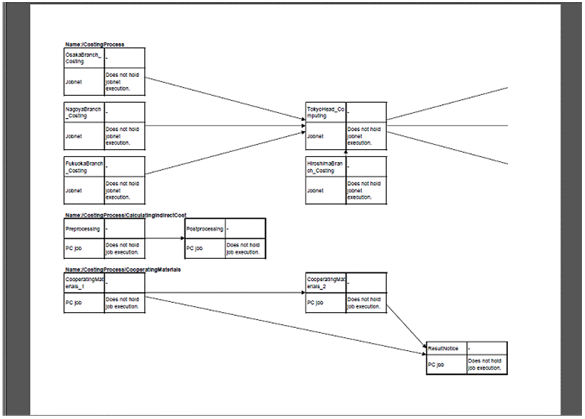

Figure 6‒46: Example of PDF file output (When the data layout has one column) Figure 6‒47: PDF file output example (When the data layout has two columns) -
Use the print functionality of your PDF viewer to print the jobnet definition.
