5.5 Example of a schedule information parameter
This subsection gives an example of a schedule information parameter to define a schedule for a jobnet which meets the conditions below.

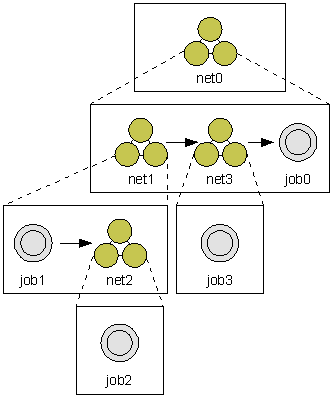

The following shows the configuration of the units.
The following table covers schedules to be defined.
Unit |
Execution start time |
Hold attribute for execution |
---|---|---|
net0 |
20XX/12/1 12:00 |
Hold |
net1 |
20XX/12/1 12:00 |
Not hold |
job1 |
Execute |
Not hold |
net2 |
20XX/12/1 14:00 |
Not hold |
job2 |
Execute |
Not hold |
net3 |
20XX/12/1 13:00 |
Hold |
job3 |
Not execute |
N/A |
job0 |
Execute |
Not hold |
- Legend:
-
N/A: Not applicable

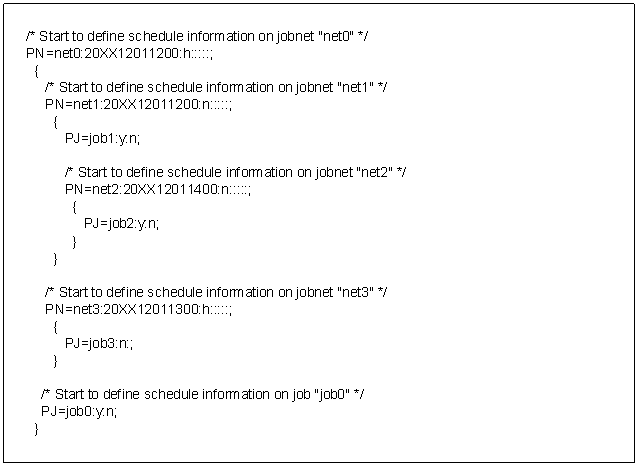

The following gives an example of description.
