5.3.2 Example of defining a jobnet

This example covers definition of a jobnet which meets the following conditions:

• One jobnet is defined.

• The jobnet name is net.

• The unit attributes are owner: update, group: operations and others: reference.

• The start time of jobnet execution is 13:00 on June 30, 20XX.

• The jobnet is executed every day.

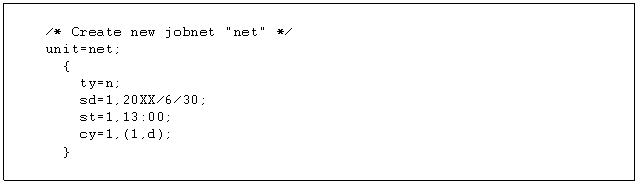

The following gives an example of definition.
