A.14 Detail Information dialog box

In the Detail Information dialog box, you can check the execution status and the details about the execution result of a selected unit in the Monitor dialog box.

The following figure shows the Detail Information dialog box

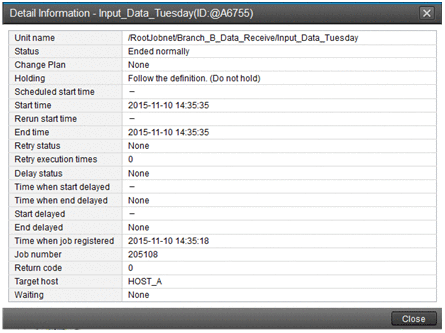

Figure A‒14: Detail Information dialog box

If the selected unit is a PC job or a Unix job, the Refer Def button is displayed. Clicking this button opens the Define Details dialog box, which can be used to edit job definitions.

Note that if JP1/AJS3 is set up to link with JP1/PFM, the Open PFM Report button appears at the bottom of the Define Details dialog box. Clicking this button opens the PFM - Web Console window. This window can be used to examine the cause of a problem with a JP1/AJS3 job that occurred due to system performance, or to display a report containing performance information about the manager host.

The Open PFM Report button appears if the selected unit is a job (other than a QUEUE job, jobnet connector, OR job, judgment job, or passing information setting job). You can display a report only when execution of the selected job has started and the execution host has been determined.

For details about the setup for linkage with JP1/PFM, see 13. Linking JP1/PFM in the JP1/Automatic Job Management System 3 Linkage Guide.

For details about the PFM - Web Console window, see the manual JP1/Performance Management Reference.
