A.3 Logging in and out from a web browser

(1) Logging in

To monitor and work with units in the Web GUI, you need to log in to JP1/AJS3 - Manager from your web browser.

To log in from your web browser:

1. In the address bar of your web browser, enter the URL of the Login screen for JP1/AJS3 - Web Console.

   http://host-name-or-IP-address-of-Web-Console-server:port-number/ajs/login.html

   The default port number is 22252 for HTTP connections and 22253 for HTTPS connections.

   Prefix the URL with https if you have SSL enabled and wish to connect using HTTPS.

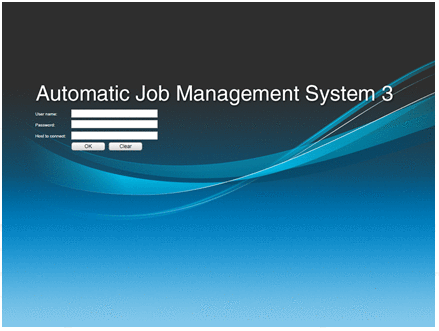

   The Login screen appears.



2. Enter information in the User name, Password, and Host to connect fields, and then click OK.

   In the User name and Password fields, specify the user name and password of the JP1 user who is to log in.

   In the Host to connect field, specify the host name of the JP1/AJS3 - Manager host.

   If login is successful, the following window appears:

   If the Dashboard screen is set to be displayed initially and no units are set as monitoring targets:

   The Set Monitoring Targets dialog box appears. After you set units as monitoring targets in the Set Monitoring Targets dialog box, the Dashboard screen appears.

   If the Dashboard screen is set to be displayed initially and units are set as monitoring targets:

   The Dashboard screen appears.

   If the List screen is set to be displayed initially:

   The List screen appears.

Cautionary note

• If no request is issued to the Web Console server for 15 minutes after login, a session timeout occurs, and the login is canceled.

• If you use the Web GUI for a long time, restart the Web browser once a day. The KNAK2416-Q message appears after the Web GUI has been used for 25 hours.

To Page Top

(2) Logging out

To log out from JP1/AJS3 - Manager, click the Log Out button on the Dashboard or List screen. When you have logged out, the Login screen appears.
